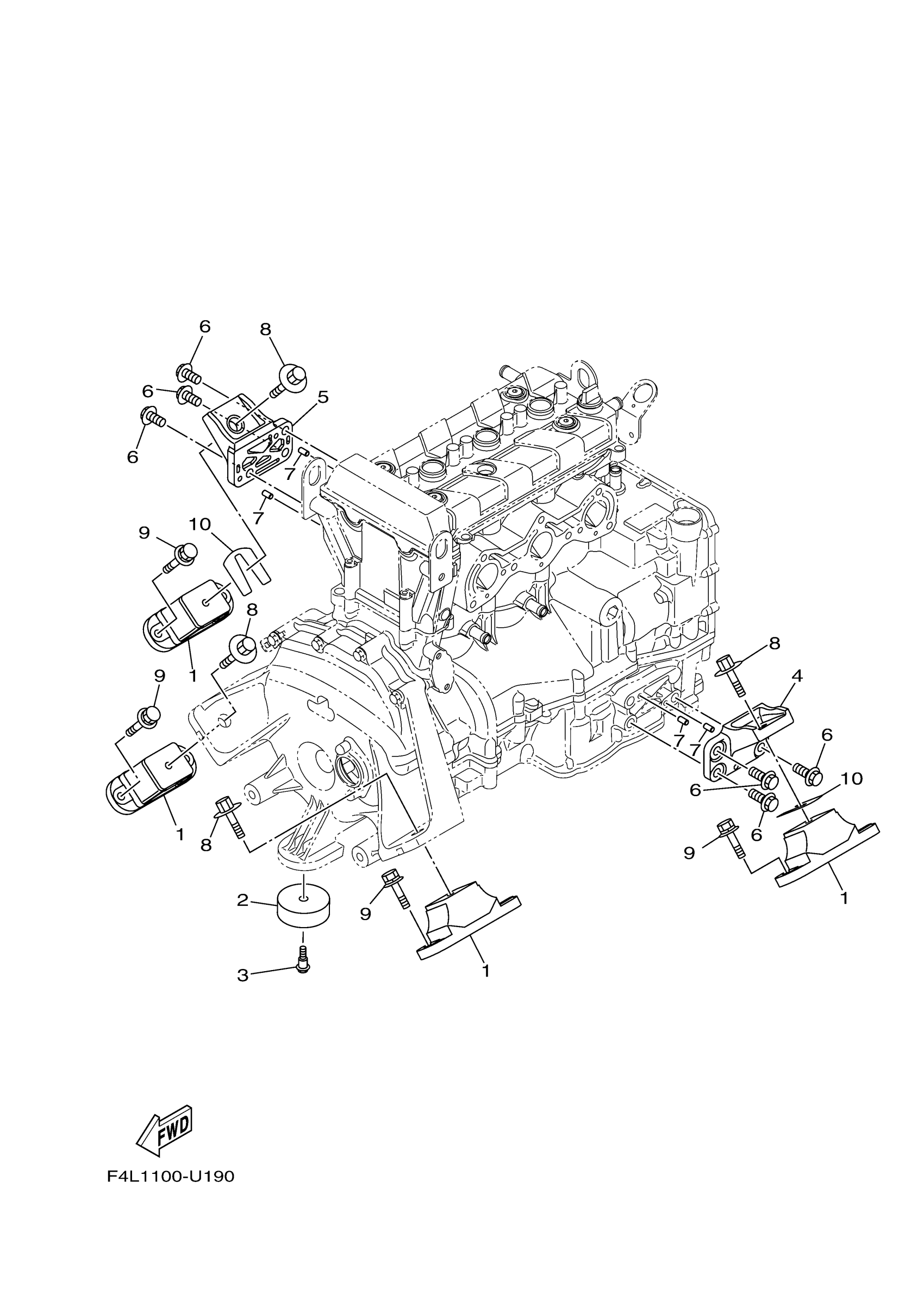

Yamaha ER1050V (EXR) F4L2 2020 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

67X-44517-10-00

$101.50

2

STOPPER, LOWER MOUNT RUBBER

6EY-44574-00-00

$11.99

3

BOLT

90109-06M92-00

$5.03

4

BRACKET 1

6EY-41661-10-00

$46.49

5

BRACKET 2

6EY-41662-00-00

$46.49

6

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

BOLT, WITH WASHER

90119-08860-00

$3.88

9

BOLT, WITH WASHER

90119-08829-00

$3.88

10

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

10

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

10

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

10

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

10

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
