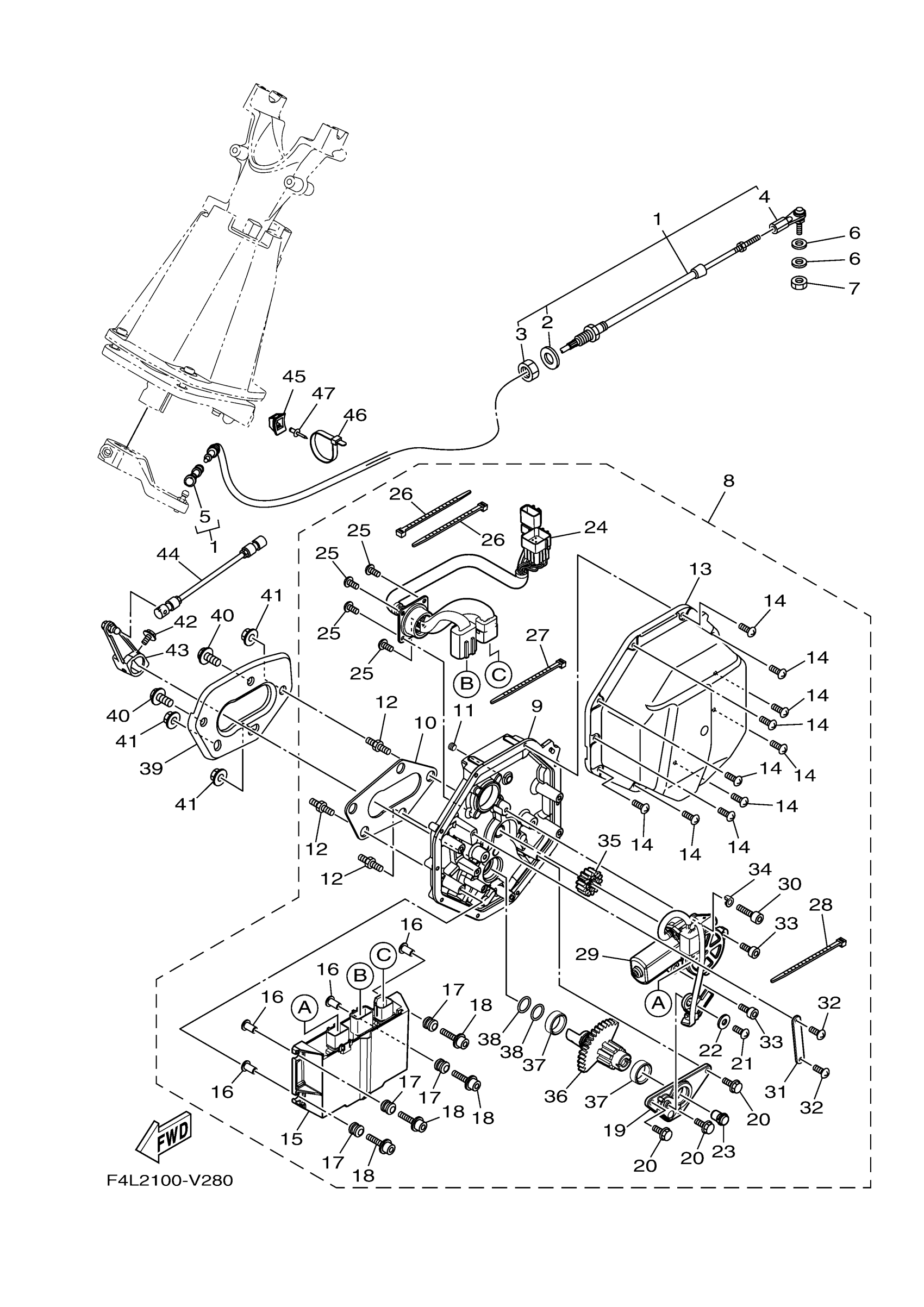

Yamaha ER1050V (EXR) F4L2 2020 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F4L-61481-02-00

$220.57

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$82.07

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.04

6

WASHER, PLATE

90201-06906-00

$3.09

7

NUT

9538R-06700-00

$1.07

8

MOTOR ASSY.

F3Y-6140B-04-00

Unavailable

9

HOUSING

99999-04522-00

Unavailable

10

. SEAL

F3Y-63262-00-00

$16.90

11

. PLUG

F3J-613D0-00-00

$11.75

12

. BOLT, STUD

F3J-67369-00-00

$6.18

13

. COVER

F3Y-6143J-00-00

$51.46

14

. SCREW

F3Y-68198-00-00

$3.53

15

CONTROL UNIT

F3Y-68197-02-00

$617.63

16

. COLLAR

90387-06119-00

$3.96

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

18

. BOLT

F3J-613B4-20-00

$4.41

19

. PLATE

F3Y-61256-00-00

$30.87

20

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.41

21

. SCREW

F3J-68198-20-00

$3.53

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.79

23

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

24

. WIRE HARNESS ASSY

F3Y-68270-01-00

$327.93

25

. SCREW

F3J-68198-00-00

$3.03

26

. CLAMP, WIRE

F3J-68273-00-00

$3.09

27

. CLAMP, WIRE

F3J-68273-00-00

$3.09

28

. CLAMP, WIRE

F3J-68273-00-00

$3.09

29

. MOTOR

F3Y-68352-00-00

$196.45

30

. BOLT

F3J-613B4-00-00

$4.41

31

. PLATE

F3Y-61348-00-00

$4.41

32

. SCREW

F3J-68198-20-00

$3.53

33

. BOLT

F3J-613B4-10-00

$2.19

34

. SPACER

F3J-61492-00-00

$7.06

35

. ,GEAR 1

F3Y-60211-00-00

$98.51

36

SHAFT, 1

F3Y-60221-10-00

$20.51

37

. BUSH

F3Y-61344-00-00

$3.79

38

O-RING

F4P-613A5-00-00

$3.41

39

PLATE

F3Y-U8285-00-00

$14.69

40

BOLT, WITH WASHER

90119-08852-00

$4.01

41

NUT, LOCK

F3Y-U142L-00-00

$2.66

42

BOLT, WITH WASHER

90119-06894-00

$1.43

43

SHIFT ARM ASSY

F3Y-6150F-00-00

$50.15

44

ROD ASSY 2

F4L-6150D-00-00

$44.10

45

BASE, CLAMP

F1W-U828M-00-00

$1.29

46

CLAMP

90464-32801-00

$1.29

47

RIVET, BLIND

90267-489U6-00

Unavailable
