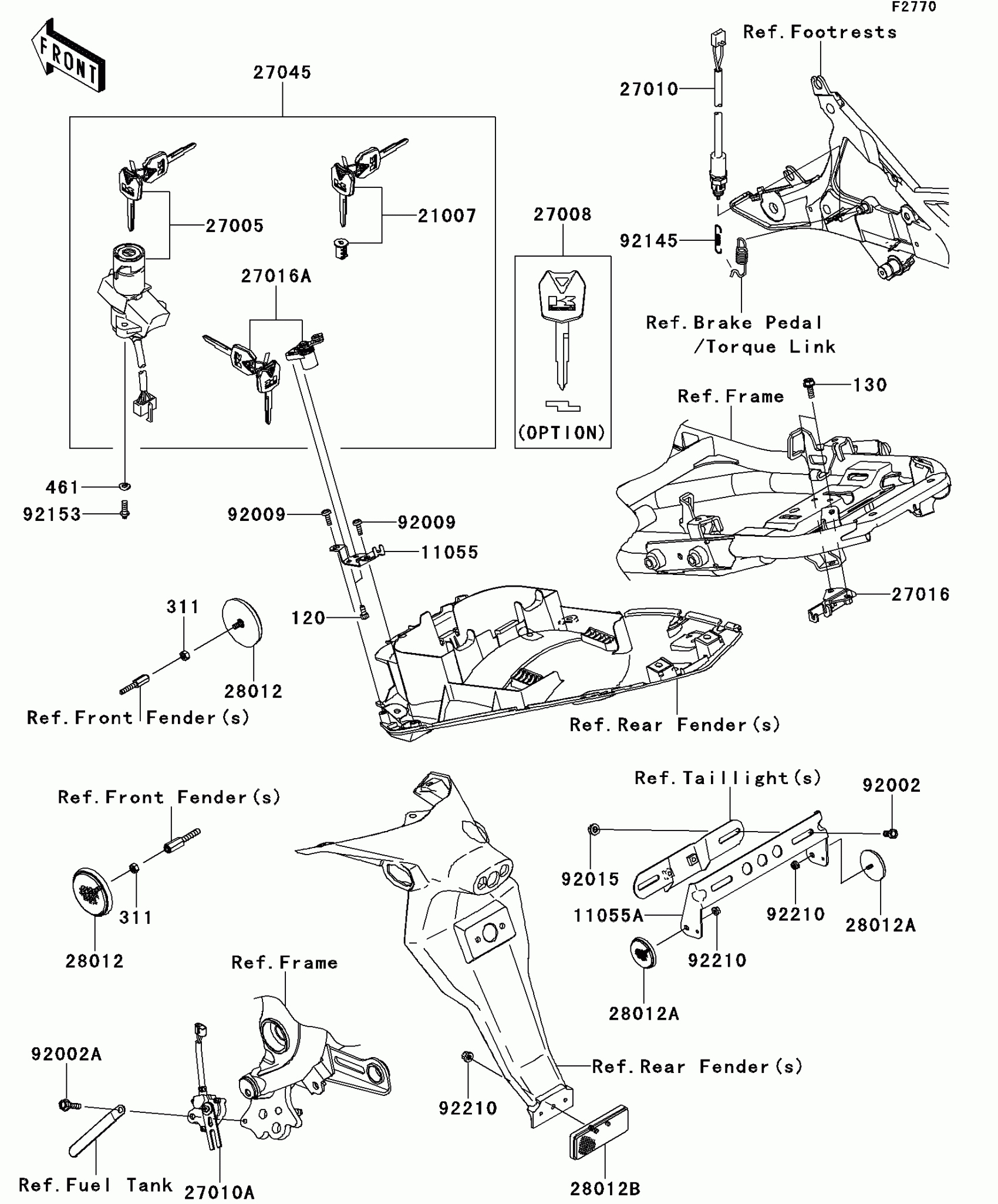

Kawasaki ER-6n Ignition Switch/Locks/Reflectors Diagram

Description

Price

11055

BRACKET,SEAT LOCK

11055-0590

$10.14

11055A

BRACKET,REFLECTOR

11055-1092

$33.99

21007

ROTOR,LOCK,TANK CAP

21007-5057

$86.34

27005

SWITCH-ASSY-IGNITION

27005-5141

$186.99

27008

KEY-LOCK,BLANK

27008-0030

$14.07

27010

SWITCH,REAR BRAKE

27010-0095

$29.30

27010A

SWITCH,SIDE STAND

27010-0097

$119.84

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5309

$88.67

27045

SWITCH-ASSY

27045-5360

$426.11

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-0002

$19.59

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

92002

BOLT,6X12

92002-1132

$1.14

92002A

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X14

92009-3845

$1.00

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92145

SPRING,REAR BRAKE SWITCH

92145-0724

Unavailable

92153

BOLT,TORX,6X16

92153-0967

$1.85

92210

NUT,FLANGED,5MM

92210-0007

$1.90

120

BOLT-SOCKET,5X12

120CB0512

$1.30

130

BOLT-FLANGED,6X12

130BA0612

$1.25

311

NUT-HEX,5MM

311AB0500

$0.46

461

WASHER-SPRING,6MM

461DA0600

$0.66
