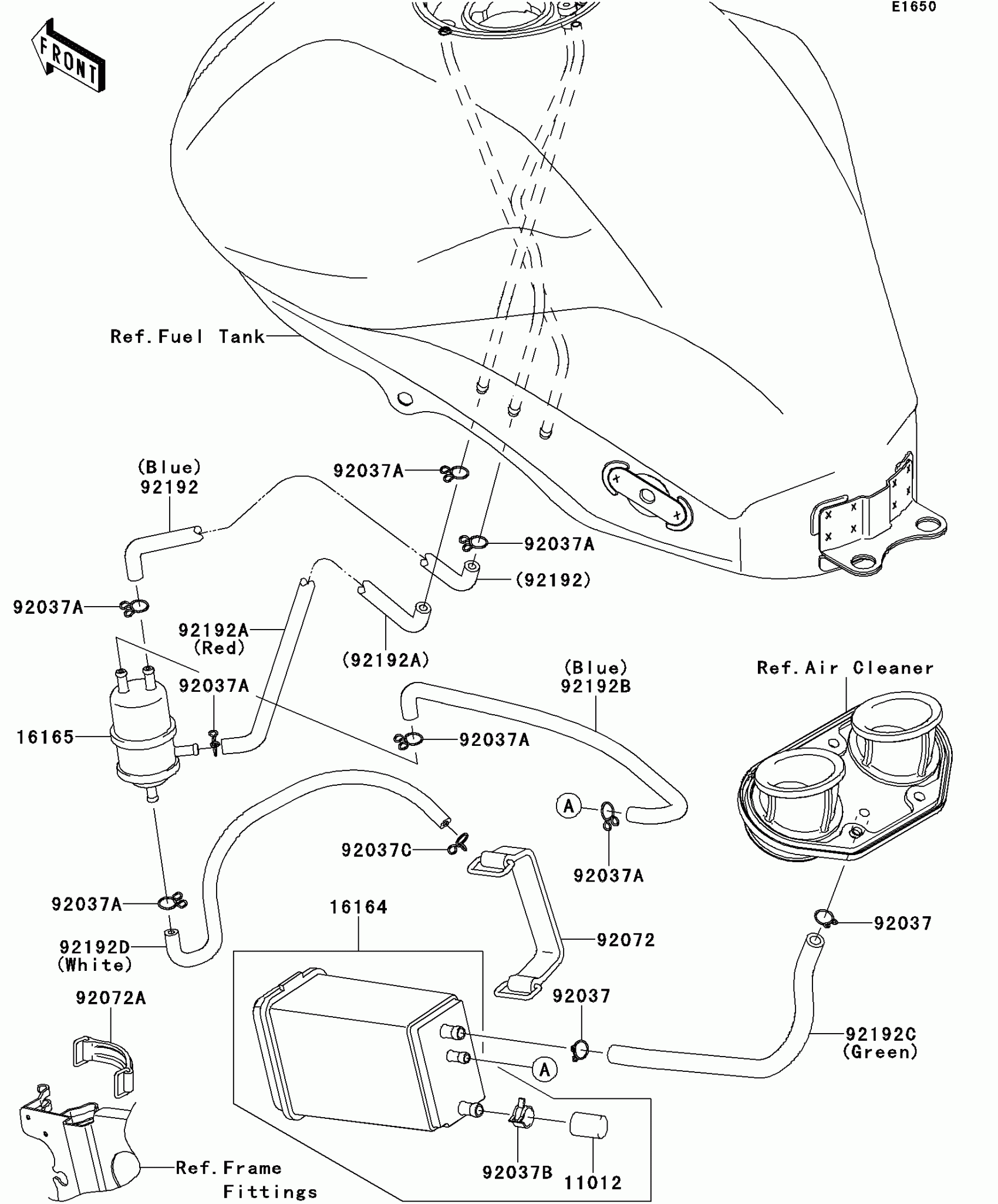

Kawasaki ER-6n Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$79.83

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.81

92072

BAND

92072-1384

$10.44

92072A

BAND,L=50

92072-1419

$12.21

92192

TUBE,SEPARATOR-TANK,BLUE

92192-0586

$51.09

92192A

TUBE,TANK-SEPARATOR,RED

92192-0717

$58.42

92192B

TUBE,CANISTER-SEPARATOR,BLUE

92192-0719

$92.07

92192C

TUBE,A/C-CANISTER,GREEN

92192-0720

$51.20

92192D

TUBE,SEPARATOR-THROBO,WHITE

92192-0721

$9.42
