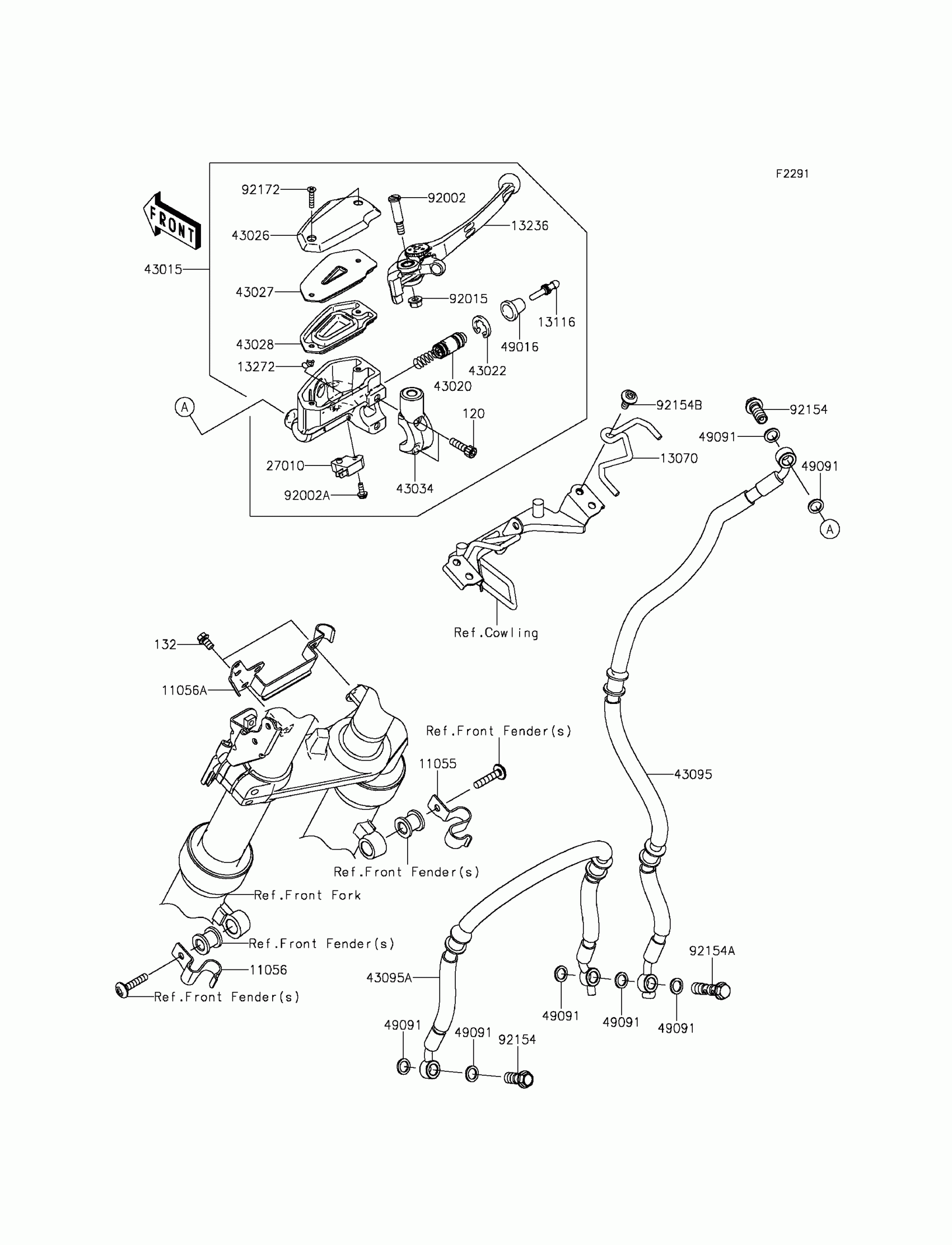

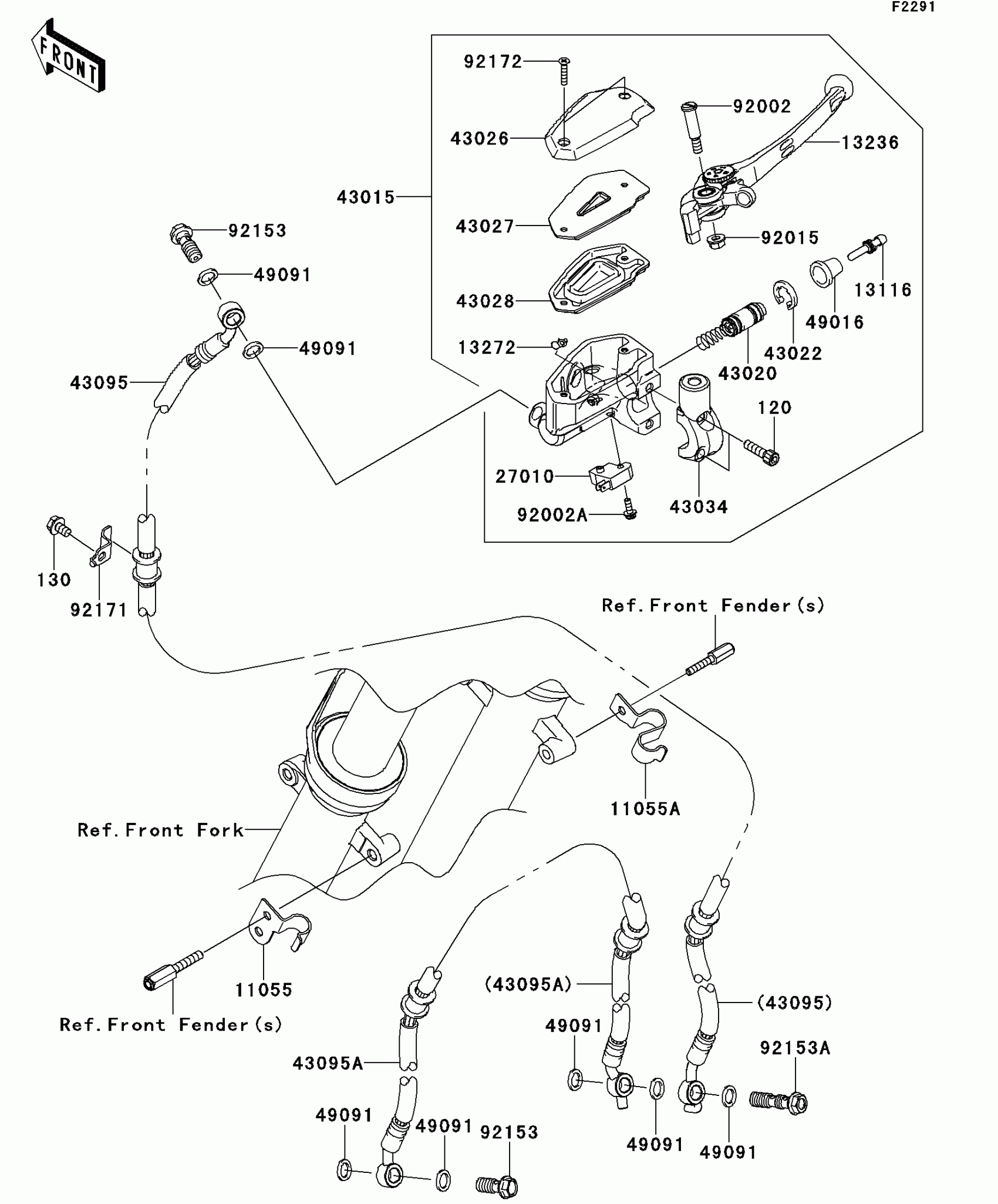

Kawasaki ER-6n Front Master Cylinder Diagram

#

Description
Price

11055

BRACKET

11055-1115

$4.15

11055A

BRACKET

11055-1116

$4.10

13116

ROD-PUSH

13116-0032

$21.73

13236

LEVER-COMP,FRONT BRAKE

13236-0169

$76.01

13272

PLATE

13272-0573

$7.47

27010

SWITCH,BRAKE

27010-0025

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0116

$417.98

43020

PISTON-COMP-BRAKE

43020-0015

$59.13

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-0019

$47.10

43027

PLATE-DIAPHRAGM

43027-0008

$8.47

43028

DIAPHRAGM

43028-0015

$37.15

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.93

43095

HOSE-BRAKE,FR,L=755

43095-0411

$88.44

43095A

HOSE-BRAKE,FR,L=545

43095-0412

$73.53

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,OIL,L=37

92153-0628

$9.00

92171

CLAMP

92171-1887

$2.76

92172

SCREW,4X20

92172-0320

$2.98

120

BOLT-SOCKET,6X22

120CB0622

$4.68

130

BOLT-FLANGED,6X10

130BB0610

$1.77
