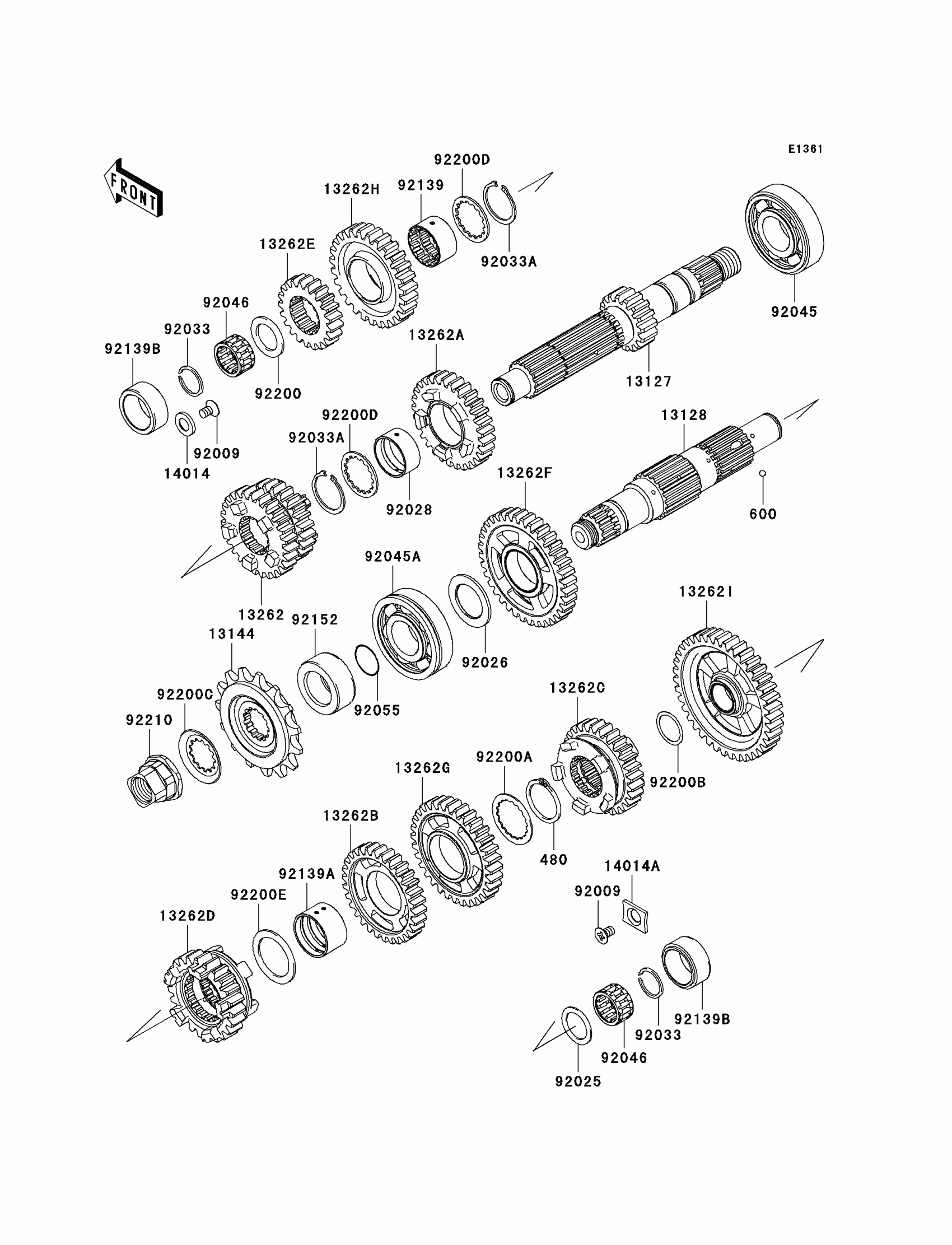

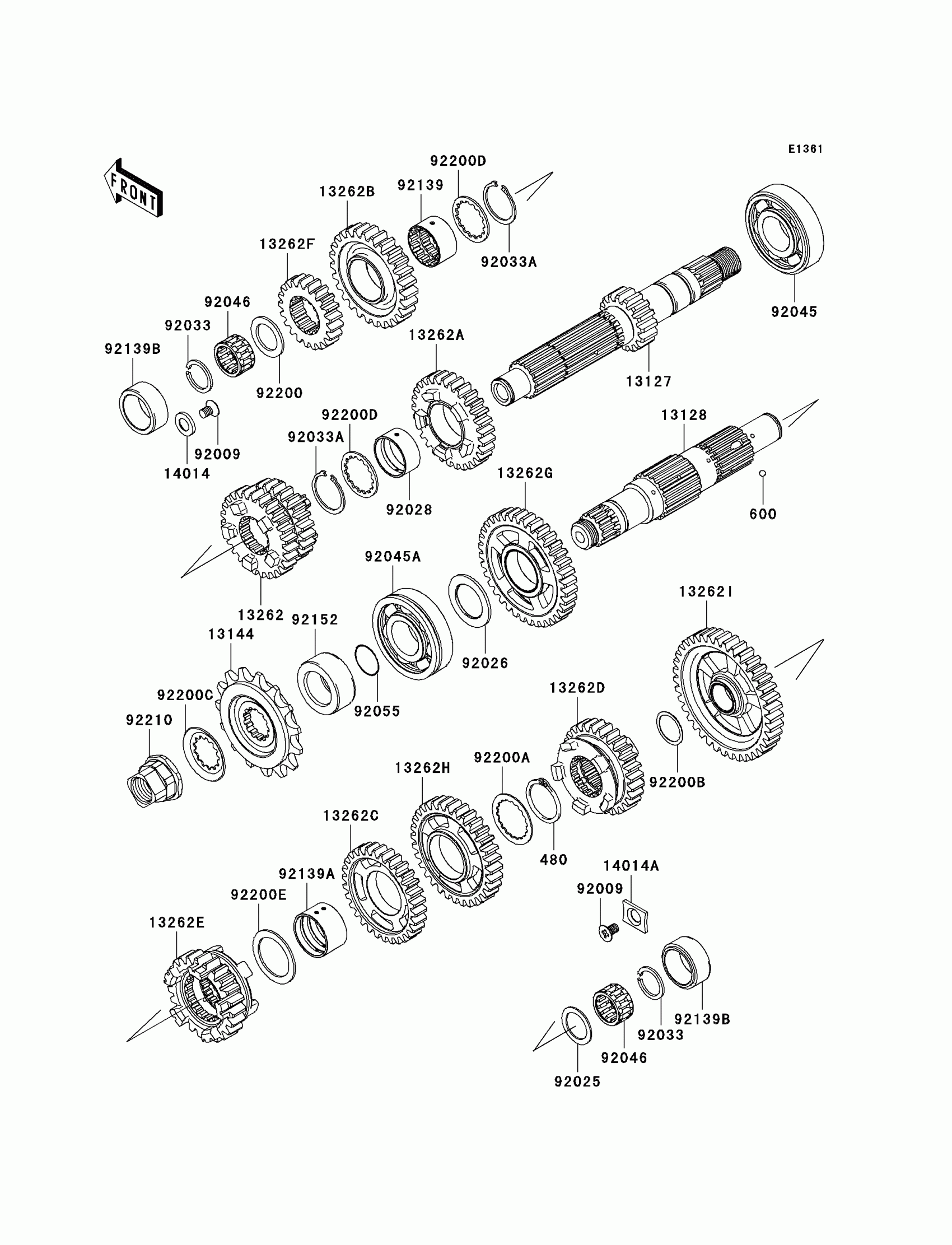

Kawasaki ER-6n (European) Transmission Diagram

#

Description
Price

480

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.80

13127

SHAFT-TRANSMISSION INPUT,16T

13127-0028

$262.07

13128

SHAFT-TRANSMISSION OUTPUT

13128-0020

$197.51

13144

SPROCKET-OUTPUT,15T,#520

13144-0024

$35.43

13262

GEAR,INPUT 3RD&4TH,24T&27T

13262-0245

Unavailable

13262A

GEAR,INPUT 5TH,29T

13262-0246

$124.85

13262B

GEAR,INPUT TOP,27T

13262-0247

$125.98

13262C

GEAR,OUTPUT 4TH,30T

13262-0251

Unavailable

13262D

GEAR,OUTPUT 5TH,28T

13262-0252

Unavailable

13262E

GEAR,OUTPUT TOP,23T

13262-0253

Unavailable

13262F

GEAR,INPUT 2ND,21T

13262-0335

$50.92

13262G

GEAR,OUTPUT 2ND,36T

13262-0337

Unavailable

13262H

GEAR,OUTPUT 3RD,32T

13262-0338

Unavailable

13262I

GEAR,OUTPUT LOW,39T

13262-0346

$124.76

14014

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.51

14014A

PLATE-POSITION,RH

14014-0020

$4.95

92009

SCREW,6X10

92009-1375

$3.53

92025

SHIM,20.3X28X1.1

92025-1455

$2.15

92026

SPACER,25.3X39X2.0

92026-1529

$10.49

92028

BUSHING,INPUT GEAR

92028-1449

$24.03

92033

RING-SNAP,20MM

92033-015

$3.39

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.69

92045

BEARING-BALL,25X62X17

92045-0042

$36.96

92045A

BEARING-BALL,6305N2SH2

92045-1224

$37.61

92046

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

$17.42

92055

RING-O,21.5X1.5

92055-1293

$3.97

92139

BUSHING,25X28.3X16.7

92139-0107

$25.24

92139A

BUSHING,OUT 3RD&4TH GEAR

92139-0108

$19.54

92139B

BUSHING,BEARING-NEEDLE

92139-0120

$29.14

92152

COLLAR,25X40X17.2

92152-0300

$29.21

92200

WASHER,20.2X30X1.8

92200-0221

$3.51

92200A

WASHER,30.3X38X1.0

92200-0222

$4.34

92200B

WASHER,20.2X25.0X0.5

92200-0291

$1.81

92200C

WASHER

92200-1065

$5.25

92200D

WASHER,28.5X34.0X1.5

92200-1240

$8.16

92200E

WASHER,29.9X40X1.5

92200-1278

$11.49

92210

NUT,M20,L=24MM

92210-0222

$40.39
