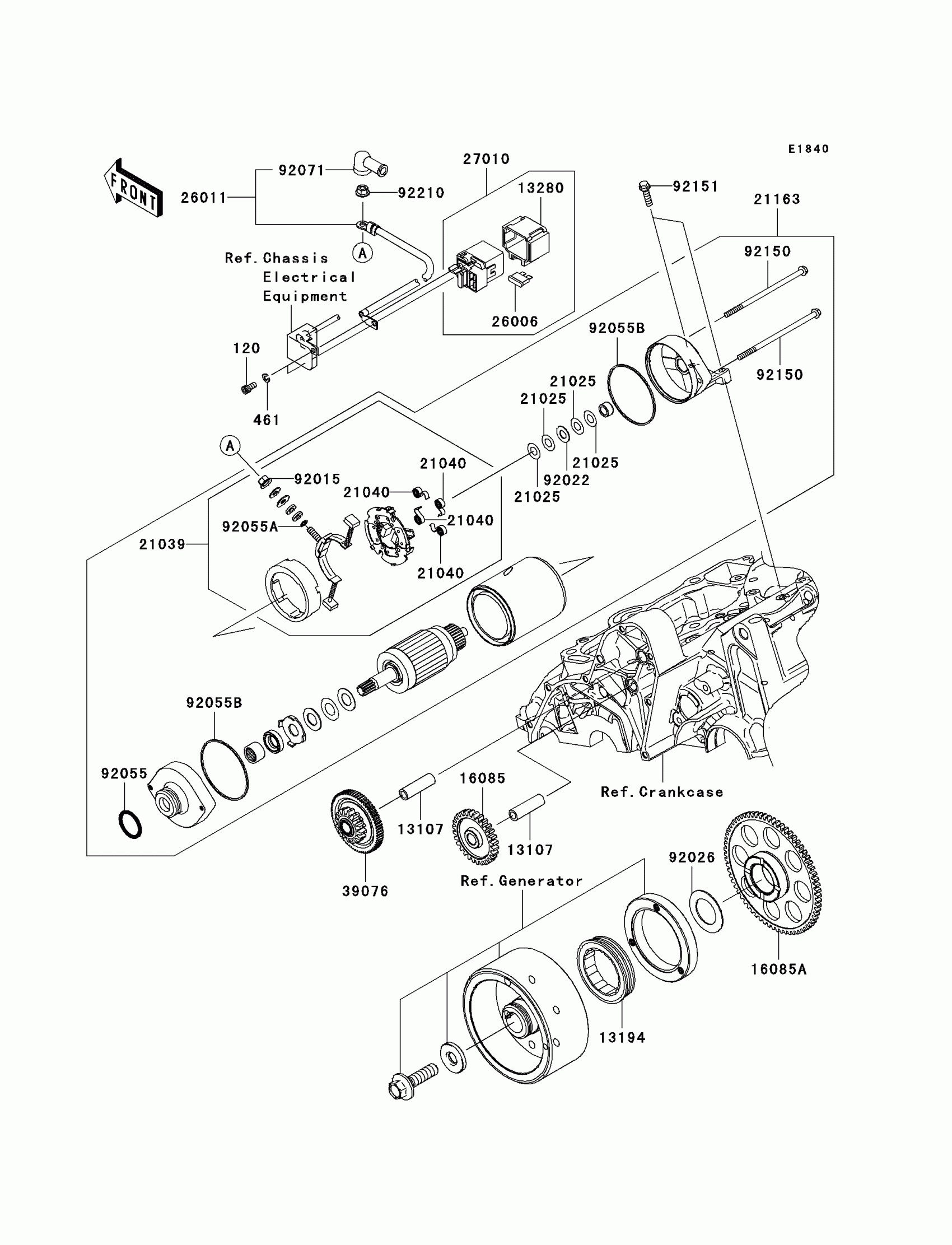

Kawasaki ER-6n (European) Starter Motor(-ER650AE046804) Diagram

Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.42

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13107

SHAFT,IDLE GEAR

13107-1106

$15.76

13194

CLUTCH-ONEWAY

13194-1083

Unavailable

13280

HOLDER

13280-1263

$13.05

16085

GEAR,IDLE,28T

16085-0074

$106.14

16085A

GEAR,67T

16085-0076

$119.83

21025

WASHER,9.1X18X0.2

21025-011

$5.42

21039

BRUSH,CARBON

21039-1060

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21163

STARTER-ELECTRIC

21163-0027

$610.63

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD

26011-0083

$37.51

27010

SWITCH,MAGNETIC

27010-1446

$133.91

39076

LIMITER,16T&66T

39076-0006

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,29.1X47.5X1.2

92026-087

$9.58

92055

RING-O

92055-1276

$7.86

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92071

GROMMET

92071-0024

$9.86

92150

BOLT,5X110

92150-1143

$9.68

92151

BOLT,6X22

92151-1937

Unavailable

92210

NUT,6MM

92210-0188

$1.81
