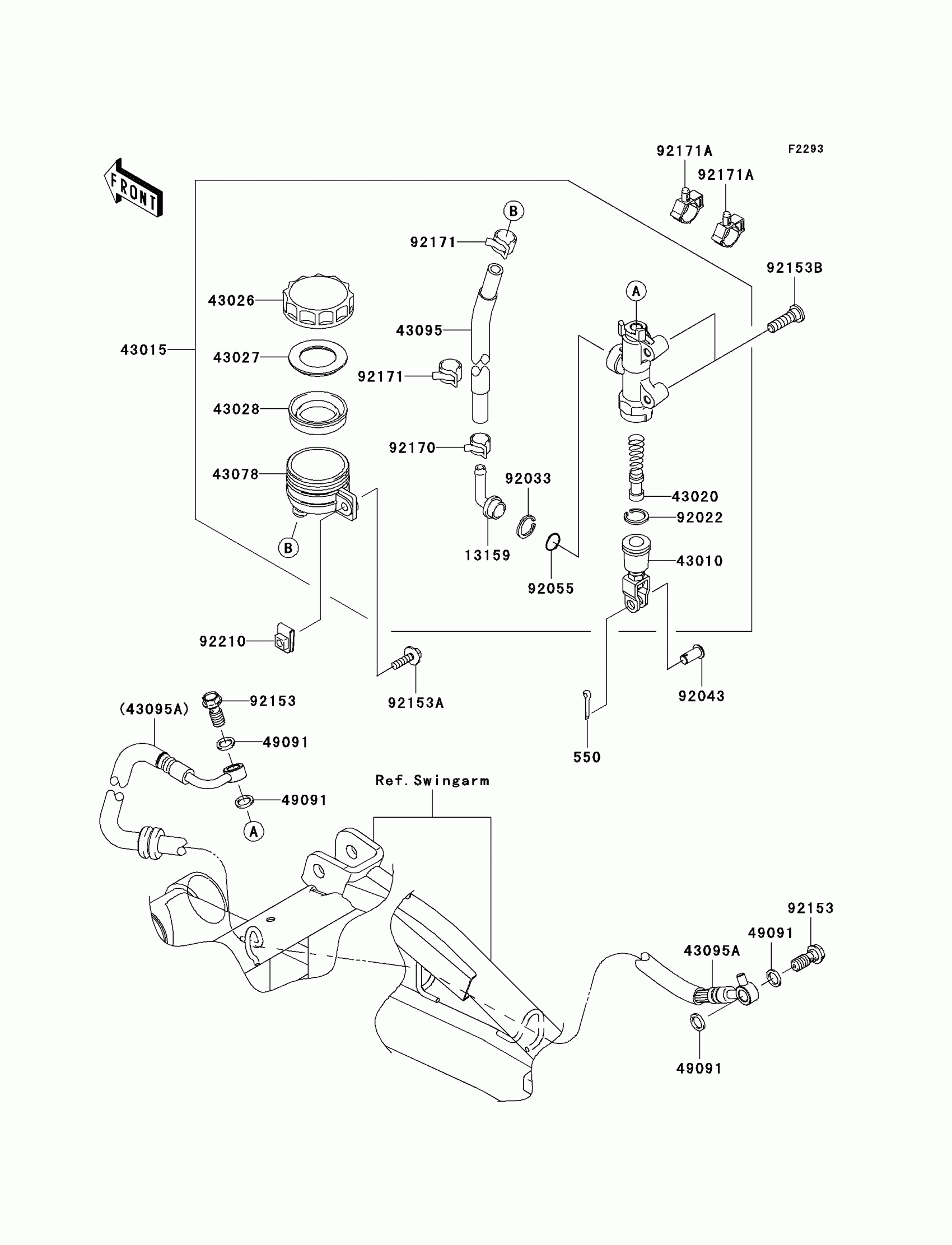

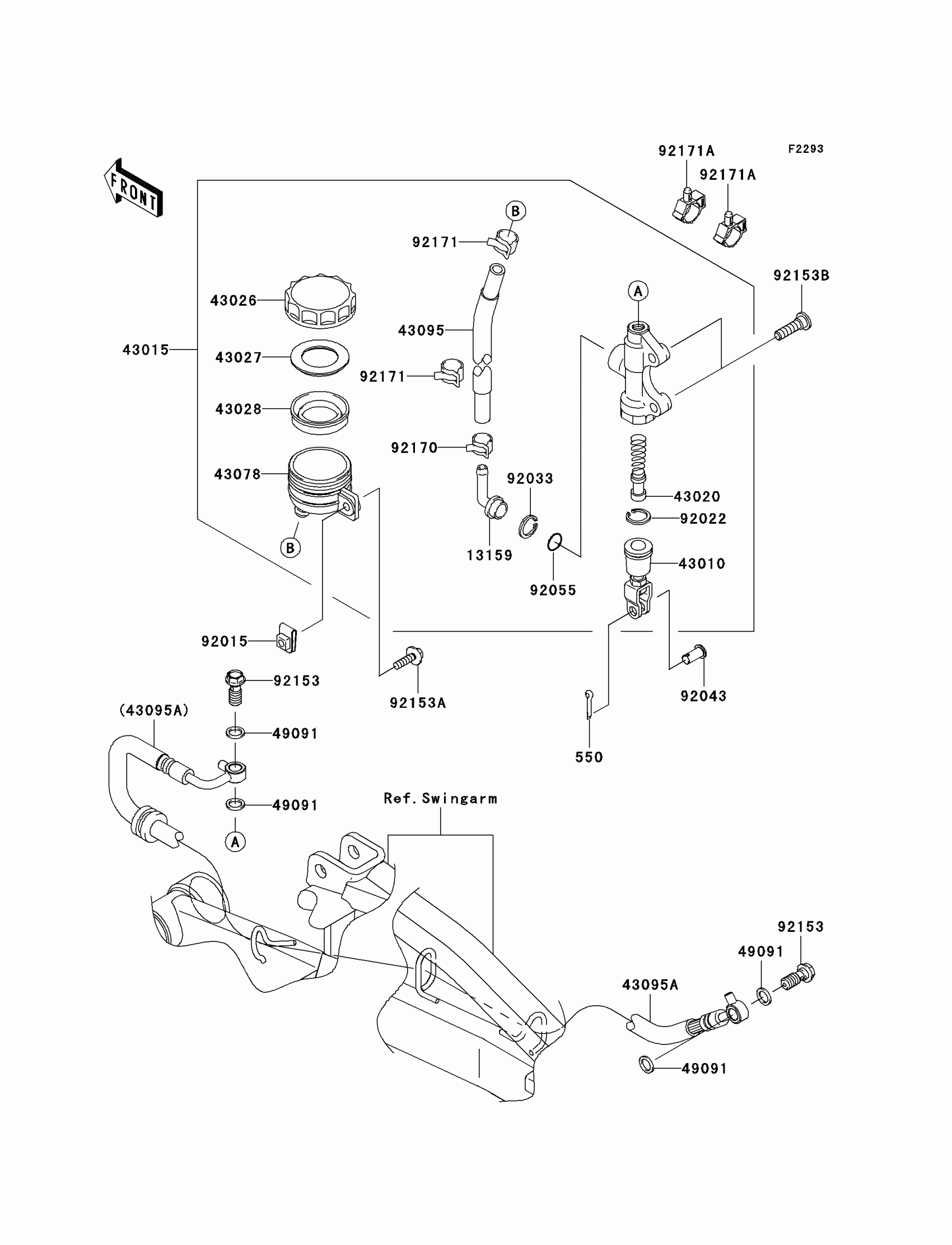

Kawasaki ER-6n (European) Rear Master Cylinder Diagram

Description

Price

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR

13159-1056

$11.16

43010

ROD-ASSY-BRAKE

43010-1074

$60.54

43015

CYLINDER-ASSY-MASTER,RR

43015-0068

$276.83

43020

PISTON-COMP-BRAKE

43020-1094

$59.90

43026

CAP-BRAKE

43026-1051

$31.36

43027

PLATE-DIAPHRAGM

43027-1051

$4.22

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$15.01

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0193

$18.46

43095A

HOSE-BRAKE,RR

43095-0238

$85.86

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92015

NUT,6MM

92015-1602

$5.84

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.94

92043

PIN,8X17

92043-0104

$3.11

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92153

BOLT,OIL,L=23

92153-0627

$4.35

92153A

BOLT,6X22

92153-0725

$1.81

92153B

BOLT,SOCKET,8X30

92153-1624

$3.11

92170

CLAMP,HOSE

92170-1091

$3.97

92171

CLAMP,HOSE

92171-0463

$5.56

92171A

CLAMP

92171-0955

$4.68
