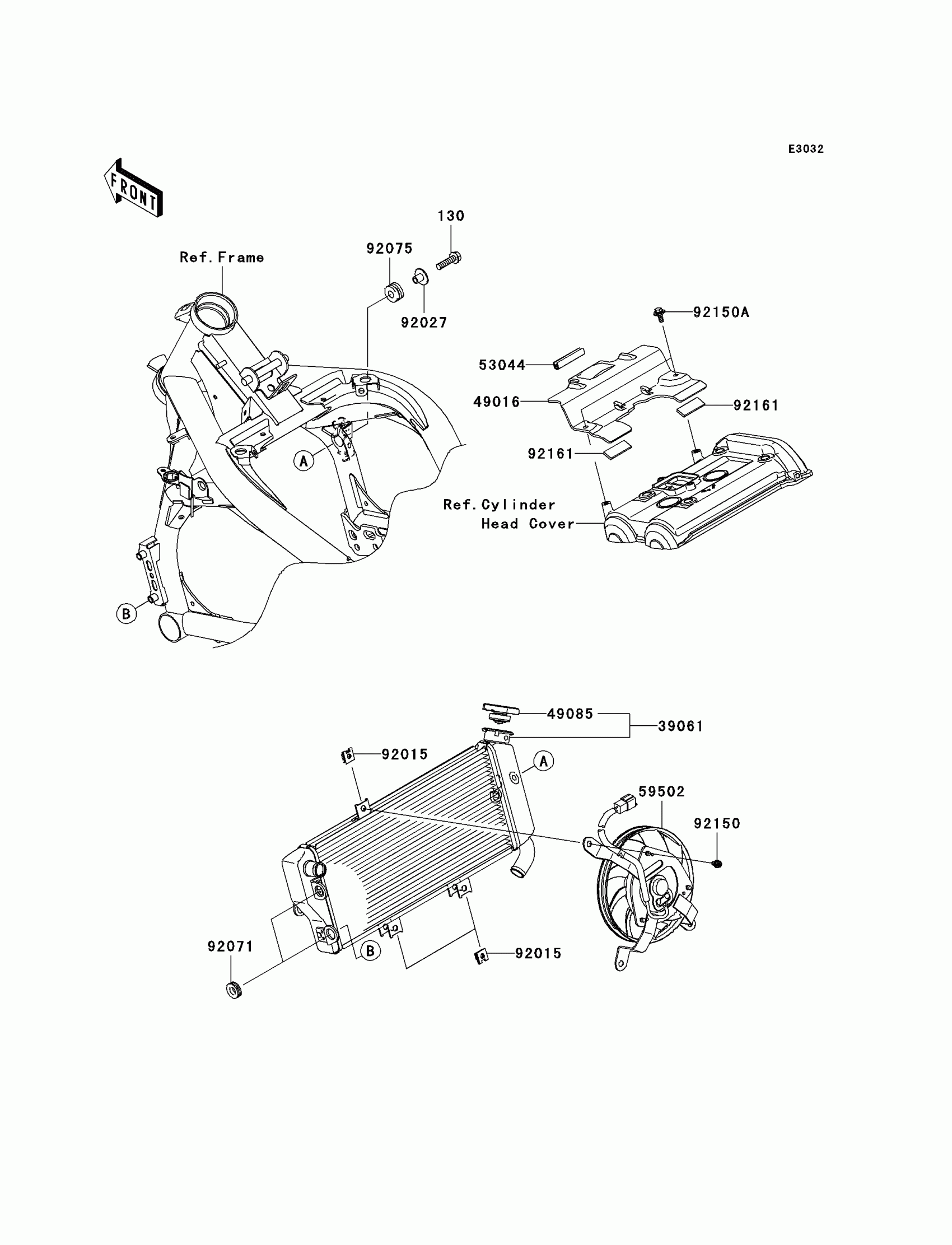

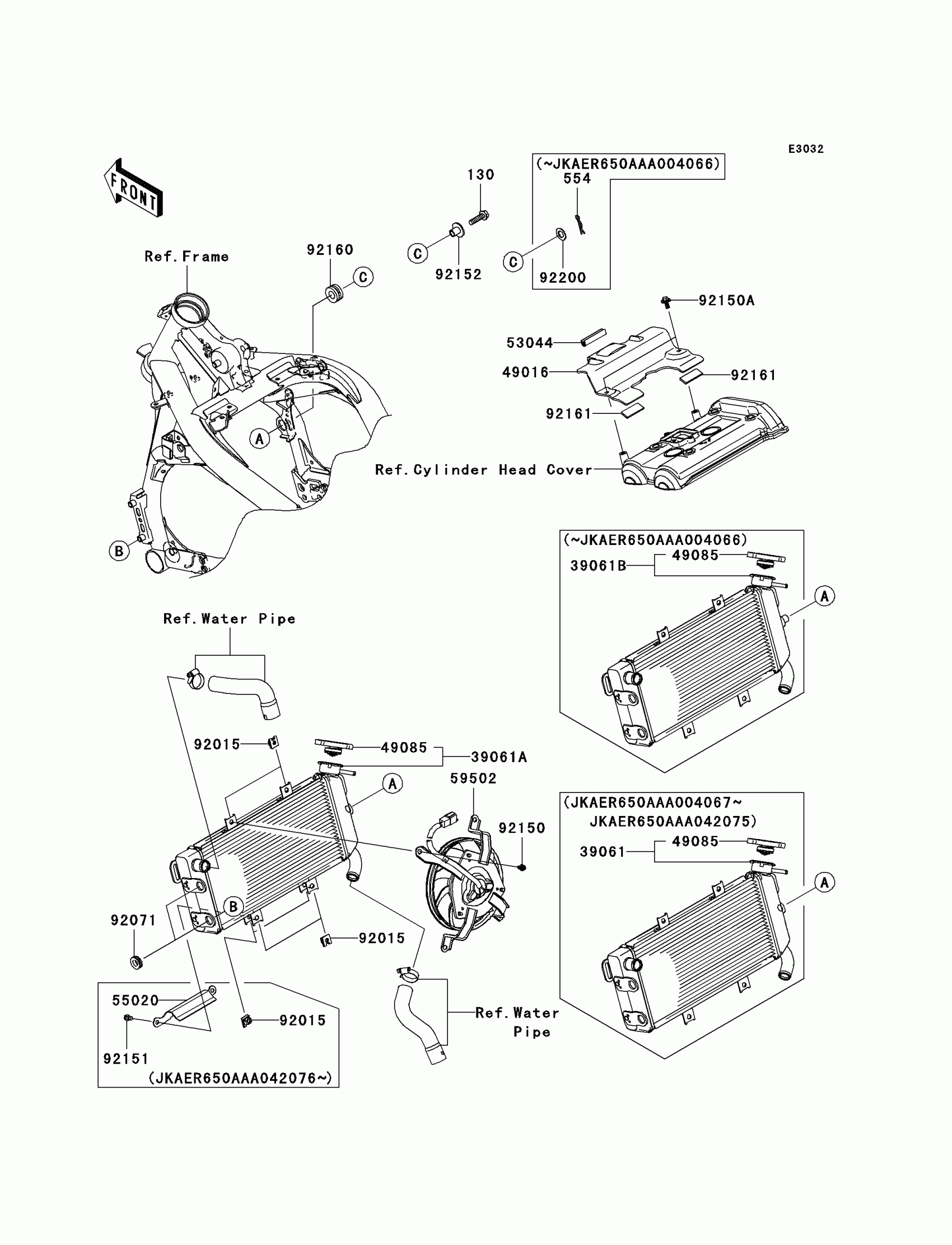

Kawasaki ER-6n (European) Radiator Diagram

Description

Price

130

BOLT-FLANGED,8X30

130BA0830

$1.68

554

PIN-SNAP,12MM

554A1200

Unavailable

39061

RADIATOR-ASSY

39061-0066

$991.16

39061B

RADIATOR-ASSY

39061-5001

Unavailable

49016

COVER-SEAL,HOT WIND

49016-0030

$32.98

49085

CAP-ASSY-PRESSURE

49085-1078

$47.06

53044

TRIM,L=50

53044-1185

$4.66

59502

FAN-ASSY

59502-0019

Unavailable

92015

NUT

92015-1487

$3.80

92071

GROMMET

92071-1115

$4.34

92150

BOLT,6X12

92150-1186

$2.92

92150A

BOLT,FLANGED,6X14

92150-1689

$3.14

92152

COLLAR

92152-0398

Unavailable

92160

DAMPER

92160-1007

$4.37

92161

DAMPER

92161-0301

$1.81

92200

WASHER,12.5X22X1.2

92200-1174

$3.29
