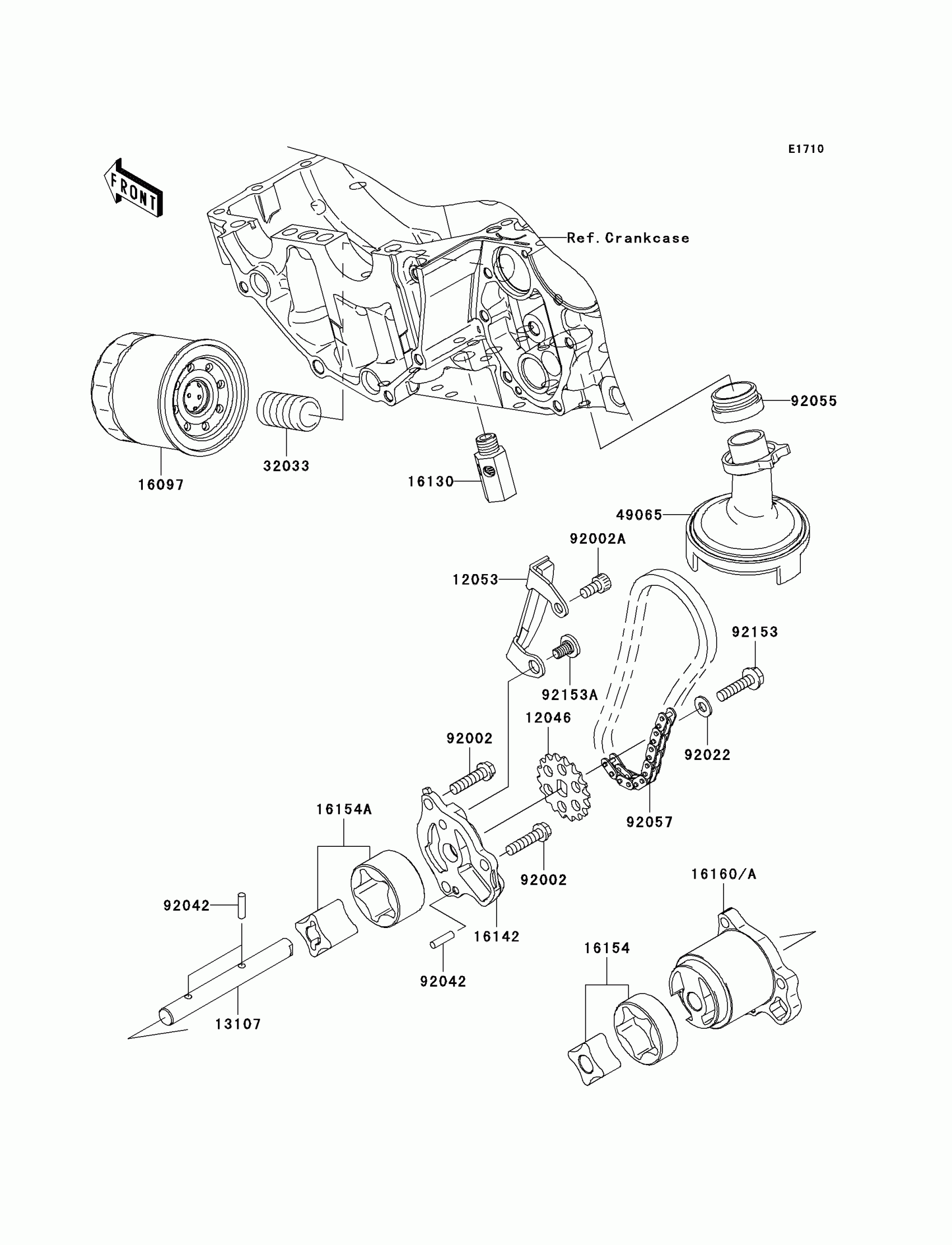

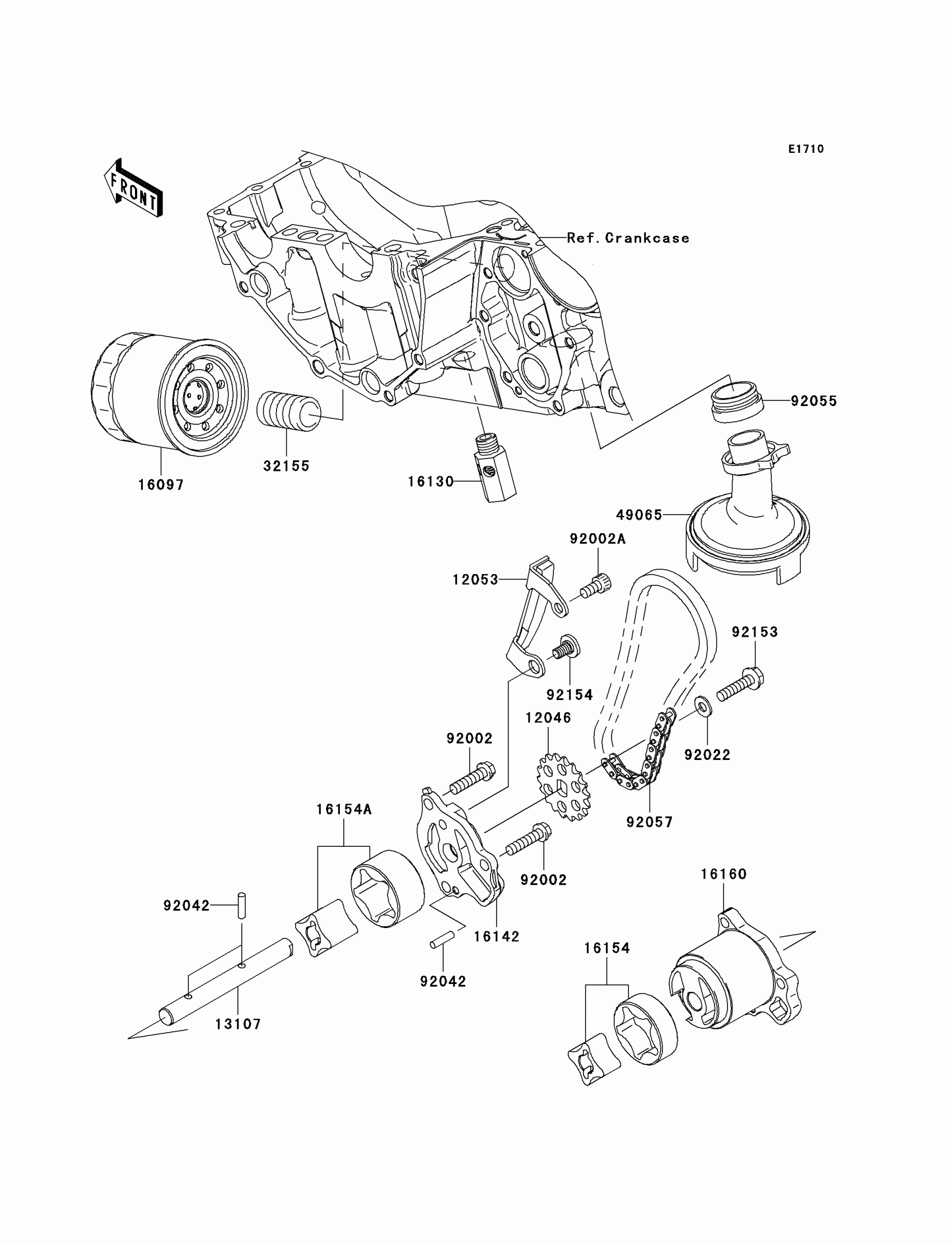

Kawasaki ER-6n (European) Oil Pump Diagram

Description

Price

12046

SPROCKET,18T,BF04M

12046-0040

$11.41

12053

GUIDE-CHAIN

12053-0071

$31.36

13107

SHAFT,OIL PUMP

13107-0156

$29.24

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1058

$38.20

16142

COVER-PUMP

16142-0024

$32.41

16154

ROTOR-PUMP,L=14

16154-0037

$62.33

16154A

ROTOR-PUMP,40.56X22

16154-1115

$64.28

16160

BODY,OIL PUMP

16160-0083

$41.29

32033

PIPE,OIL FILTER

32033-1535

$10.27

49065

FILTER-OIL

49065-0011

$32.36

92002

BOLT,6X25

92002-1344

Unavailable

92002A

BOLT,SOCKET,6X12

92002-1796

$3.72

92022

WASHER,6X12.8X1.2

92022-1827

$3.72

92042

PIN,DOWEL,4X15.8

92042-014

$0.49

92055

RING-O,OIL FILTER

92055-1354

$7.55

92057

CHAIN,DID 215FD-DHA,56LE

92057-0098

$40.63

92153

BOLT,FLANGED,6X25

92153-0952

Unavailable

92153A

BOLT,SOCKET,6X11

92153-0969

$5.51
