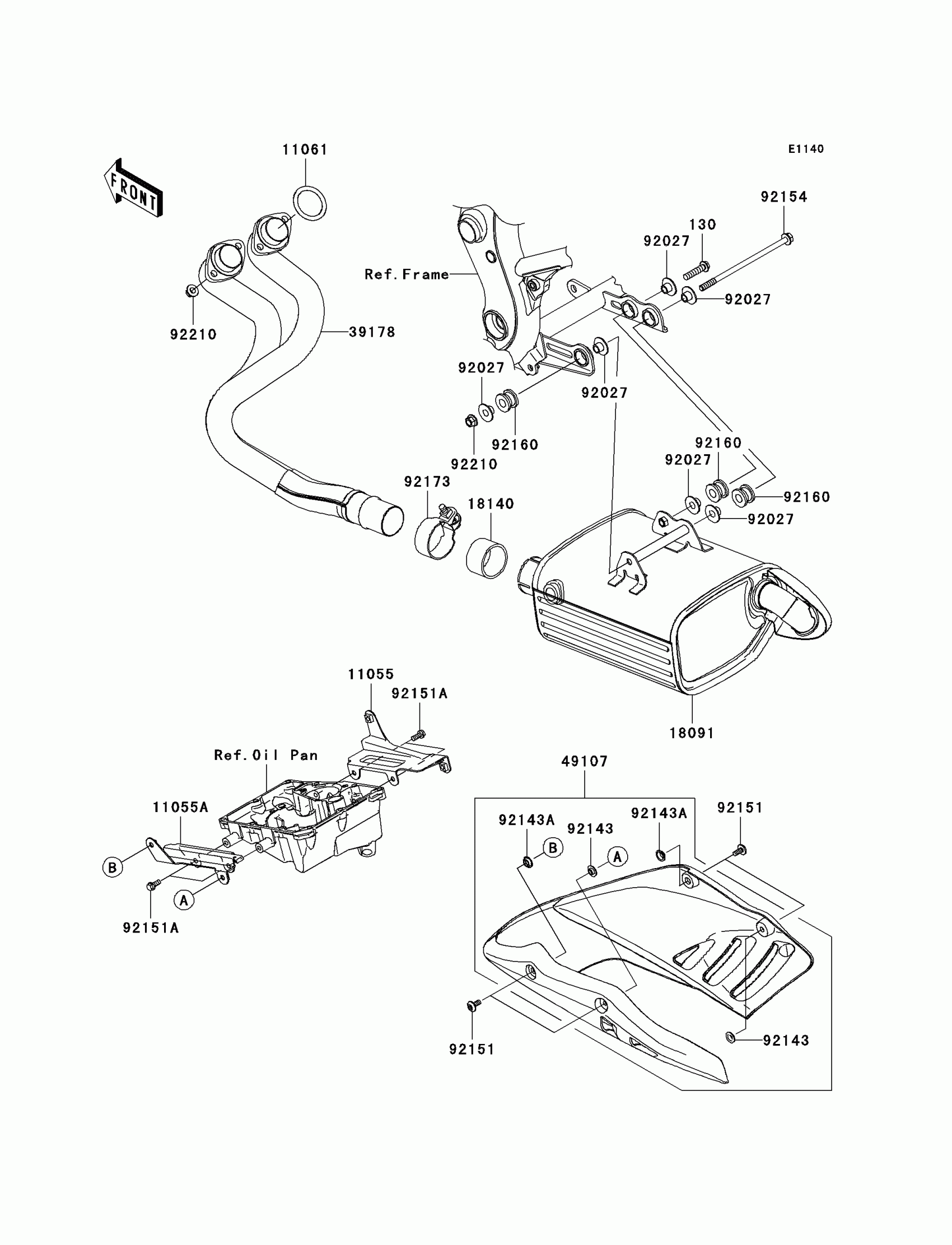

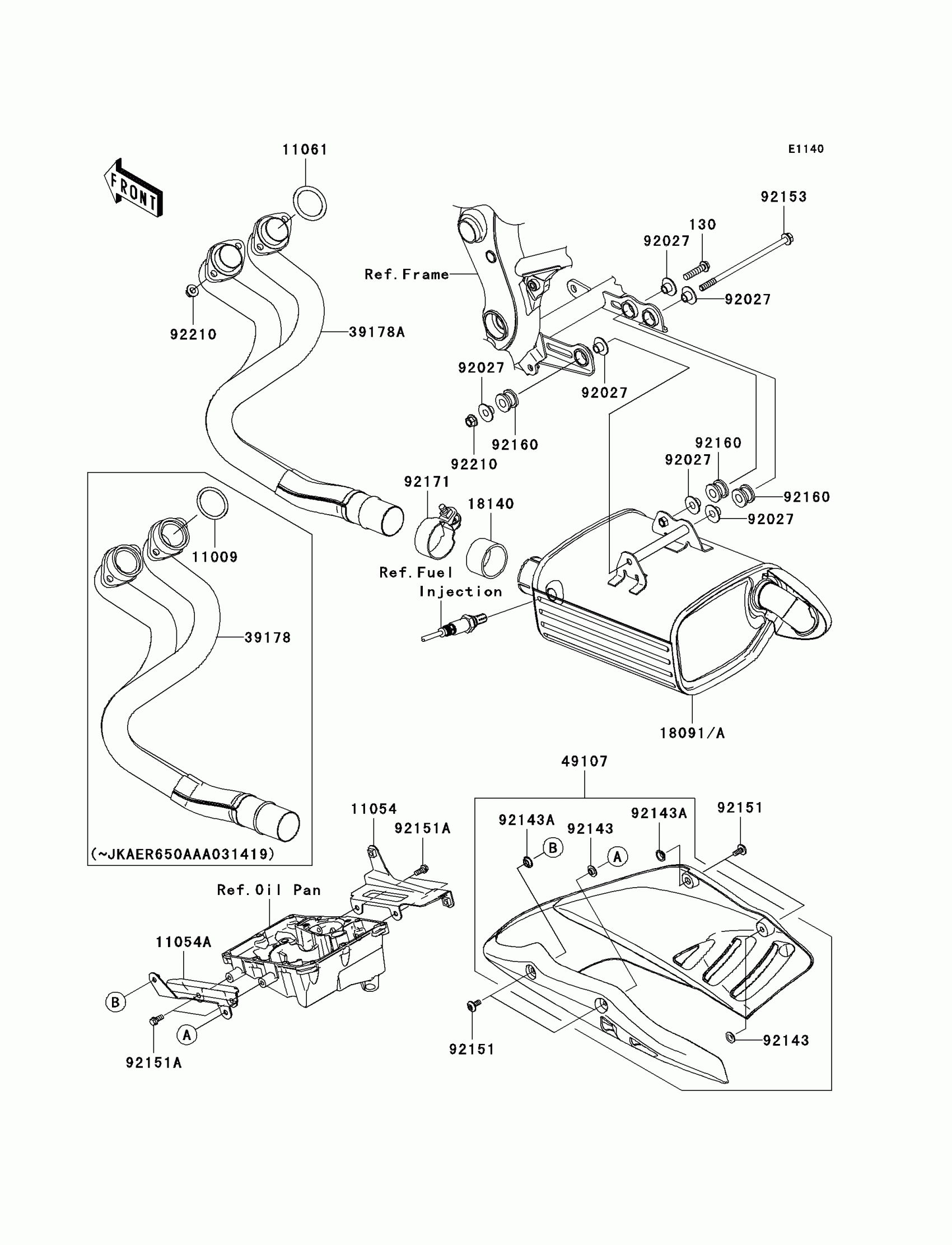

Kawasaki ER-6n (European) Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X35

130CD0835

$2.80

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11054

BRACKET,RH

11054-0234

$24.86

11054A

BRACKET,LH

11054-0235

$20.99

18091

BODY-COMP-MUFFLER

18091-0284

$1,038.74

18140

GASKET-MUFFLER

18140-0002

$14.26

39178

MANIFOLD-COMP-EXHAUST

39178-0058

Unavailable

49107

COVER-EXHAUST PIPE,S.F.C.GRAY

49107-0074-837

$163.37

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$10.28

92143

COLLAR

92143-1087

$4.31

92143A

COLLAR

92143-1196

$4.69

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92151A

BOLT,FLANGED,6X14

92151-1755

$2.34

92153

BOLT,FLANGED,8X165

92153-1357

$11.53

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

92171

CLAMP

92171-1568

$27.31

92210

NUT,8MM

92210-1114

$2.46
