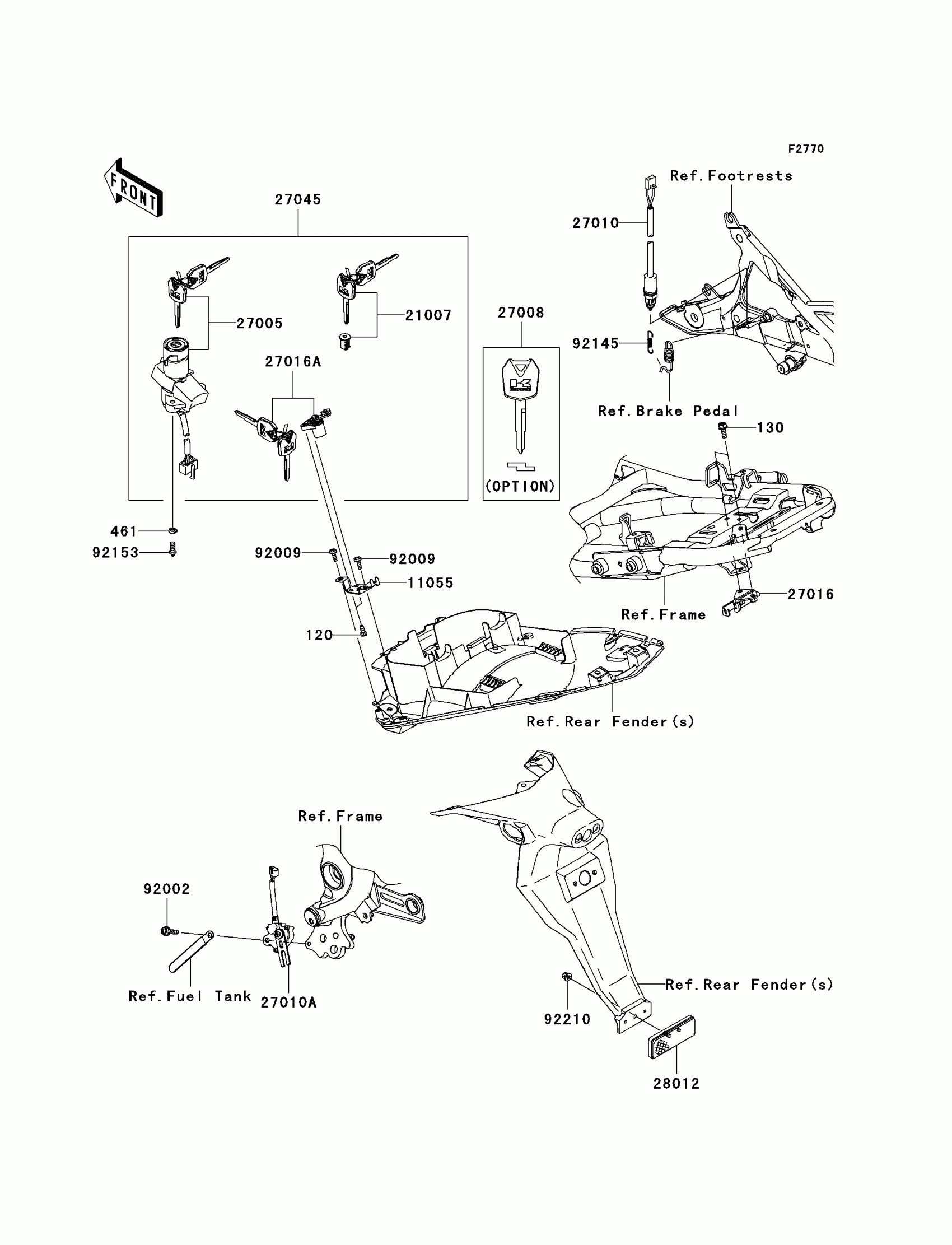

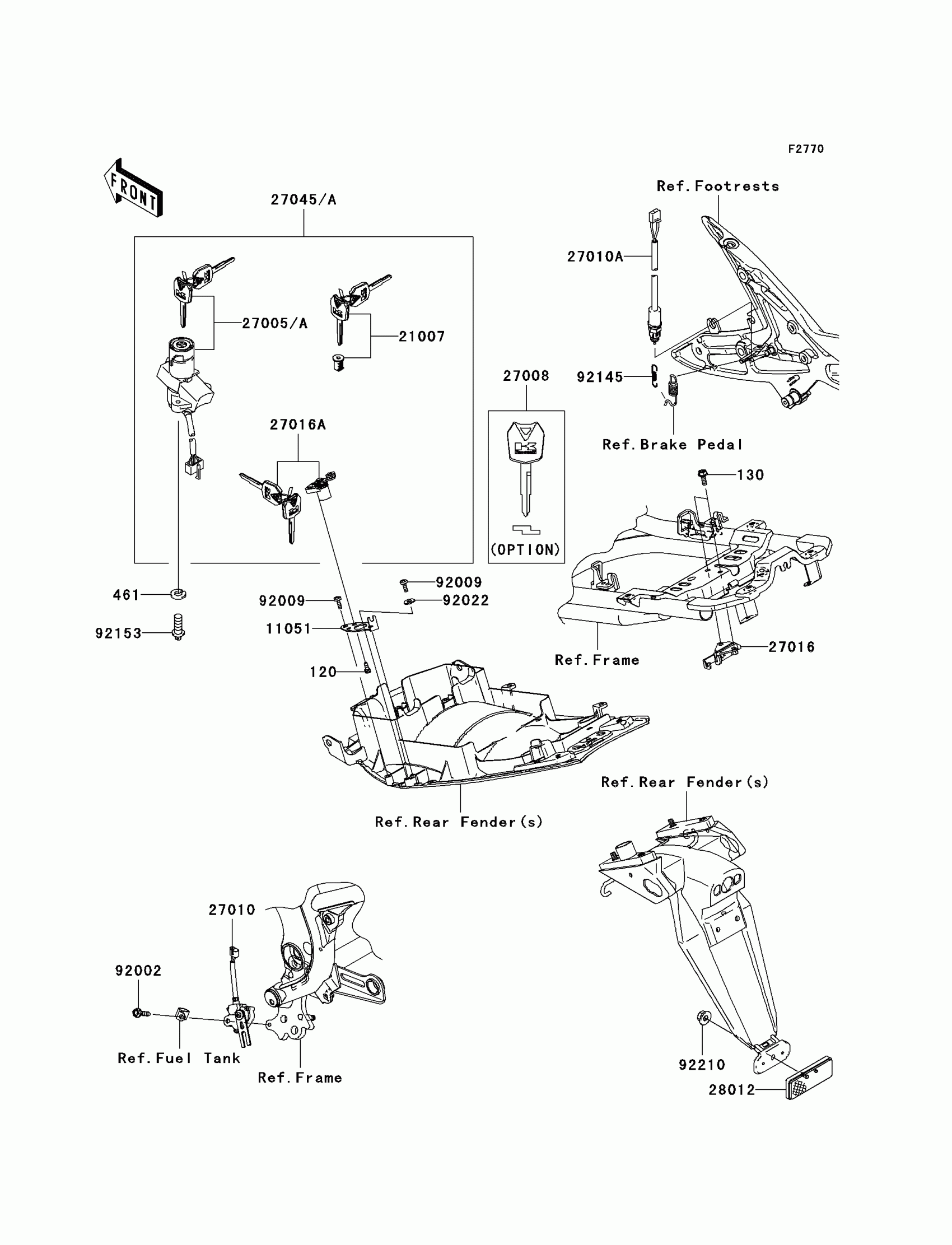

Kawasaki ER-6n (European) Ignition Switch Diagram

Description

Price

120

BOLT-SOCKET,5X12

120CB0512

$1.51

130

BOLT-FLANGED,6X12

130BB0612

$1.95

461

WASHER-SPRING

461L0600

$0.68

11051

BRACKET,SEAT LOCK

11051-1370

$8.95

21007

ROTOR,LOCK,TANK CAP

21007-5057

$86.34

27005

SWITCH-ASSY-IGNITION

27005-5130

$190.44

27008

KEY-LOCK,BLANK

27008-0030

$14.66

27010

SWITCH,SIDE STAND

27010-1455

$120.30

27010A

SWITCH,REAR BRAKE

27010-1479

$27.22

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5309

$88.67

27045

SWITCH-ASSY

27045-5231

$440.42

28012

REFLECTOR-REFLEX

28012-1077

$21.76

92002

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X14

92009-3845

$1.00

92022

WASHER,6.5X16X2

92022-1342

$3.12

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$2.93

92153

BOLT,TORX,6X16

92153-0967

$2.15

92210

NUT,FLANGED,5MM

92210-0007

$2.20
