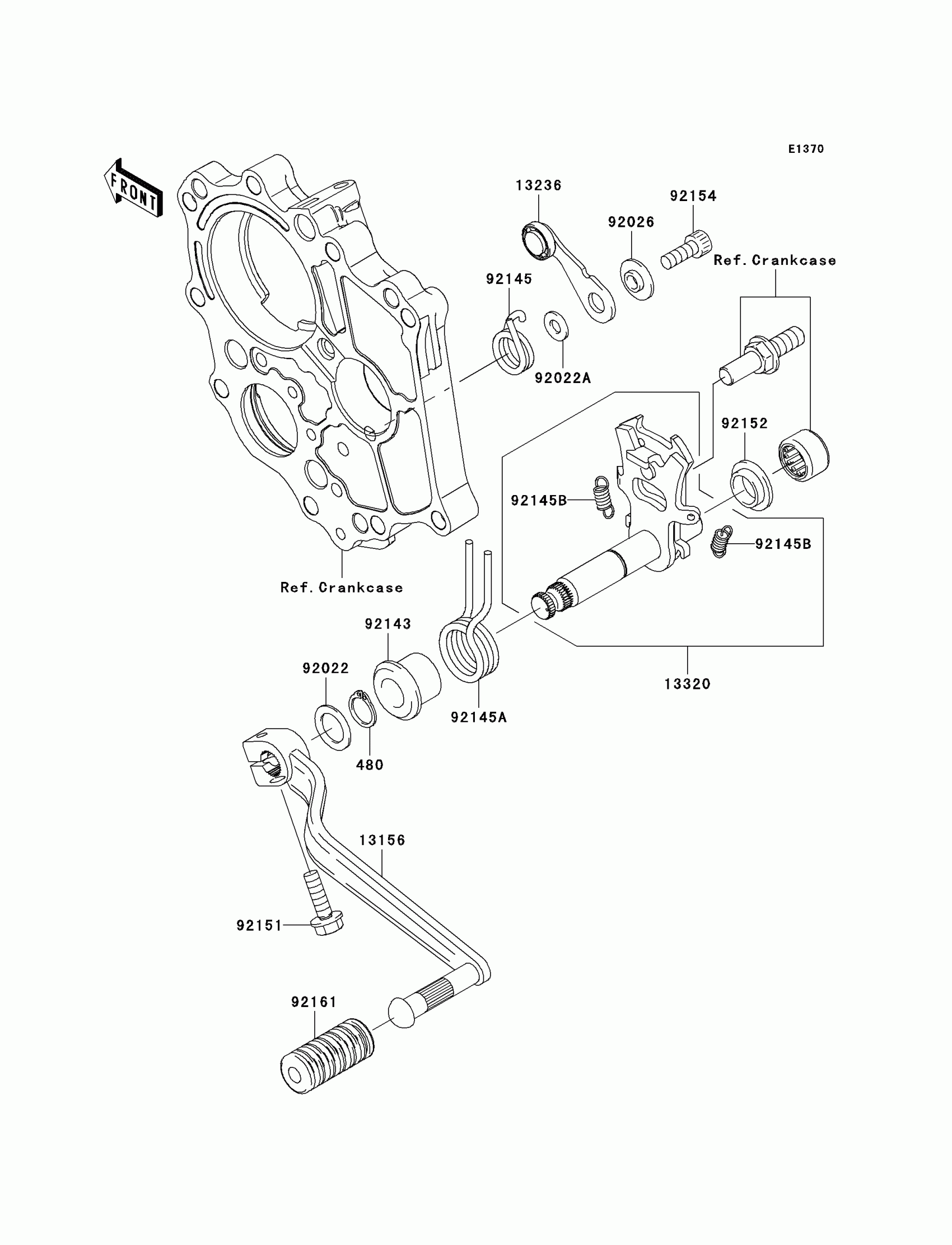

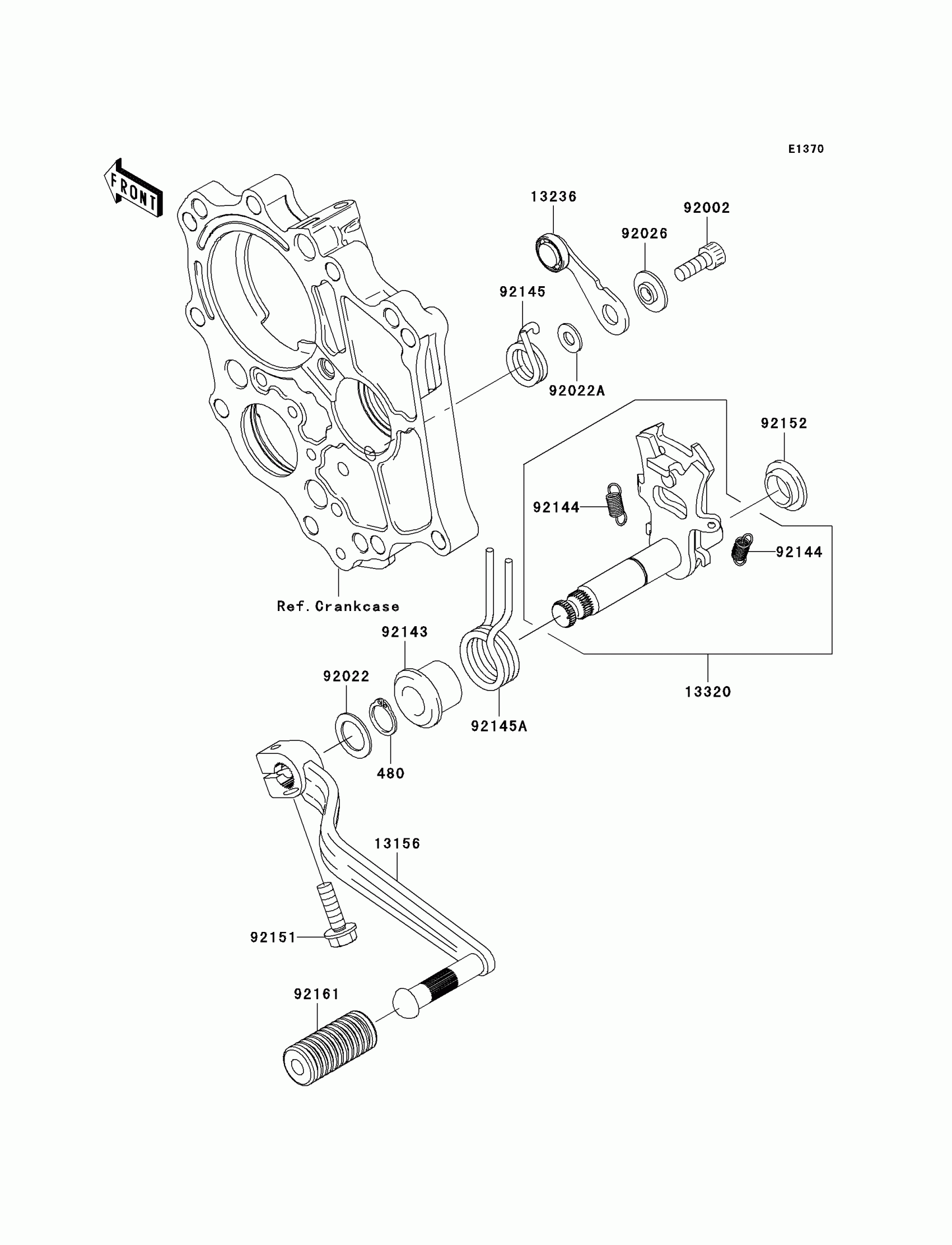

Kawasaki ER-6n (European) Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.12

13156

LEVER-CHANGE,PEDAL

13156-0072

$55.12

13236

LEVER-COMP,POSITION

13236-0094

$9.29

13320

LEVER-ASSY

13320-0010

$71.79

92002

BOLT,SOCKET,6X16

92002-1778

$3.97

92022

WASHER,13.3X20X1

92022-1496

$3.12

92022A

WASHER,6X12.8X1.2

92022-1827

$3.72

92026

SPACER

92026-1217

$4.37

92143

COLLAR,RETURN SPRING

92143-1498

$8.44

92144

SPRING,CHANGE LEVER

92144-1975

$4.80

92145

SPRING,POSITION

92145-0304

$3.08

92145A

SPRING,RETURN

92145-0326

$5.27

92151

BOLT,FLANGED,6X20

92151-1226

$2.03

92152

COLLAR

92152-1075

$3.33

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.90
