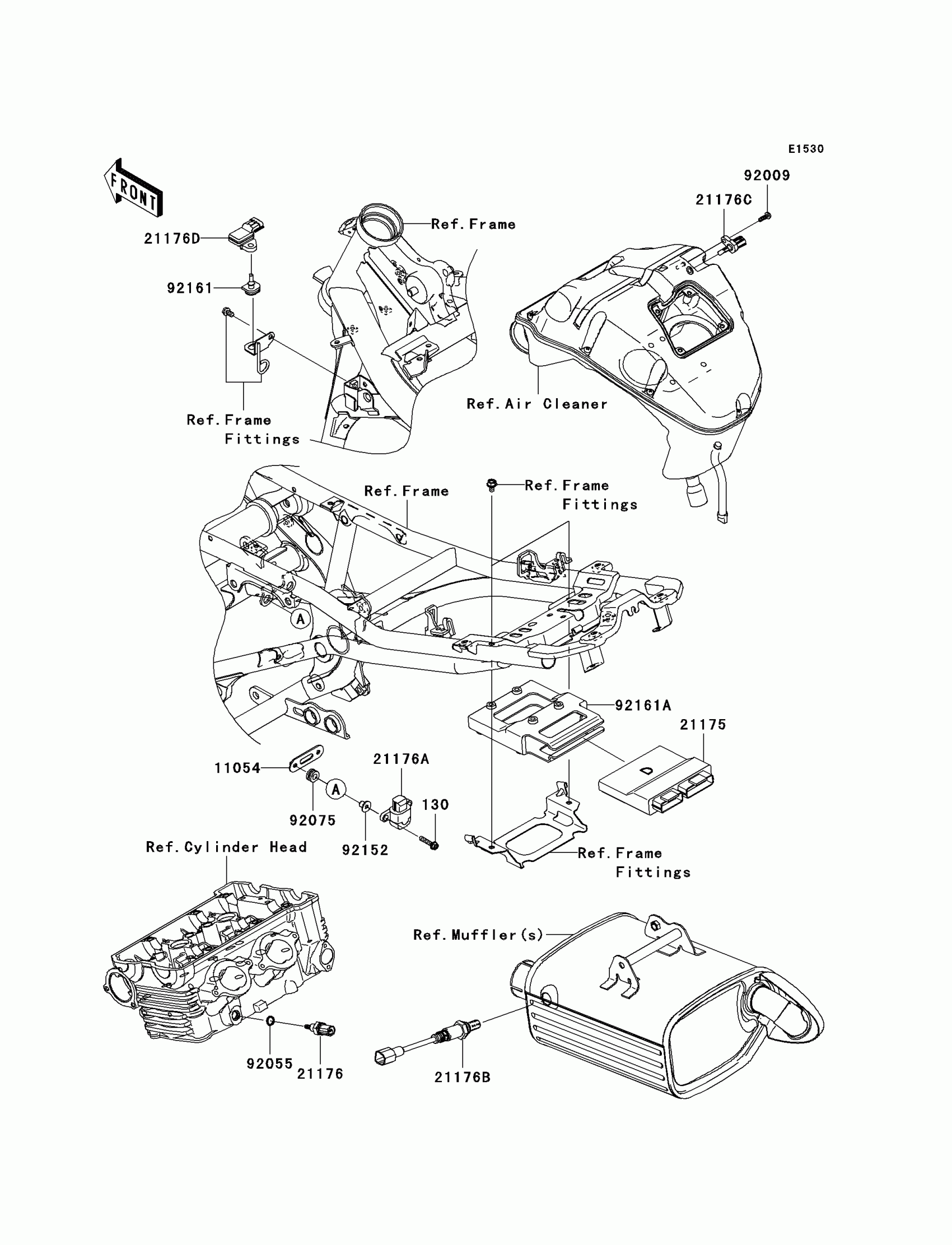

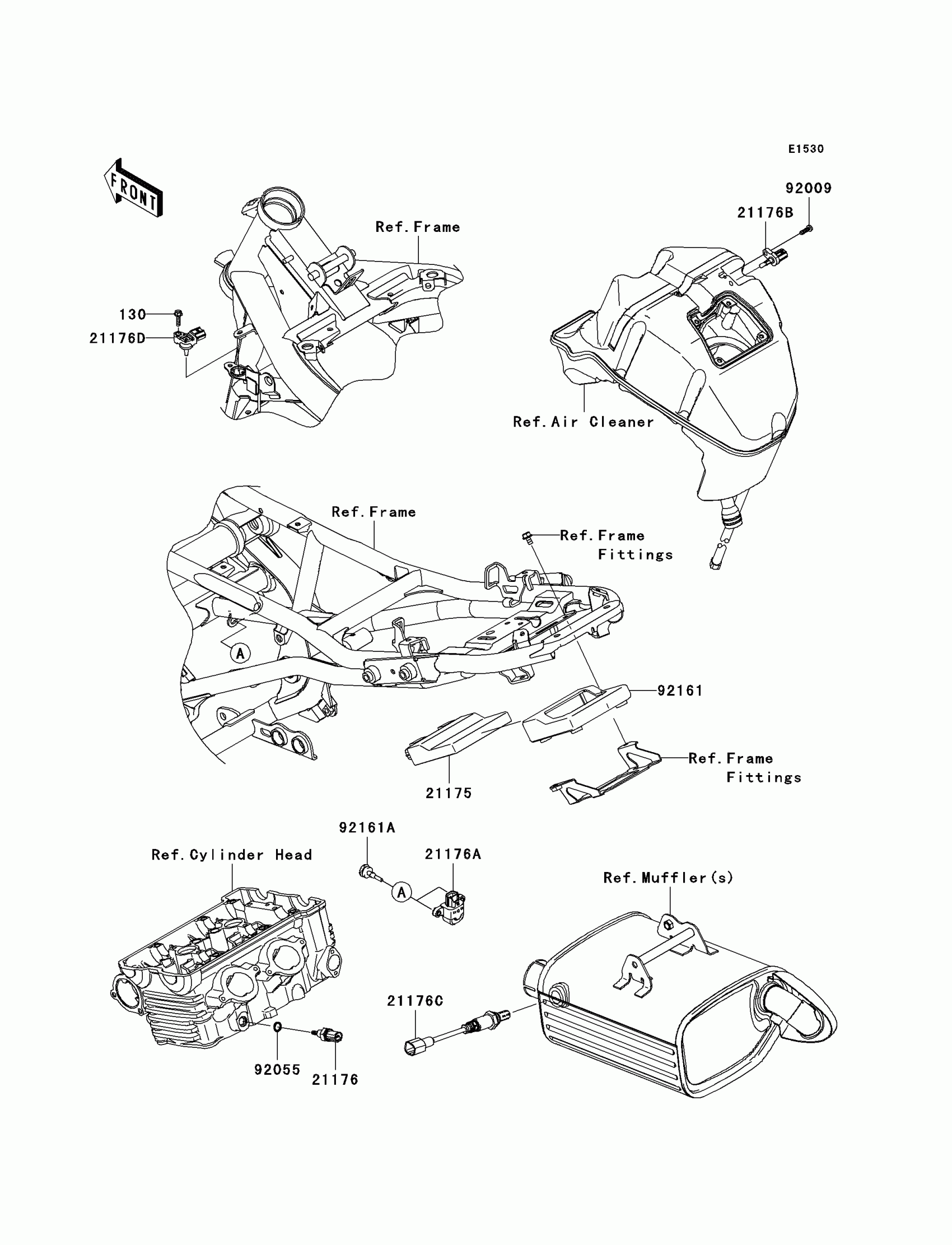

Kawasaki ER-6n (European) Fuel Injection Diagram

Description

Price

130

BOLT-FLANGED,5X25

130BB0525

$3.49

11054

BRACKET

11054-0133

$7.95

21175

CONTROL UNIT-ELECTRONIC

21175-0077

$784.75

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$79.06

21176B

SENSOR,OXYGEN

21176-0035

Unavailable

21176C

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176D

SENSOR,PRESSURE

21176-0058

$144.21

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$7.06

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-0041

$4.59

92161A

DAMPER

92161-0179

$21.31
