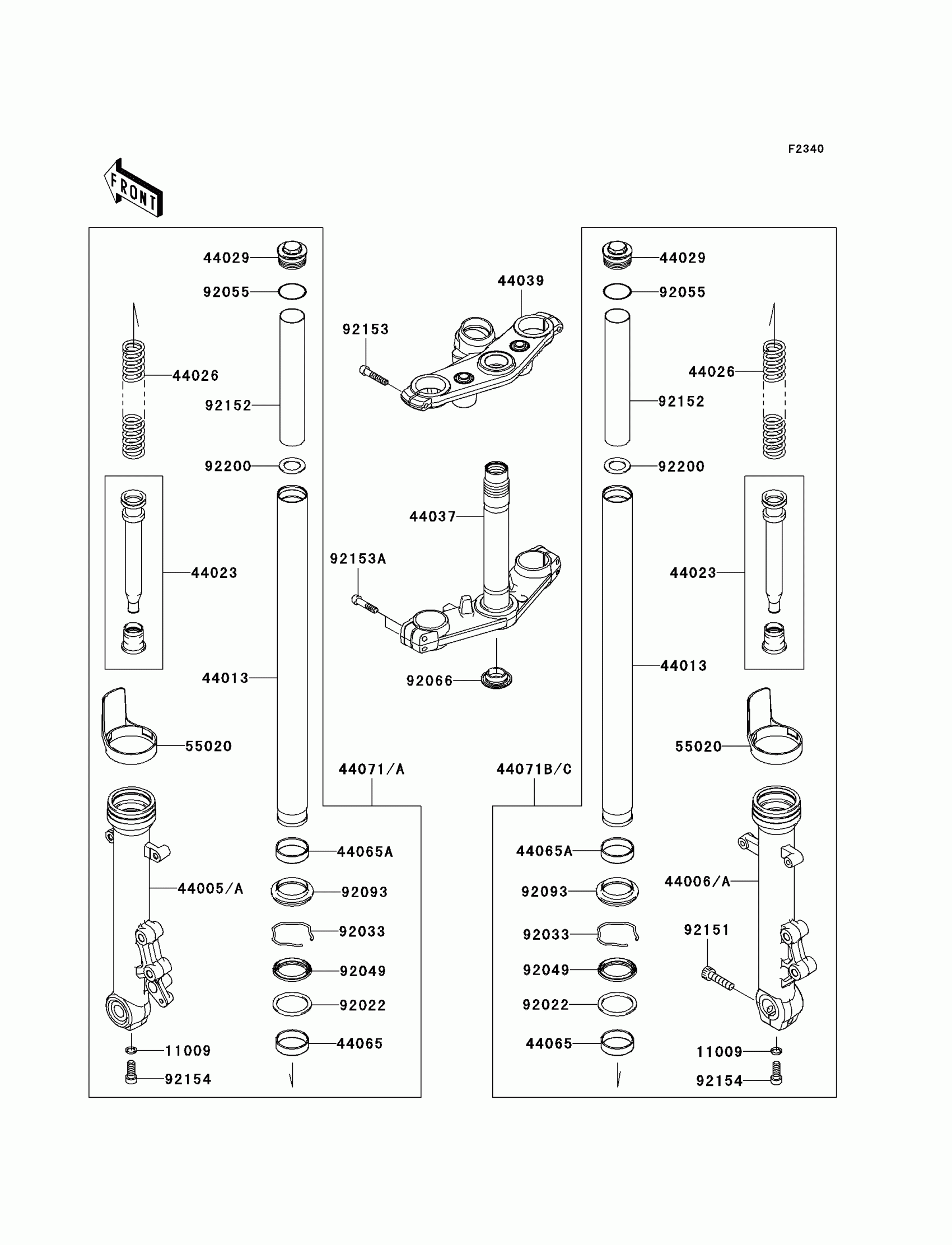

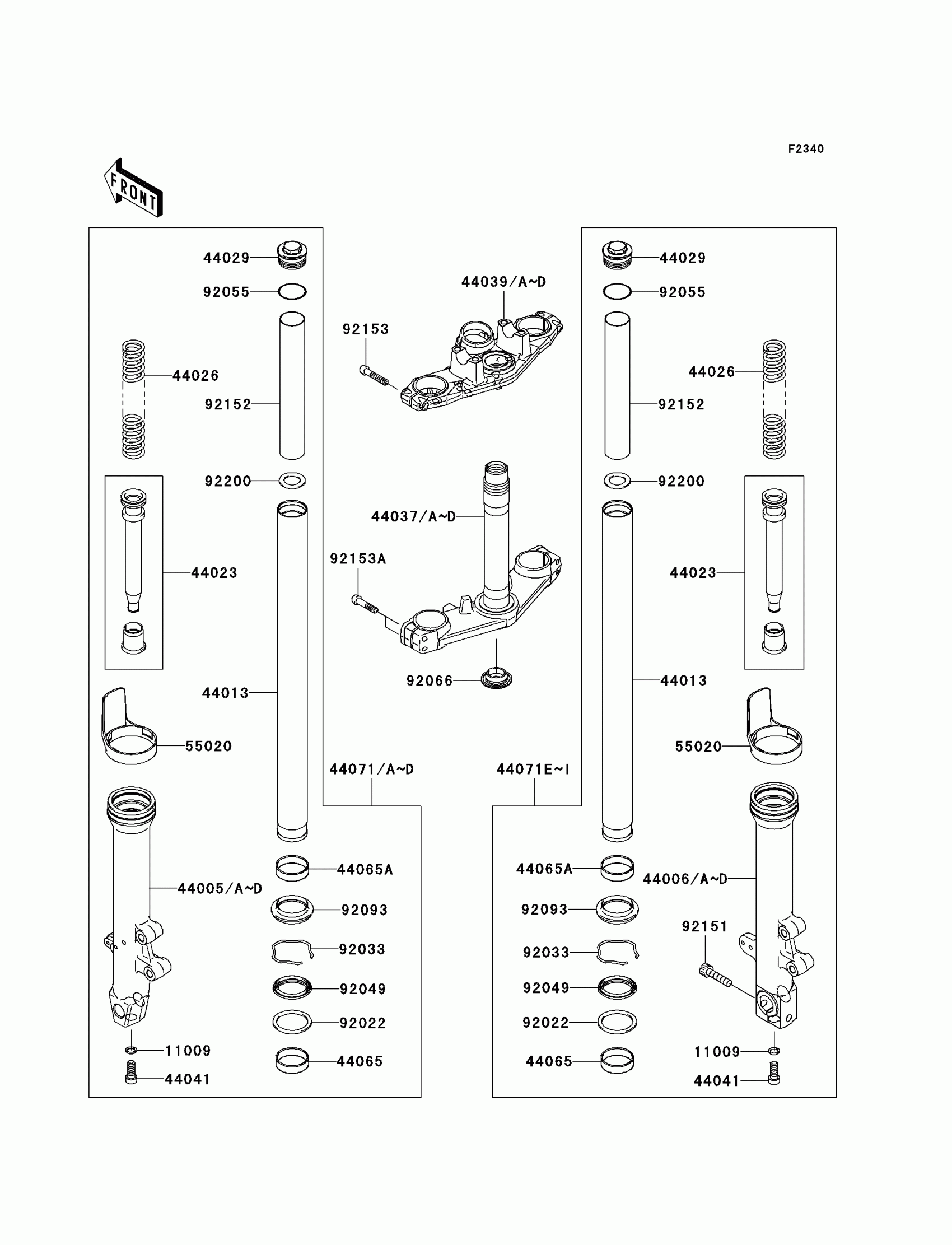

Kawasaki ER-6n (European) Front Fork Diagram

#

Description
Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005C

PIPE-LEFT FORK OUTER,M.BRONZE

44005-0045-793

Unavailable

44005D

PIPE-LEFT FORK OUTER,P.RED

44005-0045-796

$361.98

44006C

PIPE-RIGHT FORK OUTER,M.BRONZE

44006-0045-793

Unavailable

44006D

PIPE-RIGHT FORK OUTER,P.RED

44006-0045-796

$361.98

44013

PIPE-FORK INNER

44013-0055

$489.95

44023

CYLINDER-SET-FORK

44023-0040

$130.00

44026

SPRING-FRONT FORK

44026-0084

$71.13

44029

SEAT-FORK SPRING

44029-0005

$45.48

44037C

HOLDER-FORK UNDER,M.BRONZE

44037-0050-793

Unavailable

44037D

HOLDER-FORK UNDER,P.RED

44037-0050-796

$437.16

44039C

HOLDER-FORK UPPER,M.BRONZE

44039-0033-793

Unavailable

44039D

HOLDER-FORK UPPER,P.RED

44039-0033-796

$322.92

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$5.21

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$26.78

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$26.35

44071C

DAMPER-ASSY,FORK,LH,M.BRONZE

44071-0258-793

Unavailable

44071D

DAMPER-ASSY,FORK,LH,P.RED

44071-0258-796

$768.48

44071H

DAMPER-ASSY,FORK,RH,M.BRONZE

44071-0259-793

Unavailable

44071I

DAMPER-ASSY,FORK,RH,P.RED

44071-0259-796

$768.48

55020

GUARD,FORK

55020-1691

$9.53

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL

92049-0073

$21.04

92055

RING-O

92055-1321

$1.19

92066

PLUG

92066-0032

$11.19

92093

SEAL,FORK OUTER TUBE

92093-1472

$22.03

92151

BOLT,SOCKET,10X40

92151-1357

$3.59

92152

COLLAR,FORK

92152-0410

$14.03

92153

BOLT,SOCKET,8X40

92153-0506

$7.46

92153A

BOLT,SOCKET,8X35

92153-1472

$5.87

92200

WASHER

92200-1302

$4.32
