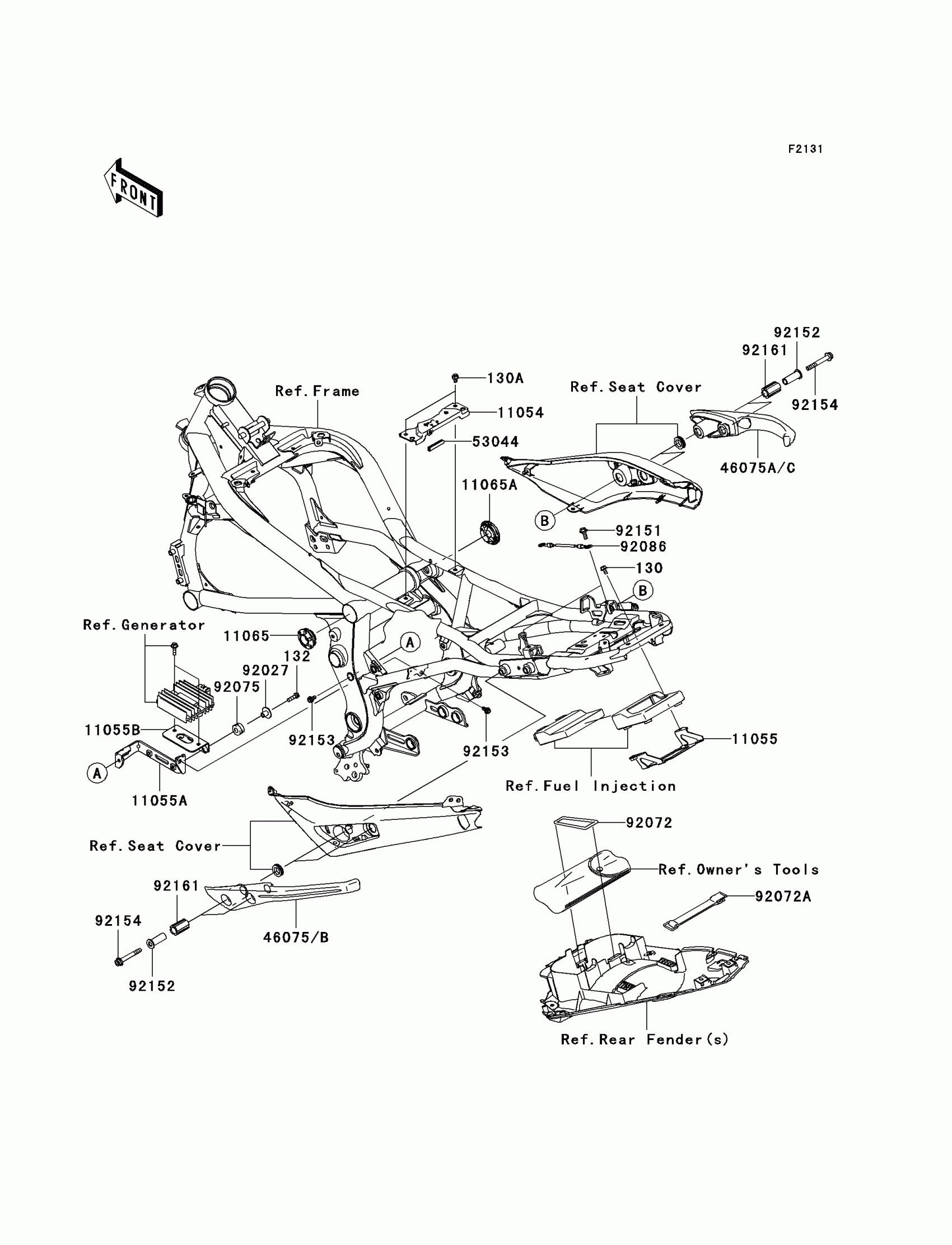

Kawasaki ER-6n (European) Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X10

130BB0610

$2.05

132

BOLT-FLANGED-SMALL,6X22

132BB0622

$1.93

11054

BRACKET,FUEL TANK

11054-0248

$21.58

11055

BRACKET,ECU

11055-0584

Unavailable

11055A

BRACKET,REGULATOR

11055-1131

$32.44

11055B

BRACKET,REGULATOR

11055-1137

$15.34

11065

CAP,PIVOT COVER,LH,P.SILVER

11065-0257-458

$11.58

11065A

CAP,PIVOT COVER,RH,P.SILVER

11065-0264-458

$11.25

46075B

GRIP,TANDEM,LH

46075-0097

$111.67

46075C

GRIP,TANDEM,RH

46075-0098

$111.67

53044

TRIM,L=40

53044-1174

$3.85

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.93

92072

BAND,TOOL

92072-0108

$3.29

92072A

BAND,L=150

92072-1203

$11.26

92075

DAMPER RUBBER,RR FENR

92075-209

$3.72

92086

WIRE,L=150

92086-1075

Unavailable

92151

BOLT,FLANGED,6X13

92151-1703

$3.14

92152

COLLAR

92152-0707

Unavailable

92153

BOLT,SOCKET,6X16

92153-1517

$2.15

92154

BOLT,SOCKET,8X60

92154-0259

$6.10

92161

DAMPER

92161-0663

$3.29
