2008 Kawasaki Er-6n (Australian) Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

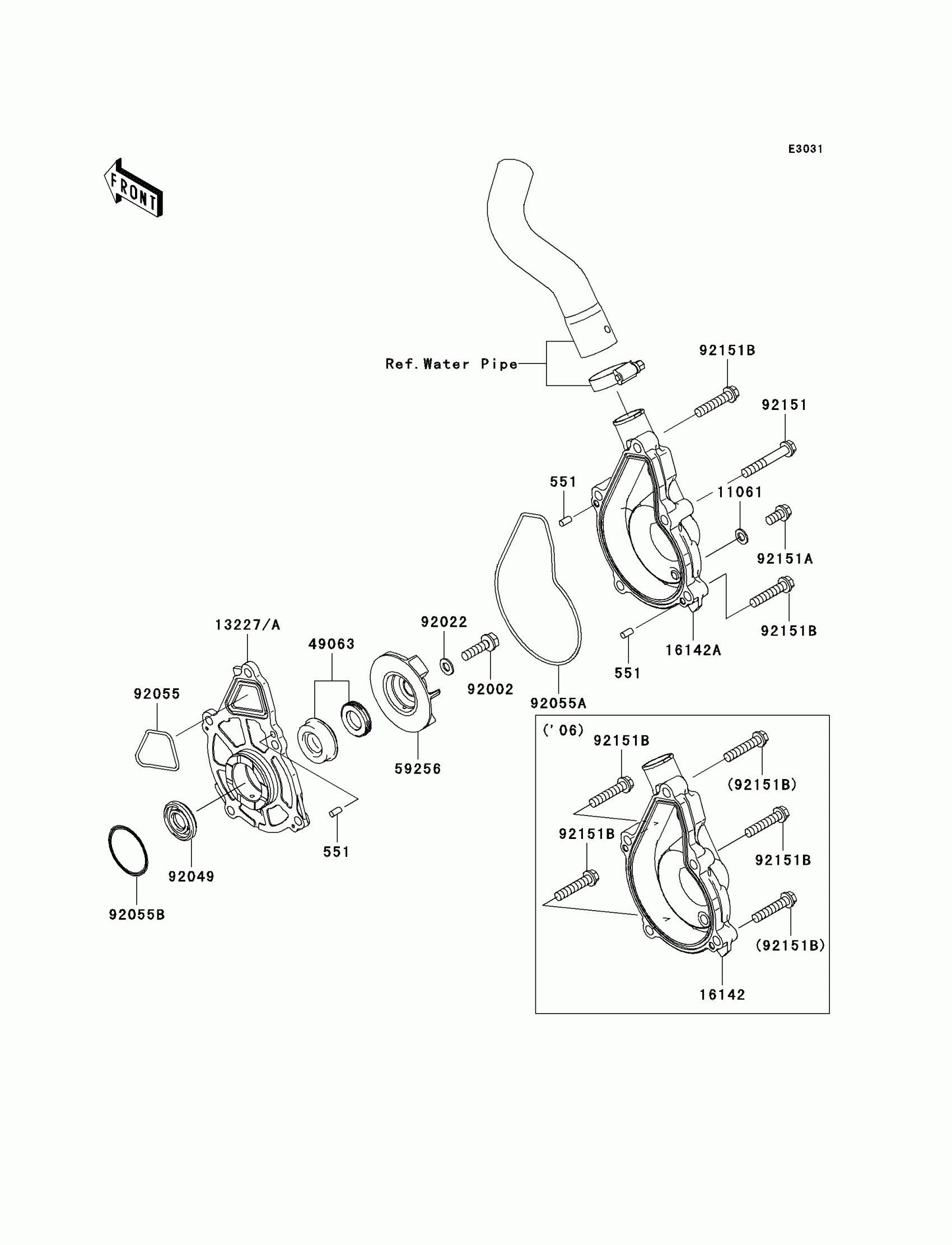

2008 Kawasaki Er-6n (Australian) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

11061

GASKET

11061-0107

1
Out of stock

13227A

HOUSING

13227-0012

1
Out of stock

16142A

COVER-PUMP

16142-0047

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0007

1
Out of stock

92002

BOLT,6X22

92002-1154

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92049

SEAL-OIL,SC12 28.555

92049-1259

1
Out of stock

92055

RING-O,CASE-HOUSING

92055-0082

1
Out of stock

92055A

RING-O,HOUSING-PUMP COVER

92055-0083

1
Out of stock

92055B

RING-O,33.2MM

92055-1155

1
Out of stock

92151

BOLT,6X40

92151-1131

1
Out of stock

92151A

BOLT,6X12

92151-1133

1
Out of stock

92151B

BOLT,6X30

92151-1134

1
Out of stock
