2008 Kawasaki Er-6n (Australian) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

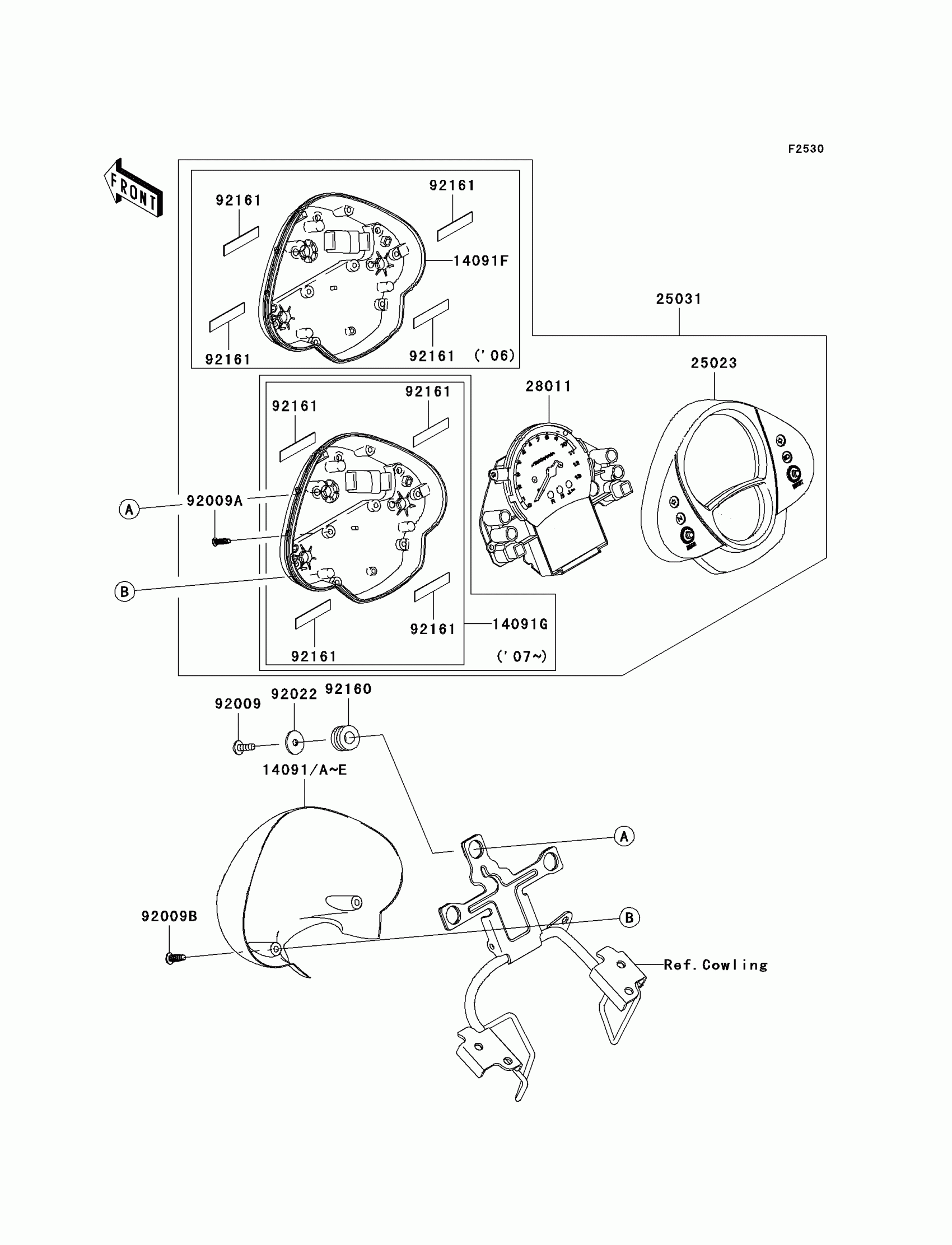

2008 Kawasaki Er-6n (Australian) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091A

COVER,METER,C.P.BLUE

14091-0465-15D

1

$57.92

In stock

14091B

COVER,METER,C.L.GREEN

14091-0465-15P

1
Out of stock

14091G

COVER,METER,LWR

14091-0600

1

$146.40

In stock

25023

1

$242.48

In stock

25031

METER-ASSY

25031-0111

1

$996.69

In stock

28011

METER,TACHO&LCD

28011-0033

1

$599.62

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92009A

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92009B

SCREW,TAPPING,4X14

92009-1593

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1

$3.43

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-0354

1

$1.59

In stock
