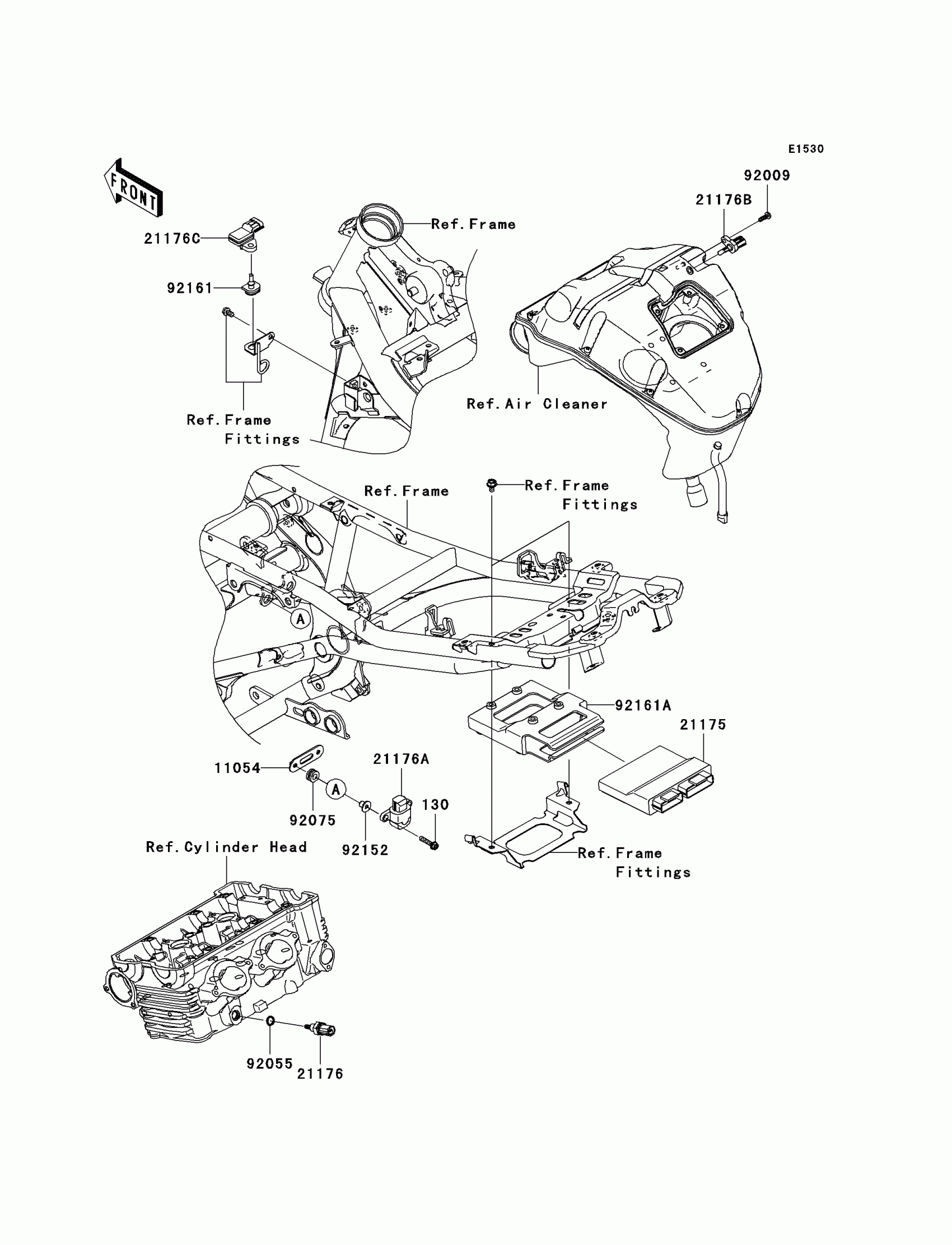

Kawasaki ER-6n (Australian) Fuel Injection Diagram

Description

Price

130

BOLT-FLANGED,5X25

130BB0525

$3.49

11054

BRACKET

11054-0133

$7.95

21175

CONTROL UNIT-ELECTRONIC

21175-0081

$784.75

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,PRESSURE

21176-0058

$126.04

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-0041

$4.59

92161A

DAMPER

92161-0179

$21.31
