2008 Kawasaki Er-6n (Australian) Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

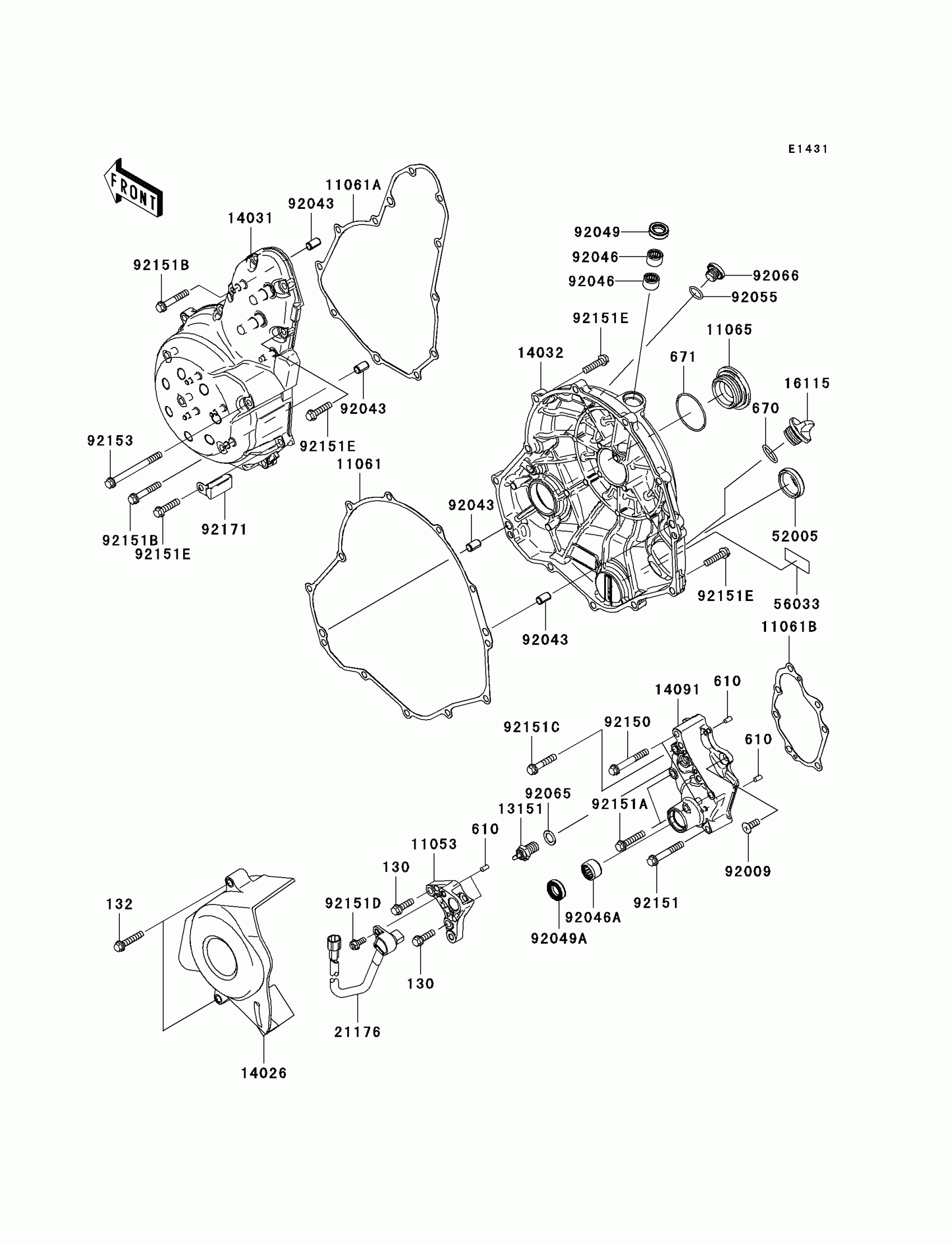

2008 Kawasaki Er-6n (Australian) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X20

130BA0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132BB0630

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

670

O RING,20MM

670B2020

1
Out of stock

671

O RING,40MM

671B2540

1
Out of stock

11053

BRACKET

11053-1739

1
Out of stock

11061

GASKET,CLUTCH COVER

11061-0164

1
Out of stock

11061A

GASKET,GENERATOR COVER

11061-0165

1
Out of stock

11061B

GASKET,TRANSMISSION COVER

11061-0166

1
Out of stock

11065

CAP

11065-0150

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1
Out of stock

14026

COVER-CHAIN

14026-0021

1
Out of stock

14031

COVER-GENERATOR

14031-0058

1
Out of stock

14032

COVER-CLUTCH

14032-0084

1
Out of stock

14091

COVER,TRANSMISSION

14091-0445

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1
Out of stock

21176

SENSOR,SPEED

21176-0065

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

56033

LABEL-MANUAL,OIL CAPACITY

56033-0131

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92049A

SEAL-OIL,TC13225.5

92049-1519

1
Out of stock

92055

RING-O,13.0X1.9

92055-1011

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG

92066-0073

1
Out of stock

92150

BOLT,6X45

92150-1884

1
Out of stock

92151

BOLT,6X40

92151-1131

1
Out of stock

92151A

BOLT,6X30

92151-1134

1
Out of stock

92151B

BOLT,6X35

92151-1135

1
Out of stock

92151C

BOLT,6X30

92151-1201

1
Out of stock

92151D

BOLT,FLANGED,5X12

92151-1305

1
Out of stock

92151E

BOLT,FLANGED-SMALL,6X25

92151-1930

1
Out of stock

92153

BOLT,FLANGED,6X70

92153-0018

1
Out of stock

92171

CLAMP

92171-0911

1
Out of stock
