2008 Kawasaki Er-6n (Australian) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2008 Kawasaki Er-6n (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

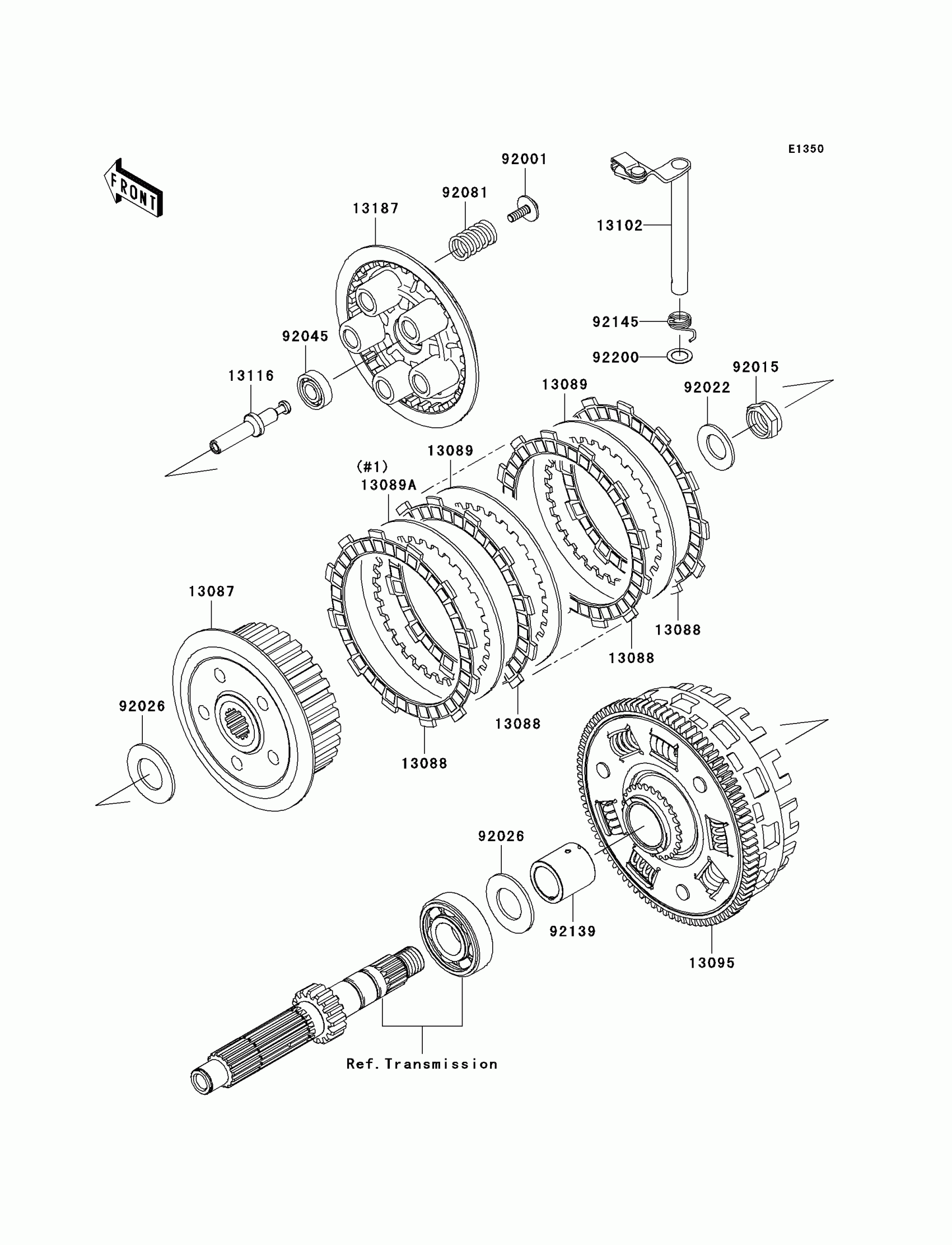

2008 Kawasaki Er-6n (Australian) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-042

1
Out of stock

13088

PLATE-FRICTION

13088-1105

1
Out of stock

13089

PLATE-CLUTCH,T=2.3

13089-0016

1
Out of stock

13089A

PLATE-CLUTCH,T=2.6

13089-0017

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0059

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-0021

1
Out of stock

13116

ROD-PUSH

13116-0018

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1006

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92045

BEARING-BALL,6001C3ML01

92045-1235

1
Out of stock

92081

SPRING,CLUTCH

92081-1033

1
Out of stock

92139

BUSHING

92139-0106

1
Out of stock

92145

SPRING,CLUTCH RELEASE

92145-0066

1
Out of stock

92200

WASHER,12X18.5X0.5

92200-1487

1
Out of stock
