Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1524

$7.15

13091

HOLDER,LICENSE

13091-1379

Unavailable

23008

SOCKET-ASSY,LICENSE L

23008-1271

Unavailable

23016

LAMP-ASSY,LICENSE

23016-1065

$63.61

23025

LAMP-TAIL

23025-1123

Unavailable

23026

LENS,TAIL LAMP

23026-1068

Unavailable

23026A

LENS,LICENSE LAMP

23026-1069

$17.46

23027

BODY-COMP-TAIL LAMP

23027-1062

Unavailable

92001

BOLT,6X14,BLACK

92001-1847

$3.58

92009

SCREW,TAPPING,4X30

92009-1056

$3.92

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$6.19

92069A

BULB,12V 3.4W,T10

92069-1007

$3.81

92075

DAMPER

92075-035

$3.51

92075A

DAMPER,10X24X12

92075-1690

$3.81

220

SCREW-PAN-CROS,4X20

220C0420

Unavailable

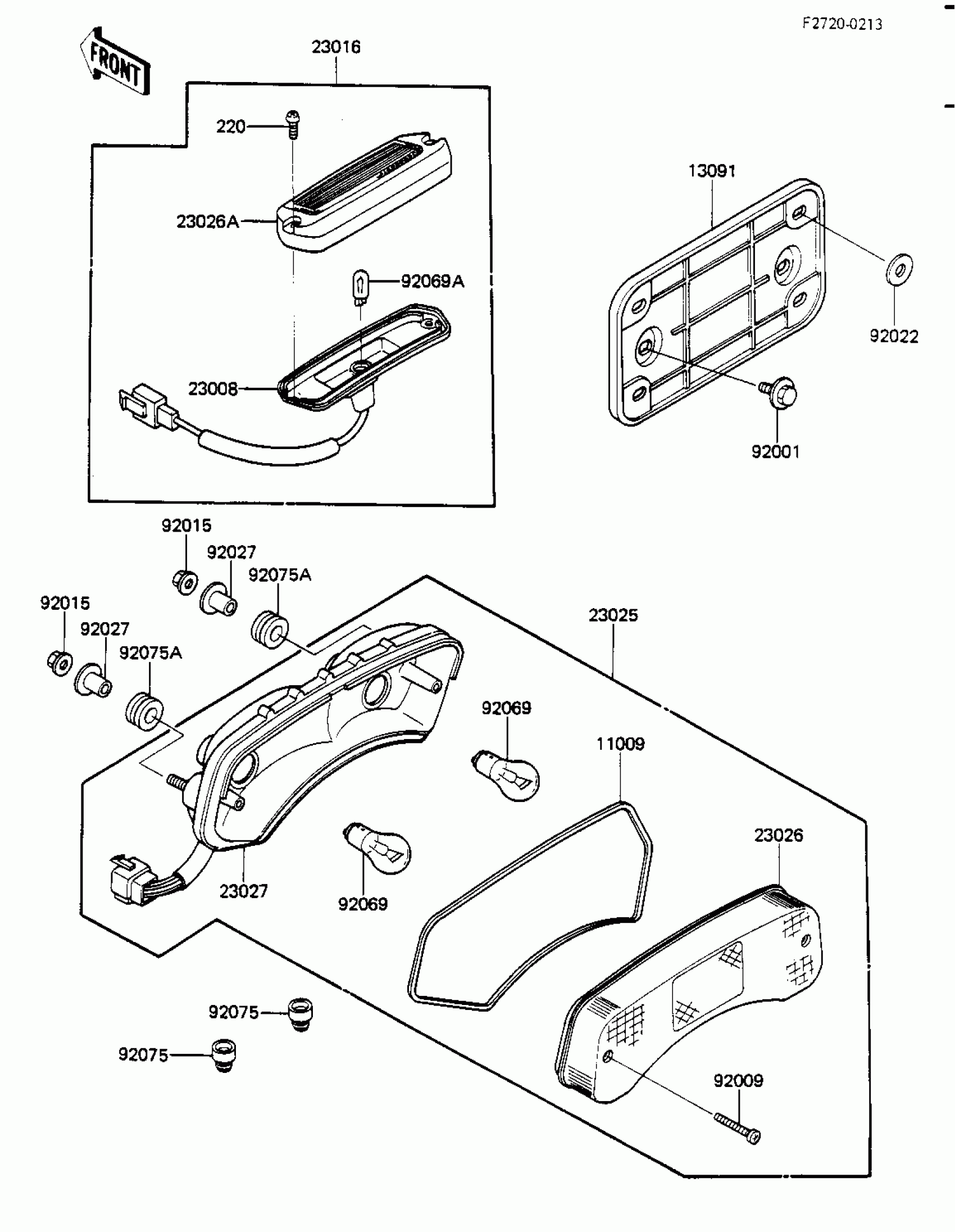

Kawasaki Eliminator TAILIGHT Diagram

GASKET,TAIL LAMP LENS

HOLDER,LICENSE

SOCKET-ASSY,LICENSE L

LAMP-ASSY,LICENSE

LAMP-TAIL

LENS,TAIL LAMP

LENS,LICENSE LAMP

BODY-COMP-TAIL LAMP

BOLT,6X14,BLACK

SCREW,TAPPING,4X30

NUT,FLANGED,6MM

WASHER,6.5X20X1.6,BLACK

COLLAR,L=13.1

BULB,12V 27/8W

BULB,12V 3.4W,T10

DAMPER

DAMPER,10X24X12

SCREW-PAN-CROS,4X20
