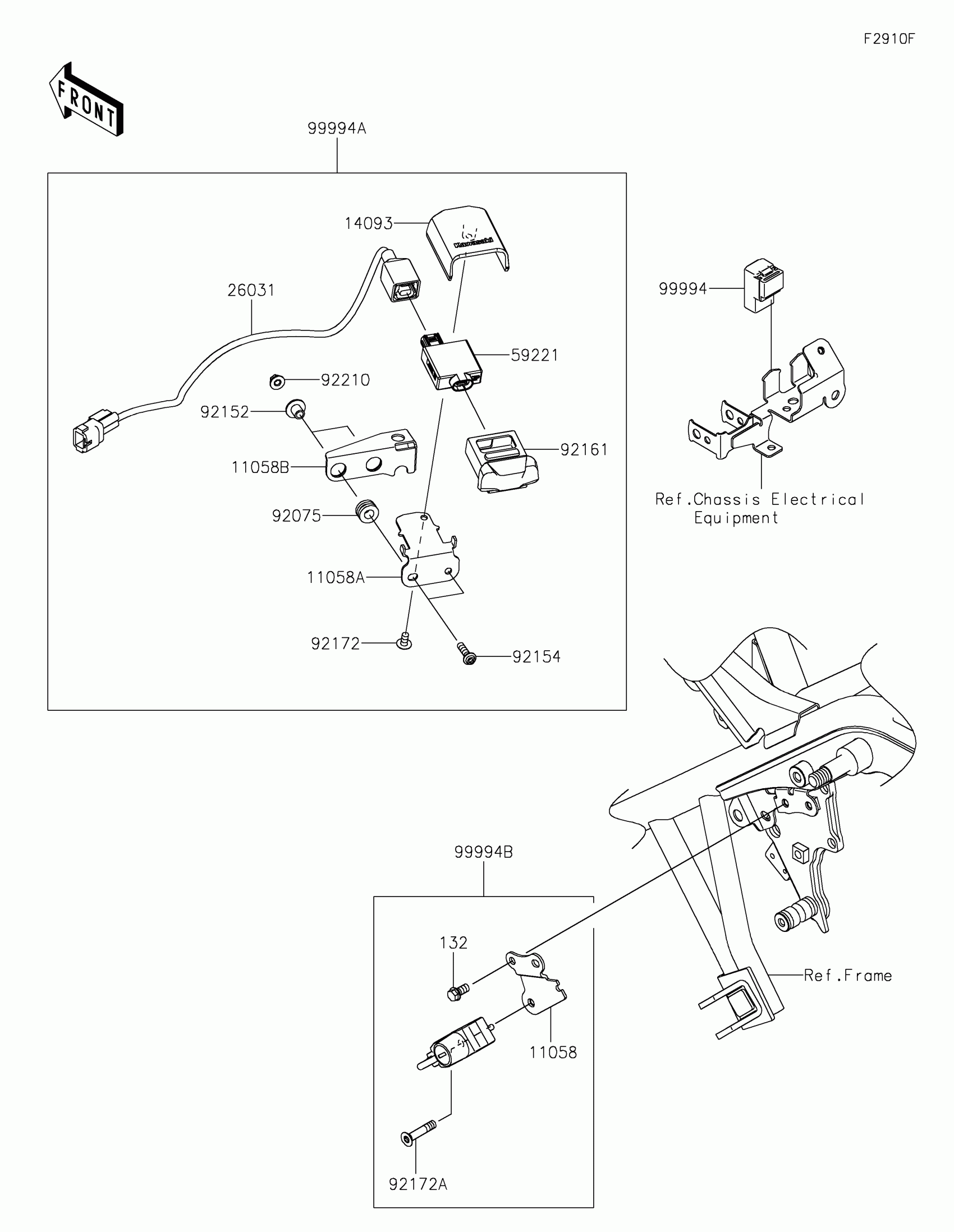

Kawasaki Eliminator ABS Accessory(Helmet Lock and USB) Diagram

Description

Price

11058

BRACKET

11058-0594

$4.85

11058A

BRACKET

11058-0605

$4.08

11058B

BRACKET

11058-0606

$4.46

14093

COVER,USB

14093-1458

$4.80

26031

HARNESS,USB CHARGER

26031-3972

$23.95

59221

CONNECTOR-CORD,USB TYPE-C

59221-0022

$87.41

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0134

$7.54

92154

BOLT,SOCKET,5X20

92154-0829

$1.89

92161

DAMPER

92161-2497

$9.59

92172

SCREW,5X10

92172-1194

$1.20

92172A

SCREW,HEXLOBE,6X30

92172-1378

$1.78

92210

NUT,FLANGED,5MM

92210-0007

$1.90

99994

ACC-RELAY

99994-1727

$25.29

99994A

USB OUTLET TYPE-C

99994-1906

$90.37

99994B

HELMET LOCK

99994-1908

$142.06

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97
