1997 Kawasaki Eliminator 600 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1997 Kawasaki Eliminator 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

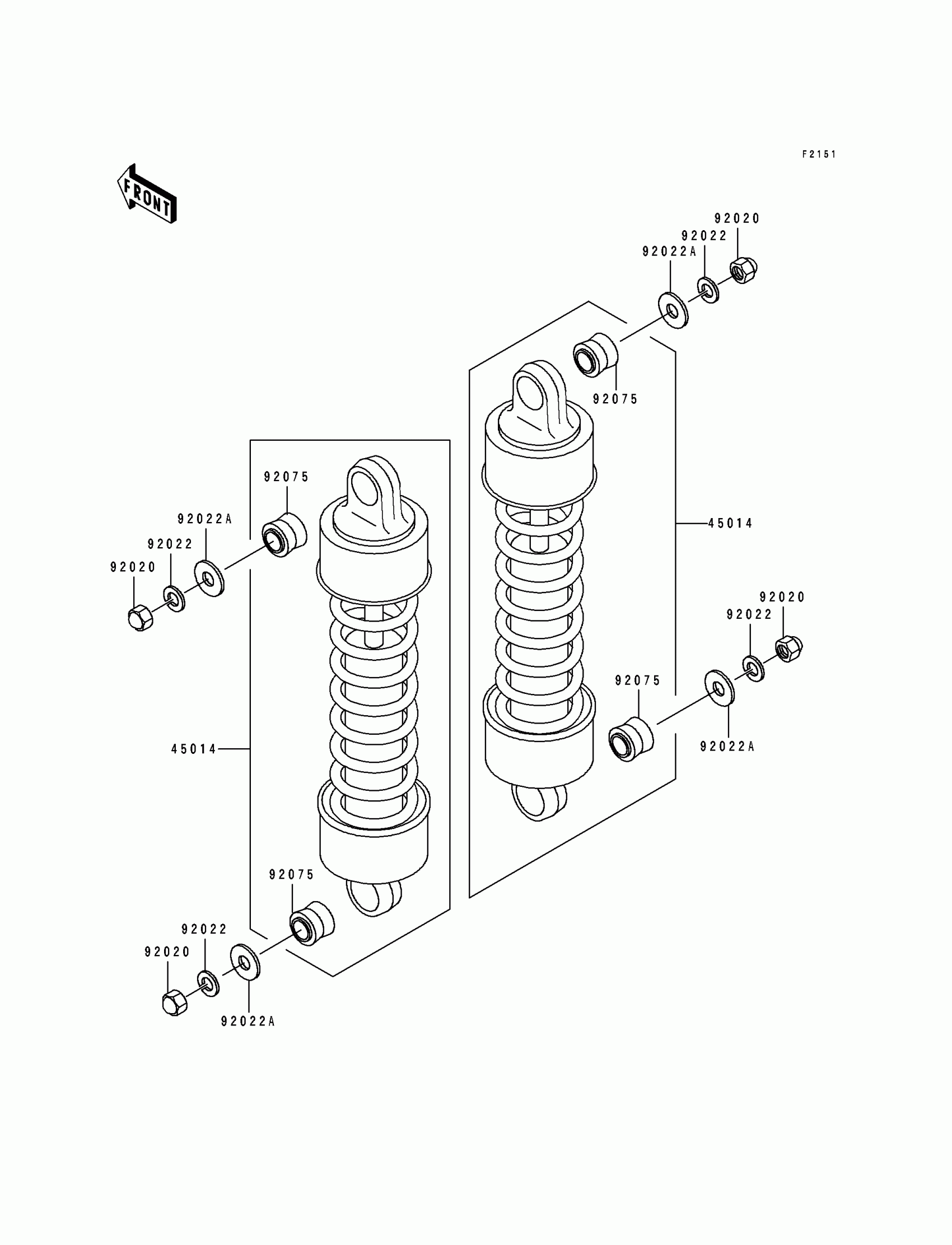

1997 Kawasaki Eliminator 600 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER

45014-1608

1
Out of stock

92020

NUT,CAP,10MM

92020-003

1
Out of stock

92022

WASHER,SPRING,10MM

92022-1540

1
Out of stock

92022A

WASHER,10.5X26X2.3

92022-246

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1387

1
Out of stock
