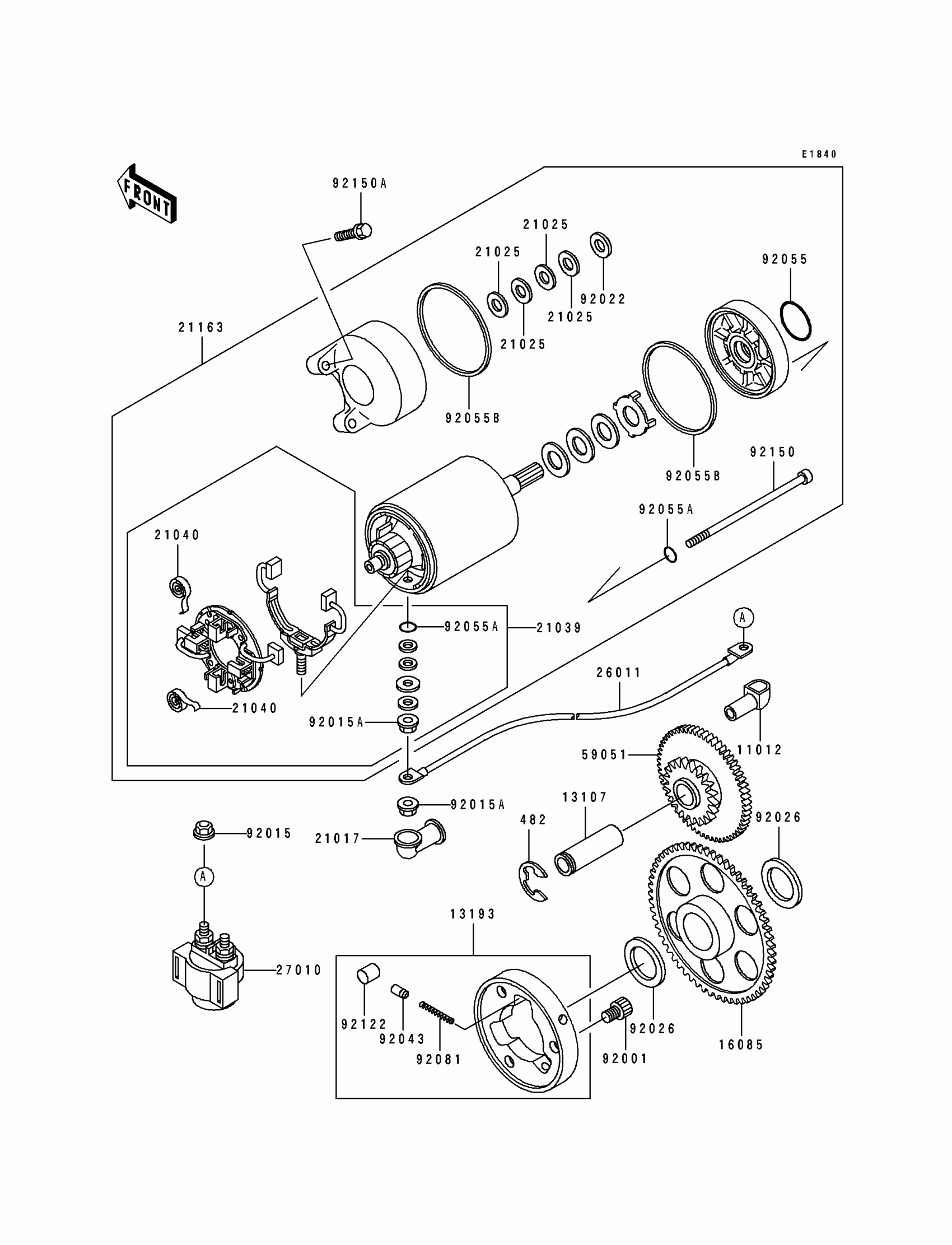

Kawasaki Eliminator 600 Starter Motor Diagram

#

Description
Price

11012

CAP,TERMINAL

11012-1354

$9.85

13107

SHAFT,IDLE GEAR

13107-1144

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$104.26

16085

GEAR,ONEWAY CLUTCH

16085-1030

$131.93

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-1062

$88.27

21040

SPRING-BRUSH

21040-1057

$8.24

21163

STARTER-ELECTRIC

21163-1230

Unavailable

26011

WIRE-LEAD,STARTER MOTOR

26011-1251

$79.27

27010

SWITCH,STARTER

27010-1314

$40.41

59051

GEAR-SPUR,IDLE

59051-1138

Unavailable

92001

BOLT,SOCKET,8X10

92001-1424

$4.42

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,25X36X3.2

92026-1025

$5.37

92043

PIN

92043-132

$4.67

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92081

SPRING,COIL

92081-159

$2.72

92122

ROLLER

92122-006

$4.67

92150

BOLT

92150-1243

$10.49

92150A

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

482

CIRCLIP-TYPE-E

482J0300

Unavailable
