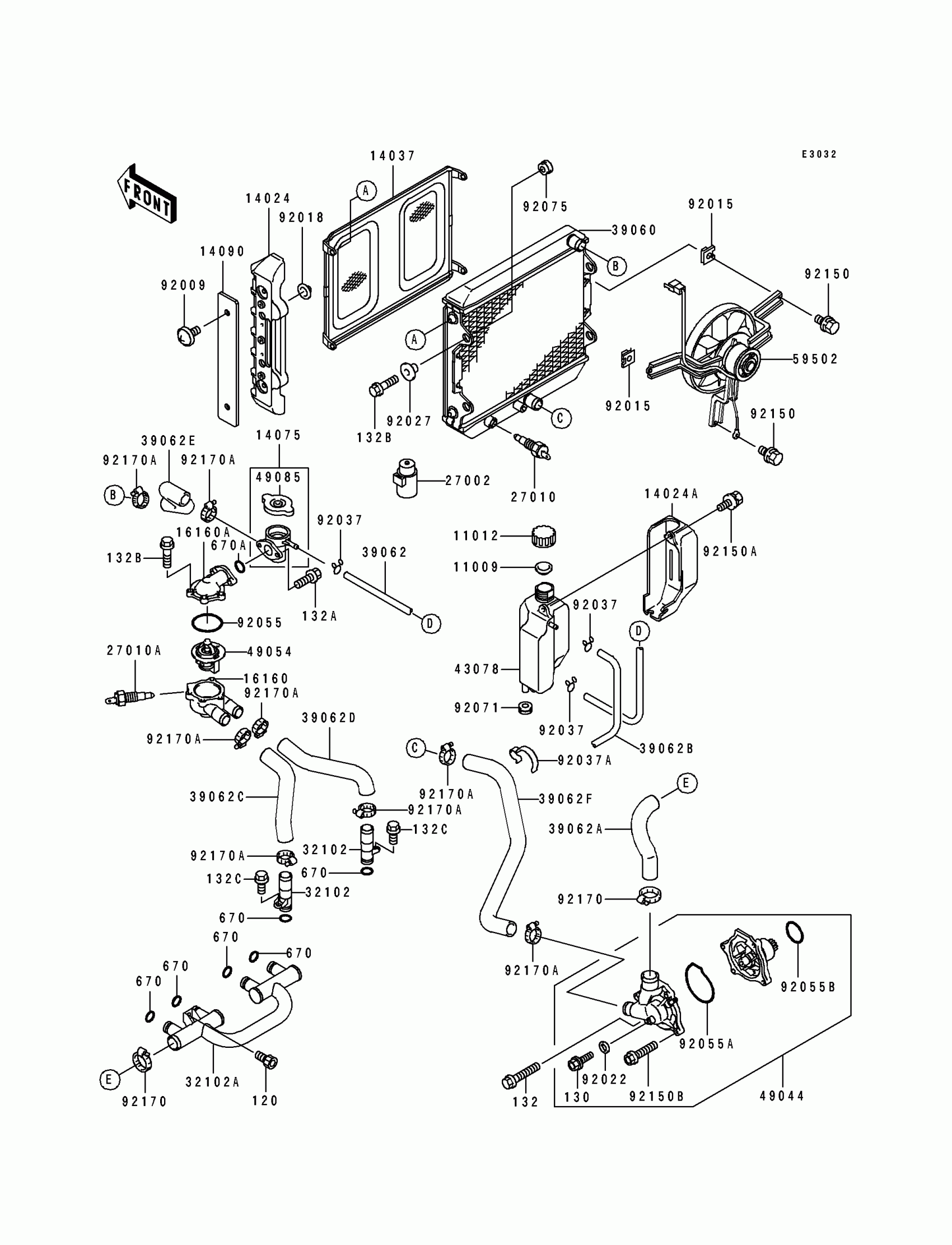

Kawasaki Eliminator 600 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14024

COVER,RADIATOR

14024-1221

Unavailable

14024A

COVER,RESERVOIR

14024-1222

Unavailable

14037

SCREEN

14037-1080

$94.61

14075

CAP-ASSY,RADIATOR

14075-1085

$151.81

14090

COVER,RADIATOR

14090-1613

Unavailable

16160

BODY,THERMOSTAT,LWR

16160-1112

$75.58

16160A

BODY,THERMOSTAT,UPP

16160-1113

$65.05

27002

RELAY-ASSY

27002-1051

$48.39

27010

SWITCH,FAN

27010-1167

$119.71

27010A

SWITCH,SENSOR WATER

27010-1239

$136.56

32102

PIPE

32102-1043

$40.22

32102A

PIPE

32102-1893

Unavailable

39060

RADIATOR

39060-1070

$904.57

39062

HOSE-COOLING,5.5X10.5X950

39062-1069

Unavailable

39062A

HOSE-COOLING,PUMP-CYLINDER

39062-1111

$38.86

39062B

HOSE-COOLING

39062-1125

$21.40

39062C

HOSE-COOLING,HEAD-THERMO,LH

39062-1178

Unavailable

39062D

HOSE-COOLING,HEAD-THERMO,RH

39062-1179

Unavailable

39062E

HOSE-COOLING,CAP-RADIATOR

39062-1180

$23.90

39062F

HOSE-COOLING,RADIATOR-PUMP

39062-1181

Unavailable

43078

RESERVOIR

43078-1072

Unavailable

49044

PUMP-WATER

49044-1077

Unavailable

49054

THERMOSTAT

49054-1055

$48.15

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59502

FAN-ASSY

59502-1075

$692.90

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92015

NUT

92015-1487

$3.64

92018

NUT,PUSH,3MM

92018-005

$1.95

92022

WASHER,6MM

92022-1976

$5.46

92027

COLLAR

92027-194

$4.18

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,HOSE

92037-1552

$9.63

92055

RING-O,44.7X2.4

92055-1279

$5.61

92055A

RING-O,WATER PUMP

92055-1315

$12.71

92055B

RING-O,33.2X2.4

92055-1424

$4.71

92071

GROMMET

92071-1115

$4.14

92075

DAMPER

92075-277

$1.90

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,6X16

92150-1198

$3.69

92150B

BOLT,6X22

92150-1379

$4.32

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

92170A

CLAMP,COOLING HOSE

92170-1285

$16.99

120

BOLT-SOCKET,6X12

120P0612

Unavailable

130

BOLT-FLANGED,6X10

130C0610

Unavailable

132

BOLT-FLANGED-SMALL,6X45

132E0645

$4.61

132A

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132B

BOLT-FLANGED-SMALL

132G0620

Unavailable

132C

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

670

O RING,16MM

670B2016

$1.04

670A

O RING,20MM

670B2020

$0.97
