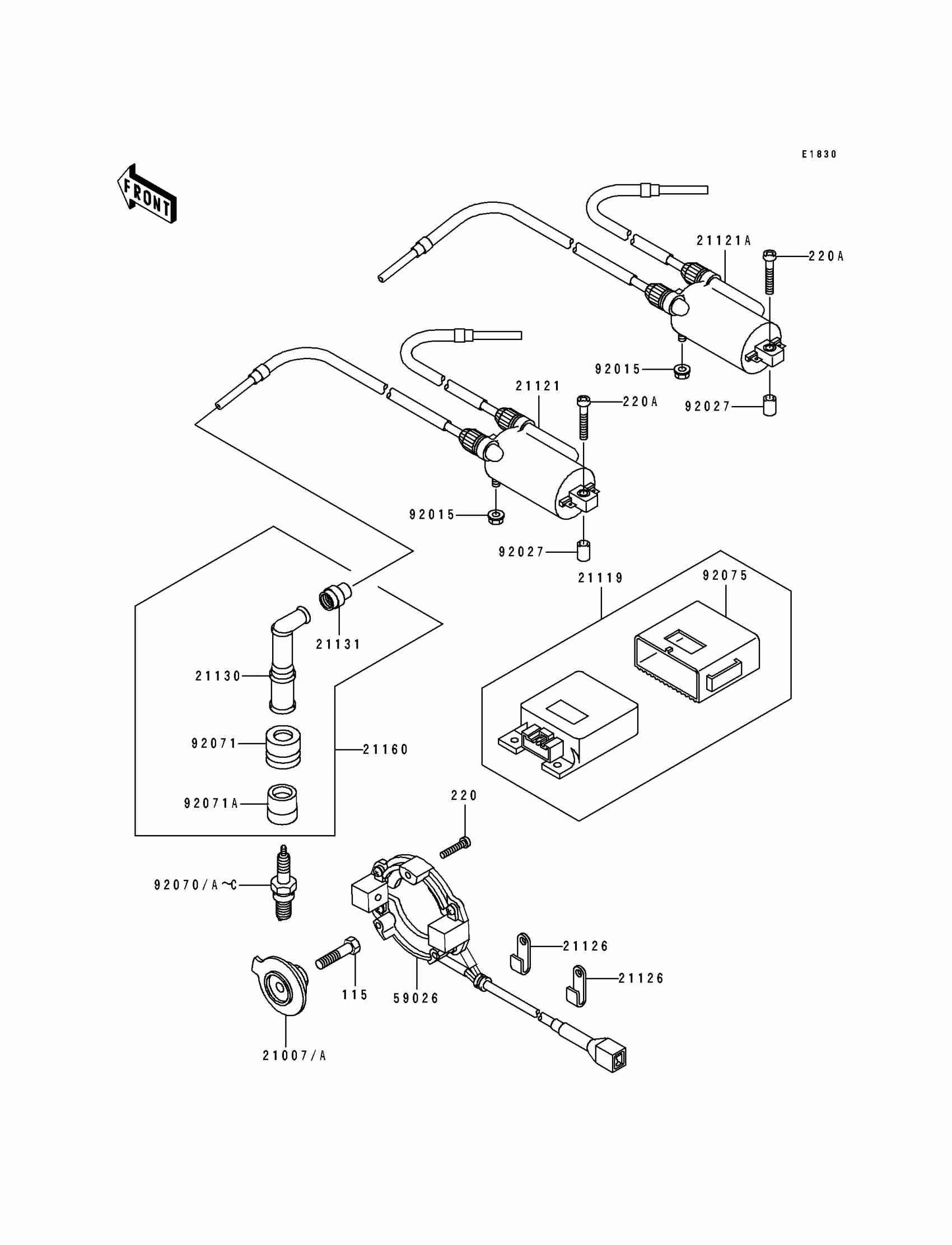

Kawasaki Eliminator 600 Ignition System Diagram

#

Description
Price

21007

ROTOR,PULSING COIL

21007-1130

Unavailable

21007A

ROTOR,PULSING COIL

21007-1135

Unavailable

21119

IGNITER

21119-1167

$604.69

21121

COIL-IGNITION,#1

21121-1144

$184.84

21121A

COIL-IGNITION,#2

21121-1145

$184.84

21126

CLAMP,WIRING HARNESS

21126-008

$3.60

21130

CAP-SPARK PLUG

21130-1068

$42.67

21131

GROMMET,HIGH TENSION

21131-005

$4.64

21160

CAP-ASSY-PLUG

21160-1076

$76.77

59026

COIL-PULSING

59026-1078

$192.63

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92027

COLLAR,6.3X10X14

92027-1453

$4.42

92070

PLUG-SPARK,D8EA(NGK)

92070-1011

Unavailable

92070A

Not Available As Spare Part - Friction Washer

Unavailable

92070B

PLUG-SPARK,D9EA(NGK)

92070-1034

$2.63

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET

92071-1174

$9.17

92071A

GROMMET,PLUG CAP

92071-1184

$5.37

92075

DAMPER,IGNITER

92075-1504

$39.52

115

BOLT-SMALL-UPSET

115G0835

Unavailable

220

SCREW-PAN-CROS,5X25

220B0525

$3.24

220A

SCREW PAN HEAD 6X35

220B0635

$1.24
