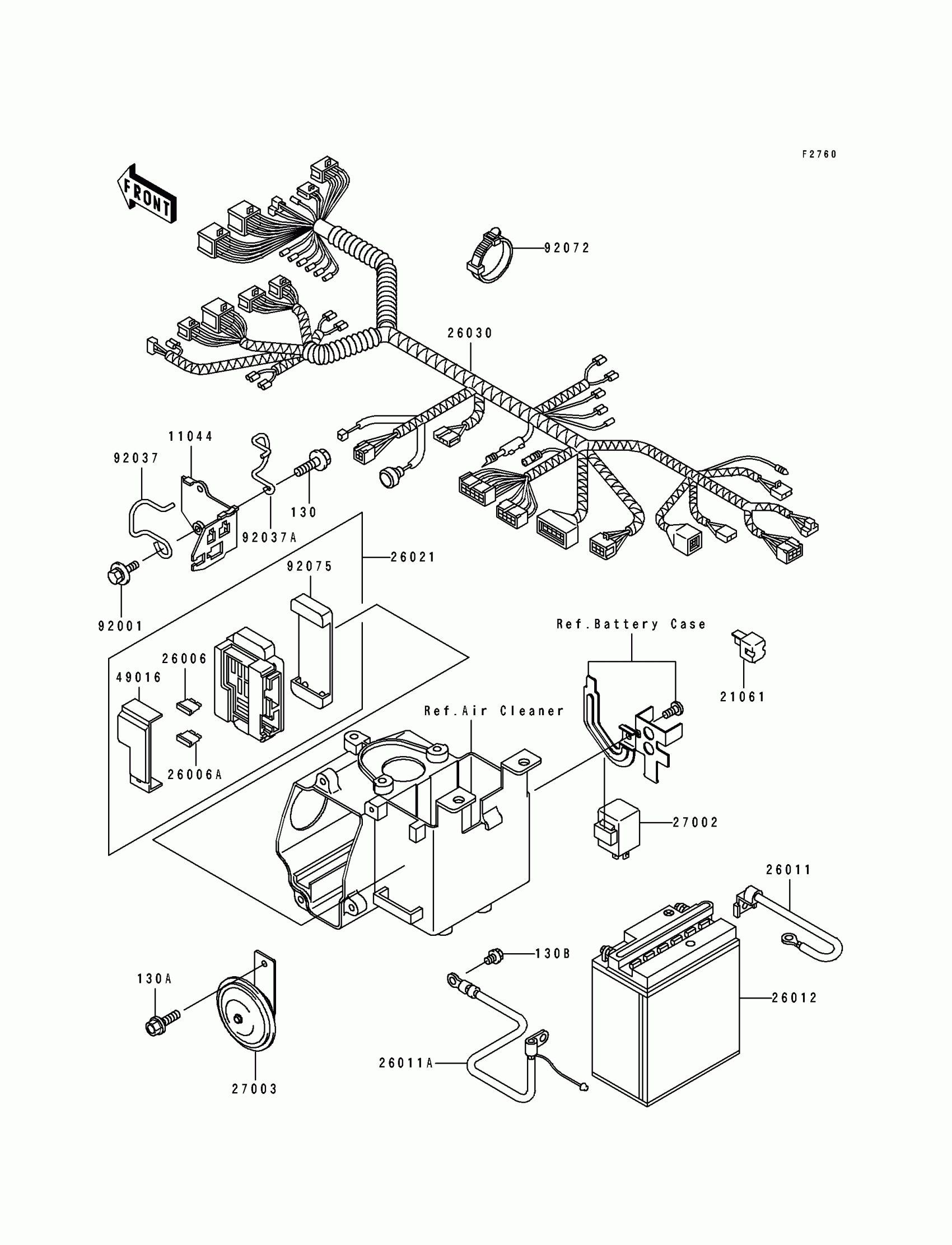

Kawasaki Eliminator 600 Chassis Electrical Equipment Diagram

Description

Price

11044

BRACKET,COUPLER

11044-1879

Unavailable

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1356

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1632

$21.73

26012

BATTERY,12V 10AH,YB12A-AK

26012-1163

$50.30

26021

JUNCTION BOX

26021-1093

$161.28

26030

HARNESS,MAIN

26030-1413

Unavailable

27002

RELAY-ASSY,SIGNAL LAMP

27002-1092

$73.74

27003

HORN

27003-1336

Unavailable

49016

COVER-SEAL,FUSE

49016-1176

Unavailable

92001

BOLT,6X20

92001-1765

$4.10

92037

CLAMP,LH

92037-1756

$8.07

92037A

CLAMP,HARNESS,RH

92037-1815

Unavailable

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

130

BOLT-FLANGED,6X16

130H0616

Unavailable

130A

BOLT-FLANGED,6X12

130J0612

Unavailable

130B

BOLT-FLANGED,6X10

130V0610

Unavailable
