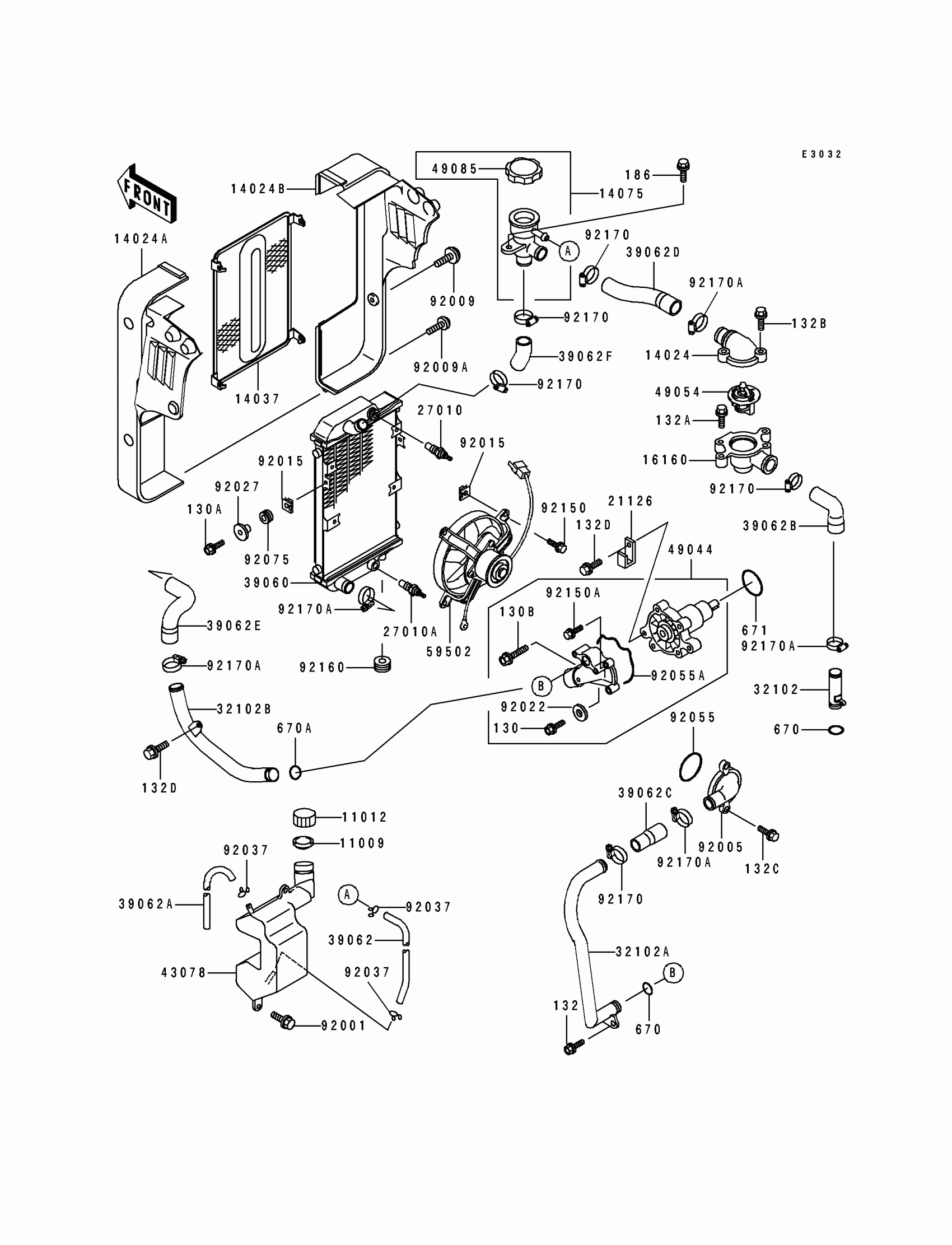

Kawasaki Eliminator 250 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14024

COVER,THERMOSTAT

14024-1232

$62.46

14024A

COVER,RADIATOR,LH

14024-1755

Unavailable

14024B

COVER,RADIATOR,RH

14024-1756

Unavailable

14037

SCREEN

14037-1093

Unavailable

14075

CAP-ASSY,RADIATOR

14075-1072

Unavailable

16160

BODY,THERMOSTAT

16160-1139

$23.69

21126

CLAMP,WIRING HARNESS

21126-008

$3.60

27010

SWITCH

27010-1173

$125.49

27010A

SWITCH,THERMOSTAT

27010-1304

$91.29

32102

PIPE,HEAD-THERMOSTAT

32102-1021

$25.24

32102A

PIPE,PUMP-CYLINDER

32102-1624

$50.54

32102B

PIPE,RADIATOR-PUMP

32102-1625

$34.75

39060

RADIATOR

39060-1086

$691.64

39062

HOSE-COOLING,5.5X10.5X950

39062-1069

Unavailable

39062A

HOSE-COOLING,5.5X10.5X300

39062-1110

$38.54

39062B

HOSE-COOLING,HEAD-THERMOSTAT

39062-1170

$20.61

39062C

HOSE-COOLING,PUMP-CYLINDER

39062-1246

$11.27

39062D

HOSE-COOLING,THERMOSTAT-CAP

39062-1247

Unavailable

39062E

HOSE-COOLING,RADIATOR-PUMP

39062-1248

Unavailable

39062F

HOSE-COOLING,CAP-RADIATOR

39062-1249

Unavailable

43078

RESERVOIR

43078-1088

Unavailable

49044

PUMP-WATER

49044-1064

$311.04

49054

THERMOSTAT

49054-1058

$62.23

49085

CAP-ASSY-PRESSURE

49085-1067

$47.60

59502

FAN-ASSY

59502-1073

$454.26

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92005

FITTING,CYLINDER

92005-1145

$33.58

92009

SCREW,6X10

92009-1402

$1.73

92009A

SCREW,TAPPING,5X30

92009-1488

$3.66

92015

NUT

92015-1487

$3.64

92022

WASHER,6MM

92022-1976

$5.46

92027

COLLAR

92027-1767

$4.18

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,27.7X2.4

92055-091

$4.67

92055A

RING-O

92055-1432

$9.04

92075

DAMPER

92075-1680

$5.51

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT

92150-1562

$4.08

92160

DAMPER

92160-1007

$4.18

92170

CLAMP,COOLING HOSE

92170-1033

$11.50

92170A

CLAMP,HOSE,32MM

92170-1286

Unavailable

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

130B

BOLT-FLANGED,6X35

130J0635

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

132A

BOLT-FLANGED-SMALL

132G0612

Unavailable

132B

BOLT-FLANGED-SMALL

132G0625

Unavailable

132C

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

132D

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

186

BOLT-UPSET-WP,6X14

186C0614

Unavailable

670

O RING,16MM

670B2016

$1.04

670A

O RING,18MM

670B2018

$1.08

671

O RING

671D2535

$4.67
