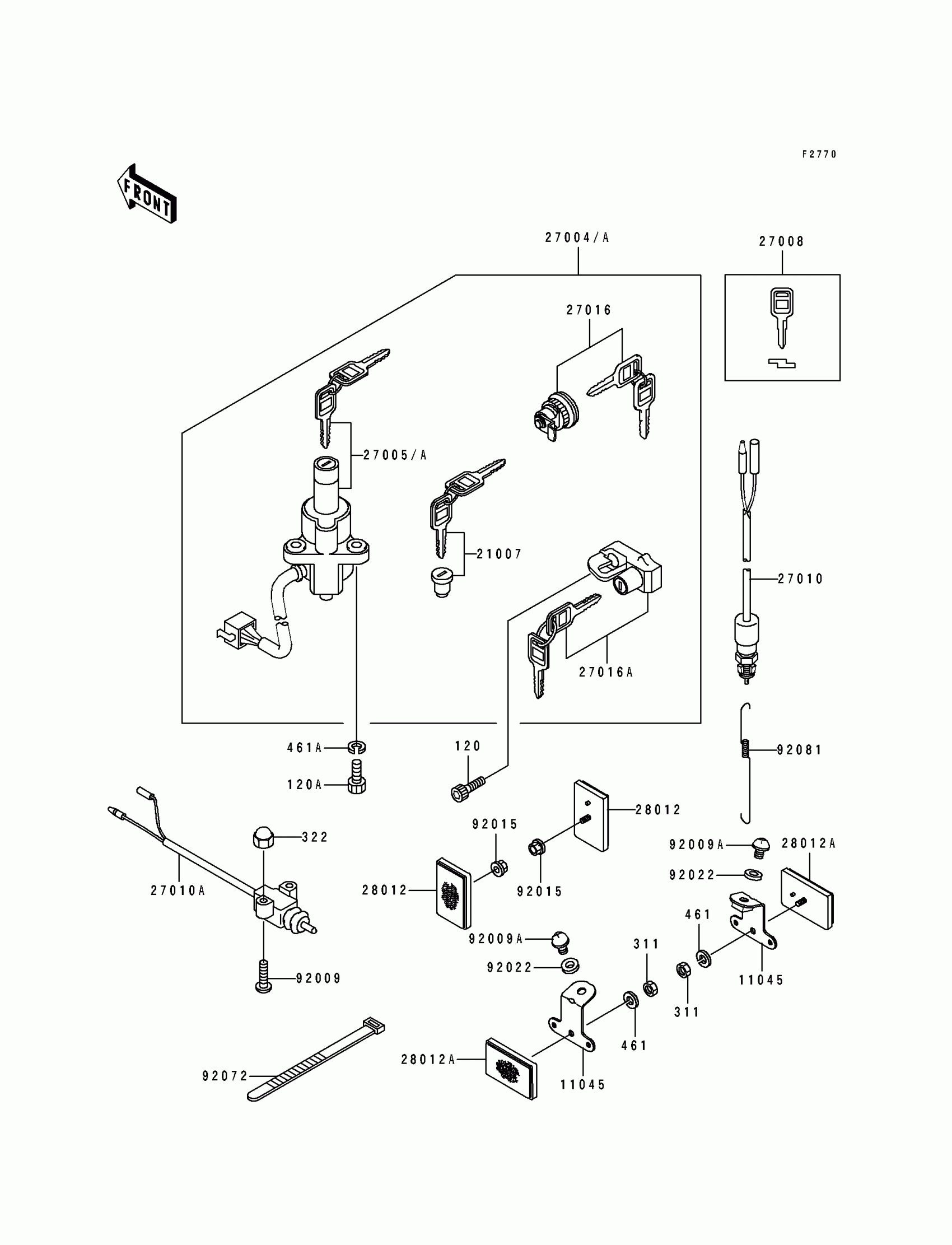

Kawasaki Eliminator 250 Ignition Switch/Locks/Reflectors Diagram

Description

Price

11045

BRACKET,REFLECTOR

11045-1989

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5005

$101.48

27004A

SWITCH-ASSY

27004-5468

Unavailable

27005A

SWITCH-ASSY-IGNITION

27005-5106

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE LAMP

27010-1152

$26.58

27010A

SWITCH,SIDE STAND

27010-1223

$73.52

27016

LOCK-ASSY,TOOL BOX

27016-5136

Unavailable

27016A

LOCK-ASSY,HELMET

27016-5137

$43.07

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

92009

SCREW,5X20

92009-1459

$3.92

92009A

SCREW,6X14

92009-1611

$4.08

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92022

WASHER,6.5X16X1

92022-1143

$2.99

92072

BAND,L=202

92072-1195

$1.16

92081

SPRING,BRAKE LAMP SWITCH

92081-1146

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET,8X22

120T0822

Unavailable

311

NUT-HEX

311B0500

$0.47

322

NUT-CAP

322C0500

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER-SPRING

461L0800

Unavailable
