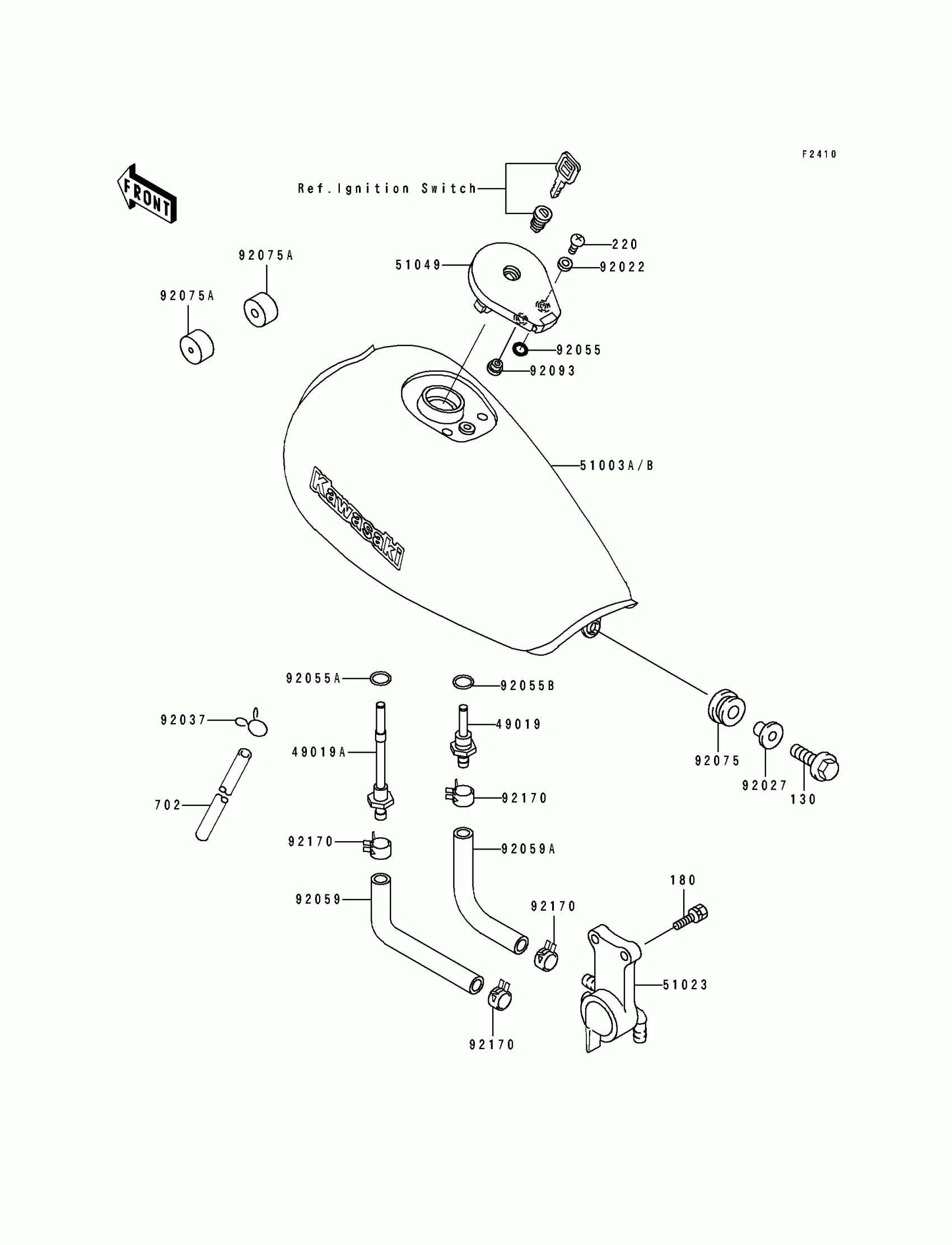

Kawasaki Eliminator 250 Fuel Tank Diagram

Description

Price

49019

FILTER-FUEL,RES

49019-1057

$10.90

49019A

FILTER-FUEL,"ON"

49019-1058

$17.90

51003A

TANK-COMP-FUEL,RED/ROSE

51003-5193-HF

Unavailable

51023

TAP-ASSY,FUEL

51023-1145

$143.98

51049

CAP-TANK,FUEL

51049-1088

$112.77

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=14.1

92027-1920

$5.12

92037

CLAMP

92037-1712

$3.81

92055

RING-O

92055-1023

$2.99

92055A

RING-O,ID=9.5

92055-1386

$2.99

92055B

RING-O,11.5X1.5

92055-1387

$2.99

92059

TUBE,"ON"

92059-1831

$8.97

92059A

TUBE,"RES"

92059-1832

$6.62

92075

DAMPER

92075-1057

$3.74

92075A

DAMPER,FUEL TANK

92075-125

$4.67

92170

CLAMP

92170-2043

$0.93

130

BOLT-FLANGED,6X25

130B0625

Unavailable

180

BOLT-UPSET-WS

180B0608

$2.58

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X800

702A07800

$10.11
