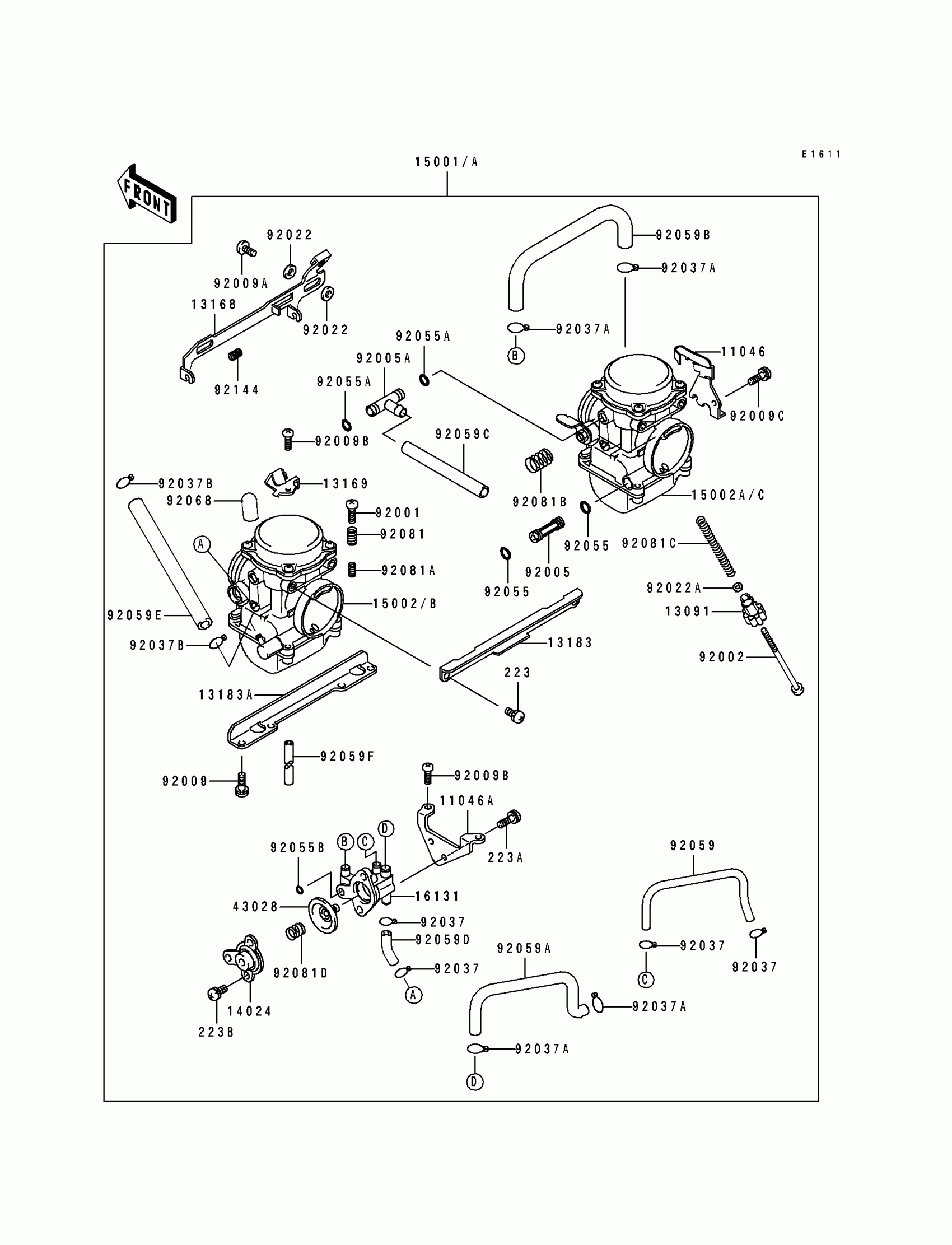

Kawasaki Eliminator 250 Carburetor Diagram

#

Description
Price

11046

BRACKET,THROTTLE CABLE

11046-1081

Unavailable

11046A

BRACKET,AIR CUT VALVE

11046-1082

Unavailable

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$16.31

13168

LEVER,STARTER

13168-1330

$72.38

13169

PLATE,STARTER CABLE

13169-1965

$40.89

13183

PLATE,CARBURETOR STAY,UPP

13183-1029

$75.47

13183A

PLATE,CARBURETOR STAY,LWR,6MM

13183-1030

Unavailable

14024

COVER,AIR CUT VALVE

14024-1327

$65.00

15001

CARBURETOR-ASSY

15001-1393

$1,139.59

15002

CARBURETOR,LH

15002-1584

$598.56

15002A

CARBURETOR,RH

15002-1585

Unavailable

16131

BODY-VALVE,DIAPHRAGM

16131-1062

$73.54

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

Unavailable

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92002

BOLT,THROTTLE STOP SCREW

92002-1552

$15.76

92005

FITTING,FUEL,I-TYPE

92005-1109

$30.97

92005A

FITTING,T-TYPE

92005-1125

$24.85

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$5.25

92009B

SCREW,4X18

92009-1446

$5.37

92009C

SCREW

92009-1510

$3.90

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037

CLAMP,TUBE

92037-1142

$3.29

92037A

CLAMP,TUBE

92037-1477

$3.29

92037B

CLAMP,TUBE

92037-1531

$4.18

92055

RING-O

92055-1004

$3.29

92055A

RING-O

92055-1223

$3.79

92055B

RING-O

92055-1245

$4.23

92059

TUBE,3.5X6.5X180

92059-1140

$21.76

92059A

TUBE,5X9X160

92059-1201

$20.15

92059B

TUBE,5X9X180

92059-1377

$24.51

92059C

TUBE,6.5X9.5X500

92059-1465

$34.01

92059D

TUBE,3.5X6.5X26

92059-1722

$21.76

92059E

TUBE,6.5X11.5X320

92059-1892

Unavailable

92059F

TUBE,3.5X6.5X390

92059-1893

$15.53

92068

PLUG,12X25

92068-006

$3.25

92081

SPRING

92081-1620

$3.78

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081B

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.27

92081C

SPRING,THROTTLE STOP SCREW

92081-1875

$8.73

92081D

SPRING,AIR CUT VALVE

92081-1891

$12.36

92144

SPRING,THROTTLE ADJUST UPP

92144-1048

$10.32

223

SCREW-PAN-WS-CROS,5X10

223C0510

$3.14

223A

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00

223B

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable
