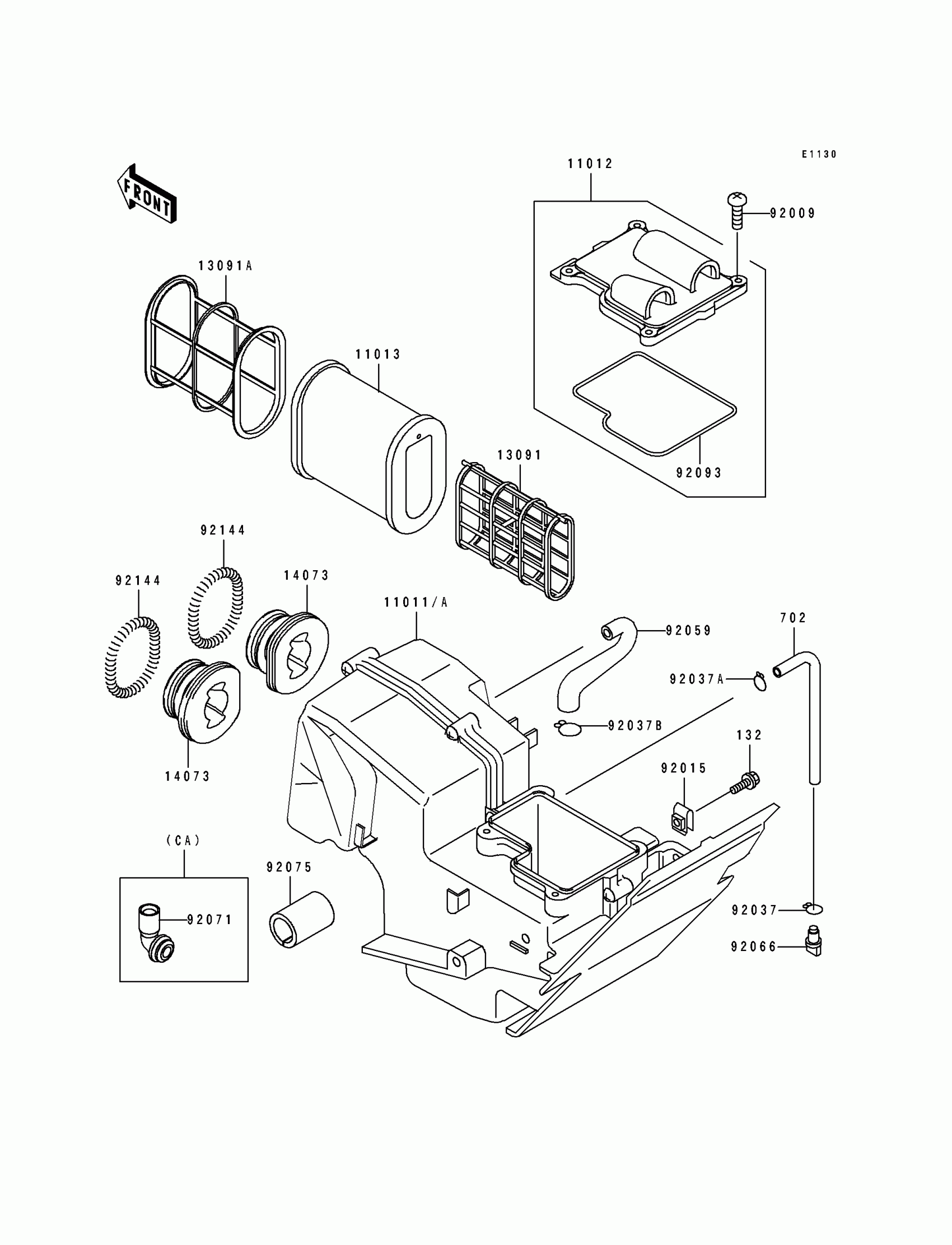

Kawasaki Eliminator 250 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1263

Unavailable

11012

CAP

11012-1597

Unavailable

11013

ELEMENT-AIR FILTER

11013-1154

$31.07

13091

HOLDER,ELEMENT

13091-1467

$16.54

13091A

HOLDER,ELEMENT

13091-1468

$15.51

14073

DUCT,AIR FILTER

14073-1307

$27.12

92009

SCREW,TAPPING,5X25

92009-1339

$4.25

92015

NUT,CLAMP,6MM

92015-1678

$4.18

92037

CLAMP

92037-1712

$3.81

92037A

CLAMP,TUBE

92037-1972

$3.29

92037B

CLAMP,TUBE

92037-213

$3.29

92059

TUBE,BREAHER

92059-1676

$17.36

92066

PLUG,DRAIN

92066-1211

$6.48

92075

DAMPER,SEAT

92075-1652

$12.47

92093

SEAL

92093-1249

Unavailable

92144

SPRING,AIR FILTER DUCT

92144-1771

$9.84

132

BOLT-FLANGED-SMALL

132J0614

Unavailable

702

TUBE-RUBBER,7X10X200

702A07200

$10.11
