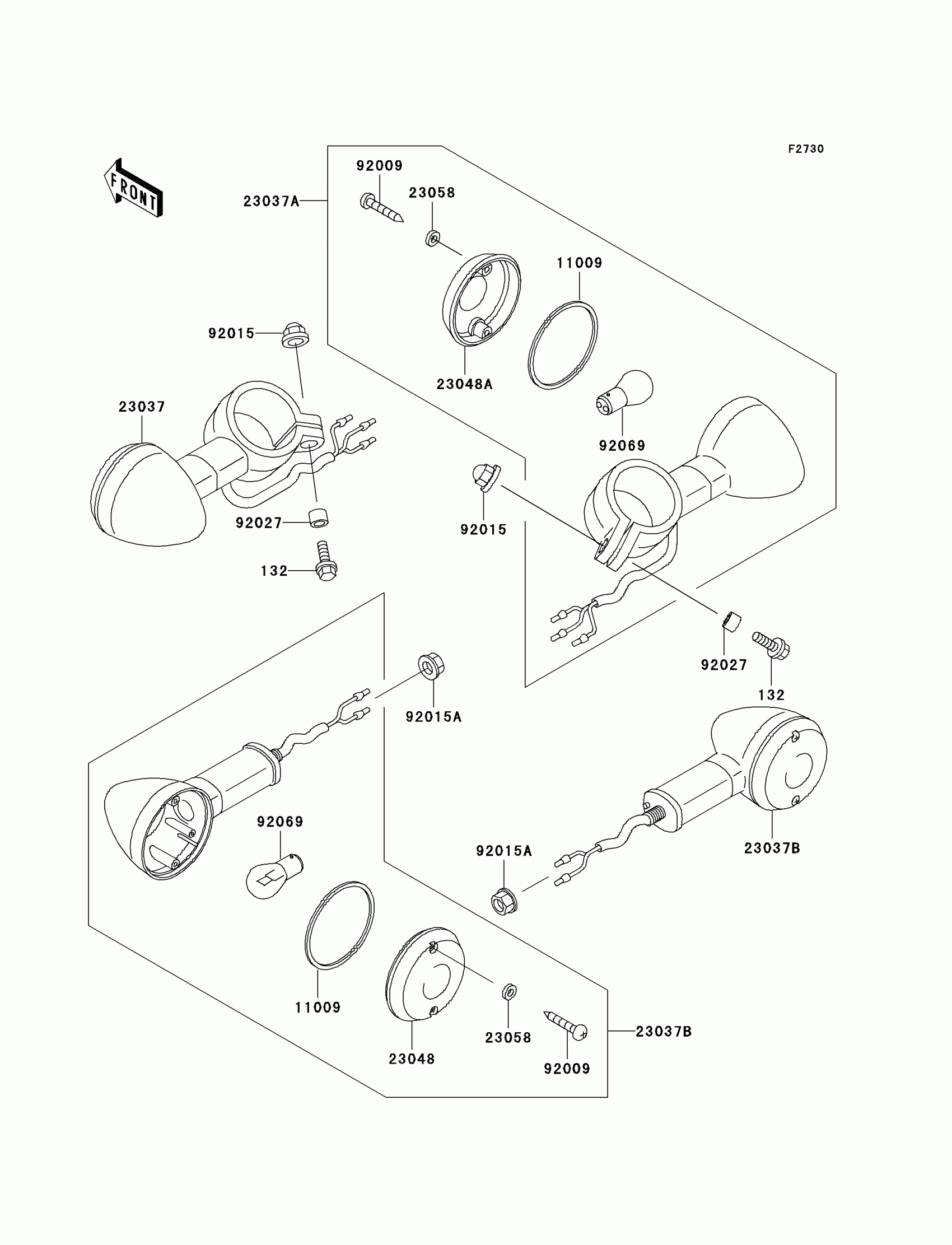

Kawasaki Eliminator 125 Turn Signals Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

11009

GASKET,SIGNAL LAMP

11009-1413

$3.78

23037F

LAMP-ASSY-SIGNAL,FR,LH

23037-1436

$67.60

23037G

LAMP-ASSY-SIGNAL,FR,RH

23037-1437

$67.60

23037H

LAMP-ASSY-SIGNAL,RR

23037-1438

$67.60

23048

LENS-SIGNAL LAMP,RR

23048-1065

$7.26

23048A

LENS-SIGNAL LAMP,FR

23048-1066

$7.26

23058

WASHER,PLAIN,4MM

23058-002

$1.77

92009

SCREW,TAPPING,4X25

92009-1637

$3.53

92015

NUT,CAP,6MM

92015-1385

$3.29

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069A

Not Available As Spare Part - Friction Washer

Unavailable
