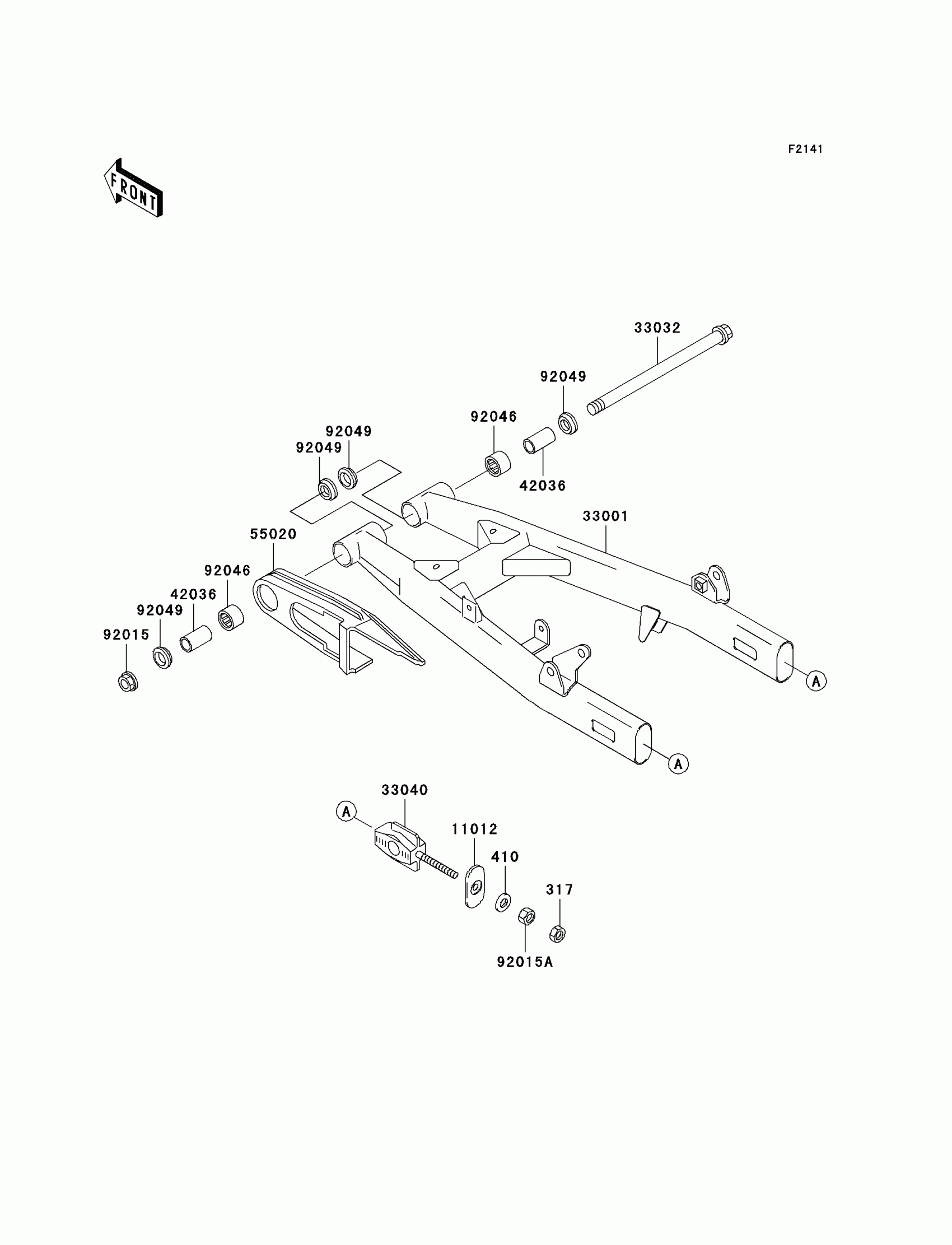

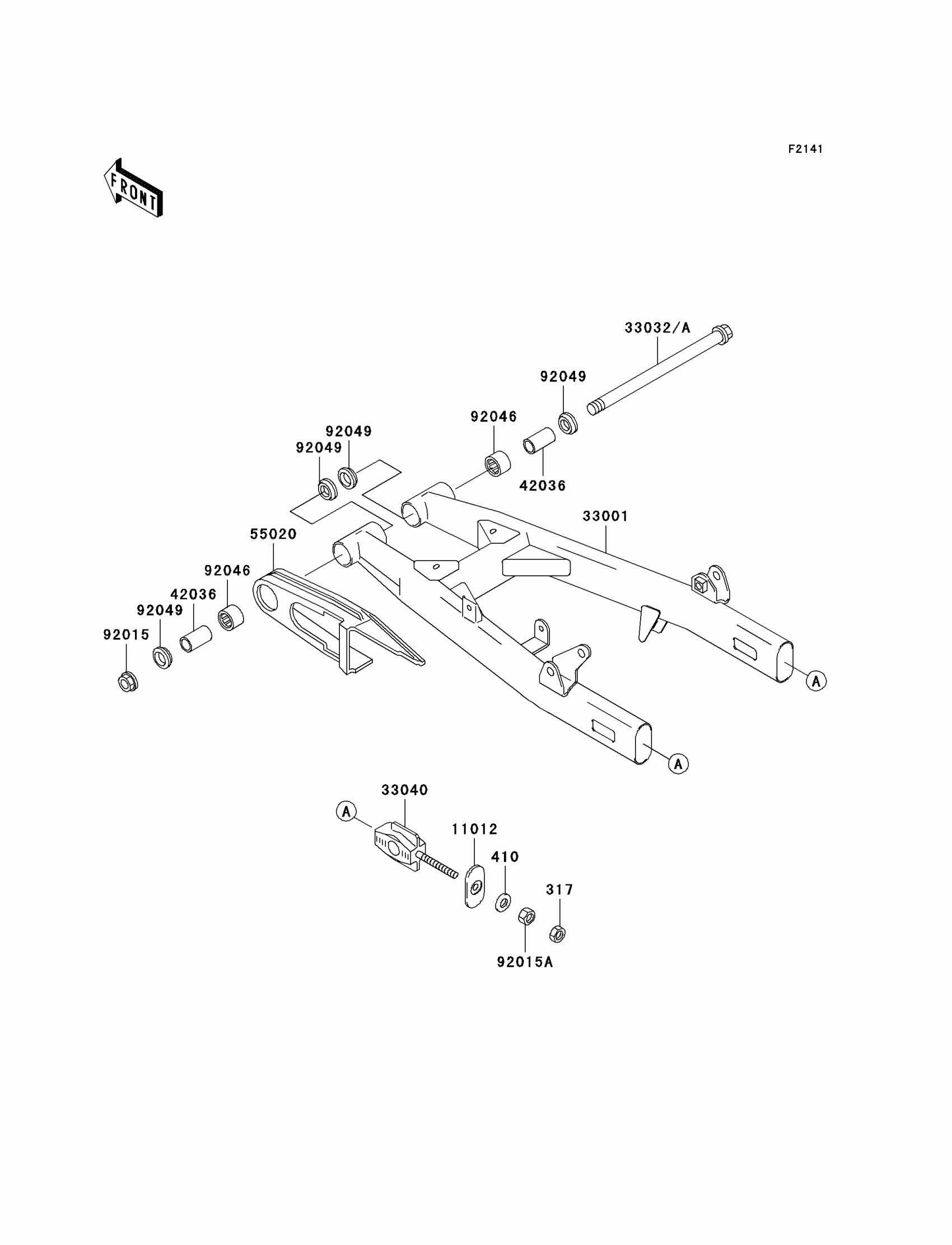

Kawasaki Eliminator 125 Swingarm Diagram

Description

Price

317

NUT-HEX-SMALL,8MM,BLACK

317C0800

$0.73

410

WASHER-PLAIN-SMALL,8MM,BLACK

410F0800

Unavailable

11012

CAP,CHAIN ADJUSTER

11012-1819

$21.17

33001

ARM-COMP-SWING

33001-1599

$134.14

33032

SHAFT-SWING ARM

33032-0001

$9.69

33040

ADJUSTER-CHAIN,INNER

33040-1178

$7.87

42036

SLEEVE,14.1X22X57

42036-1371

$14.54

55020

GUARD,CHAIN

55020-1689

$8.51

92015

NUT,14MM

92015-1407

$7.54

92015A

NUT,8MM

92015-1959

$4.97

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$32.96

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

$8.63
