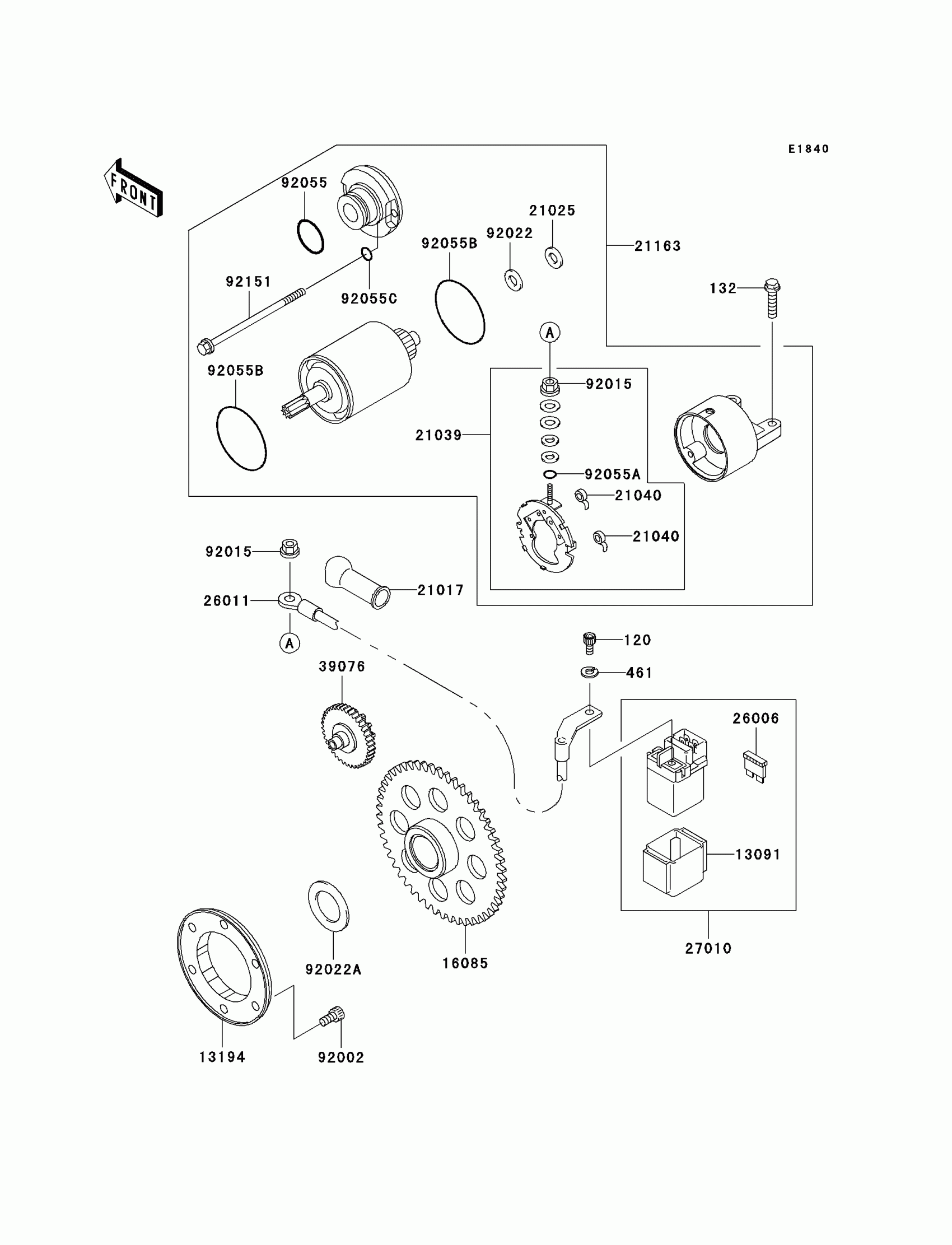

Kawasaki Eliminator 125 Starter Motor Diagram

#

Description
Price

120

BOLT-SOCKET,5X10

120S0510

Unavailable

132

BOLT-FLANGED-SMALL

132V0625

Unavailable

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

13091

HOLDER,MAGNETIC SWITCH

13091-1884

$11.90

13194

CLUTCH-ONEWAY

13194-1107

$110.53

16085

GEAR,60T

16085-0020

$131.38

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$28.79

21040

SPRING-BRUSH

21040-1057

$8.24

21163

STARTER-ELECTRIC

21163-1278

$483.27

26011

WIRE-LEAD,STARTER

26011-1682

$73.71

27010

SWITCH,MAGNETIC

27010-1327

Unavailable

39076

LIMITER,STARTER IDLE

39076-1060

$191.59

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92022A

WASHER,22.3X35X1.6

92022-212

$9.58

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O

92055-1550

$9.58

92055C

RING-O

92055-1551

$4.17

92151

BOLT

92151-1158

$7.46
