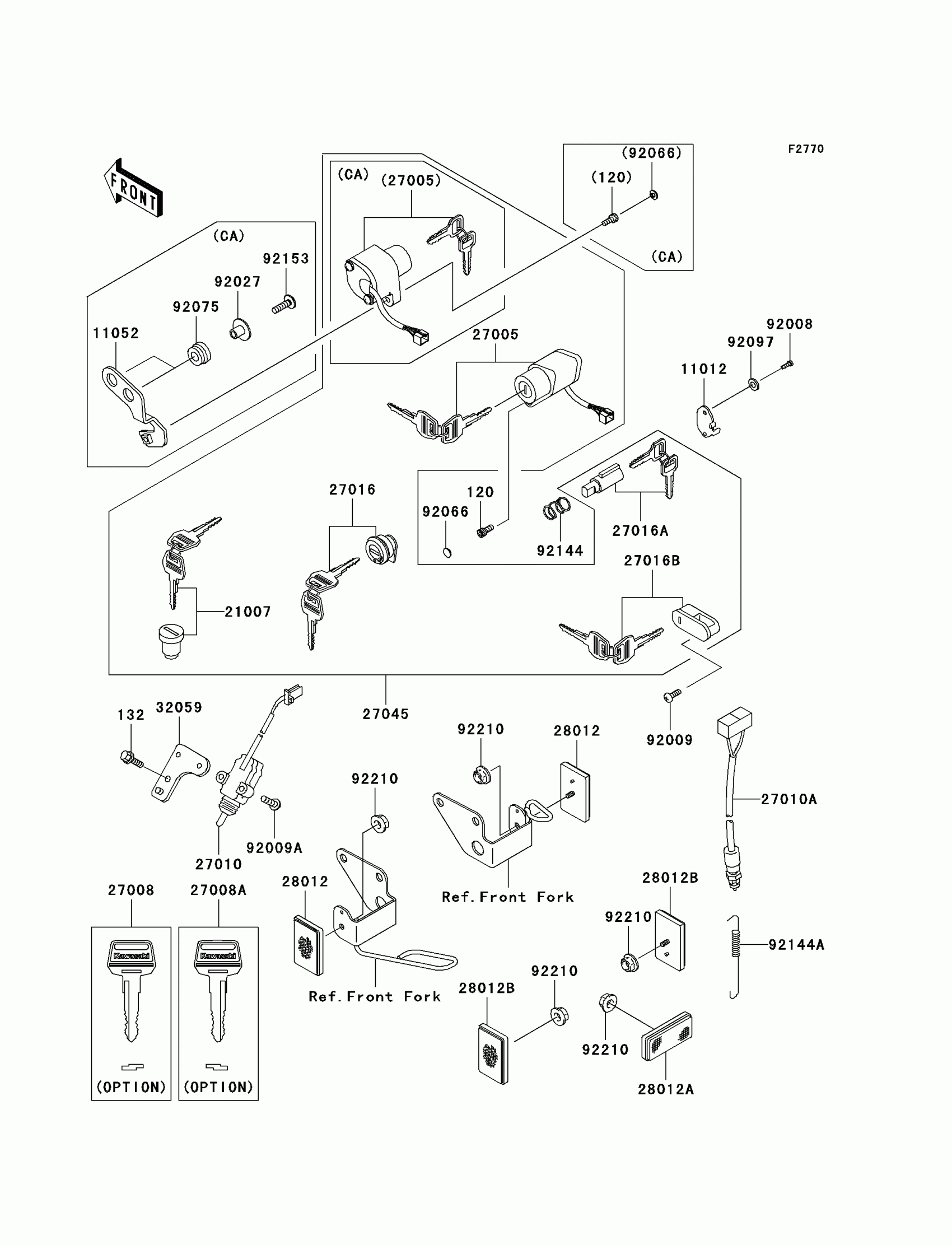

Kawasaki Eliminator 125 Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET

120P0512

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132J0616

Unavailable

11012

CAP,STEERING LOCK

11012-1586

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5022

$74.13

27005

SWITCH-ASSY-IGNITION

27005-1246

$135.13

27008

KEY-LOCK,BLANK,#A

27008-1034

$17.63

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010A

SWITCH,SIDE STAND

27010-1384

$81.16

27010B

SWITCH,BRAKE LAMP

27010-1462

$53.80

27016B

LOCK-ASSY,SIDE COVER

27016-5240

$74.62

27016C

LOCK-ASSY,STEERING

27016-5293

$87.55

27016D

LOCK-ASSY,HELMET

27016-5319

$69.10

27045B

SWITCH-ASSY

27045-5241

$215.57

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

32059

BRACKET-SWITCH,SIDE STAND

32059-1115

$32.46

92008

SCREW,3.51MM

92008-007

$3.14

92009

SCREW,5X14

92009-1341

$3.75

92009A

SCREW,5X20

92009-1459

$3.92

92066

PLUG

92066-1435

$2.25

92097

WASHER,WAVE

92097-003

$3.43

92144

SPRING,STEERING LOCK

92144-1222

$3.98

92144A

SPRING,REAR BRAKE SWITCH

92144-1753

$5.58

92210

NUT,FLANGED,5MM

92210-0007

$1.90

130

BOLT-FLANGED

130J0620

Unavailable

11052

BRACKET,IGNITION SWITCH

11052-1296

$5.78

92027

COLLAR,L=13.1

92027-251

Unavailable

92075

DAMPER,RUBBER

92075-1123

$3.81
