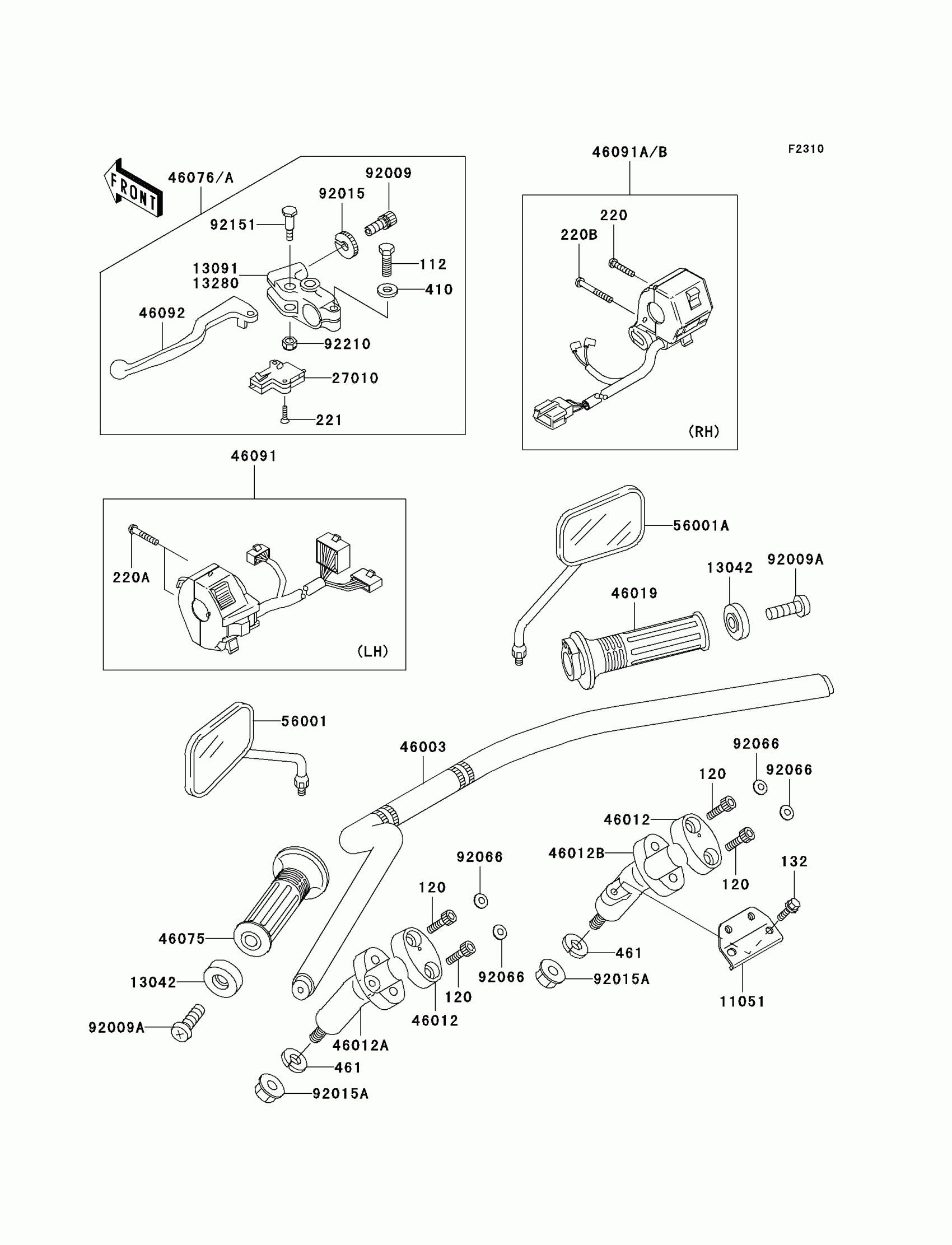

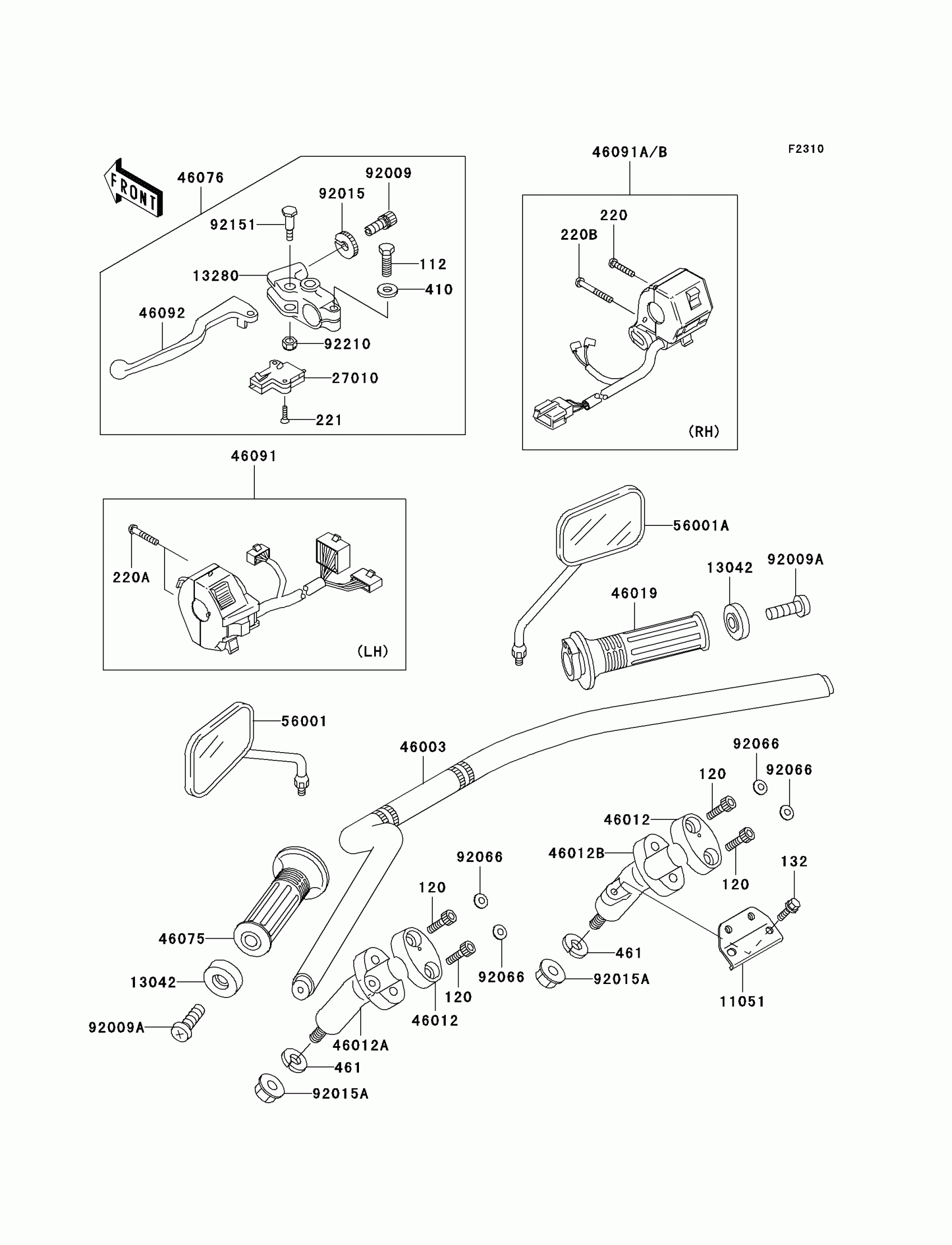

Kawasaki Eliminator 125 Handlebar Diagram

#

Description
Price

112

BOLT-UPSET

112J0622

Unavailable

120

BOLT-SOCKET,8X30

120S0830

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132E0616

$4.17

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X40

220C0540

Unavailable

221

SCREW-CSK-CROS

221C0316

$3.24

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable

11051

BRACKET

11051-1679

$8.05

13042

WEIGHT,HANDLE

13042-1126

$36.34

13280

HOLDER,CLUTCH LEVER

13280-0105

$33.17

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003

HANDLE

46003-1555

$68.60

46012

HOLDER-HANDLE,UPP

46012-1316

$7.81

46012A

HOLDER-HANDLE,LWR,LH

46012-1324

$51.37

46012B

HOLDER-HANDLE,LWR,RH

46012-1325

$51.37

46019

GRIP-ASSY,THROTTLE

46019-1107

$7.22

46075

GRIP,LH

46075-1080

$20.71

46076A

LEVER-ASSY-GRIP,CLUTCH

46076-1244

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-1768

$104.67

46092

LEVER-GRIP,CLUTCH

46092-1206

Unavailable

56001

MIRROR-ASSY,LH

56001-1327

$87.99

56001A

MIRROR-ASSY,RH

56001-1328

$77.11

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92009A

SCREW,8X20

92009-1484

$4.92

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92015A

NUT,CAP,10MM

92015-1961

$9.49

92066

PLUG

92066-1277

$5.09

92151

BOLT,LEVER SET

92151-1986

$4.67

92210

NUT,LOCK,6MM

92210-0006

$1.76

46091A

HOUSING-ASSY-CONTROL,RH

46091-1769

$106.57

46091B

HOUSING-ASSY-CONTROL,RH

46091-1854

$123.23
