Partiron

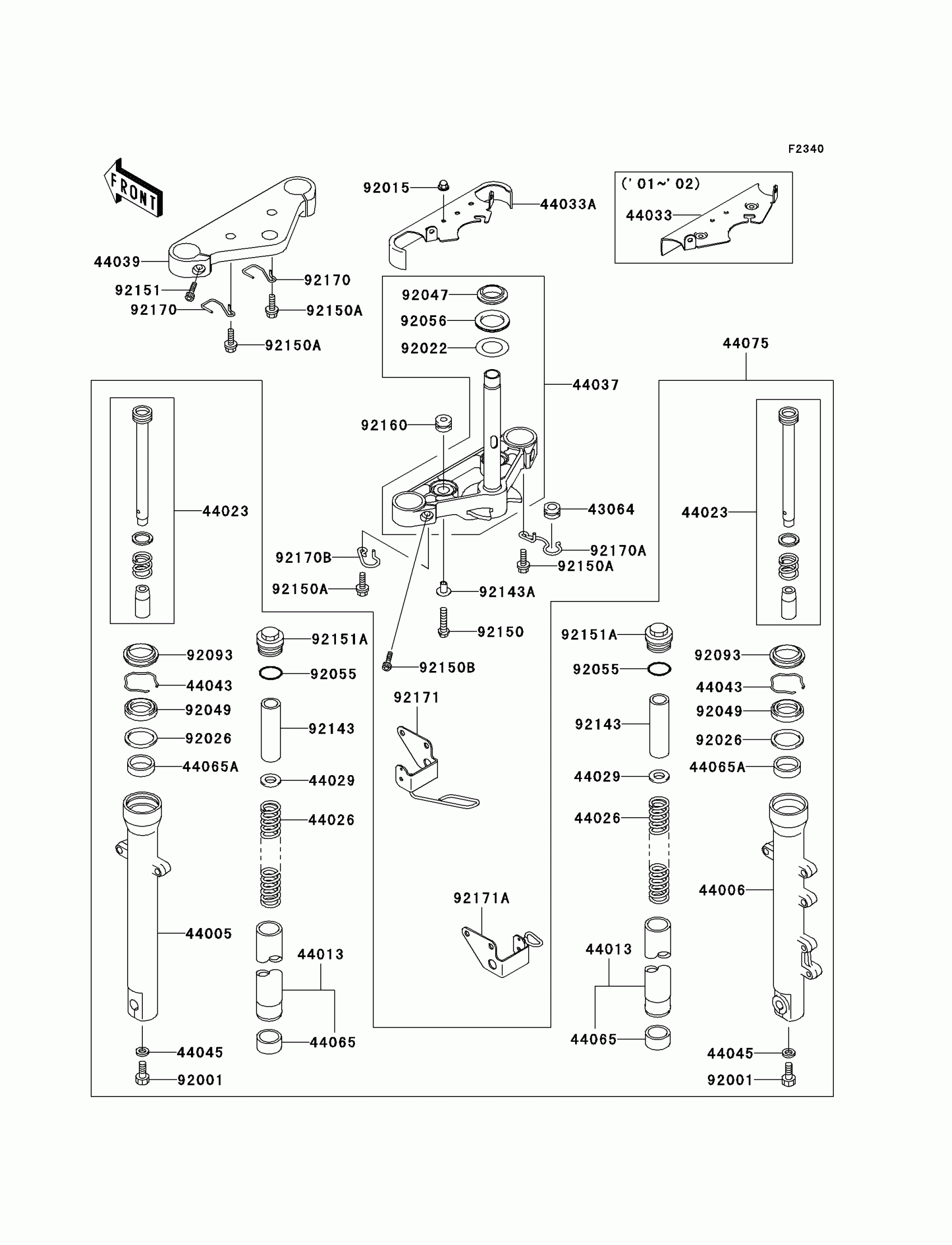

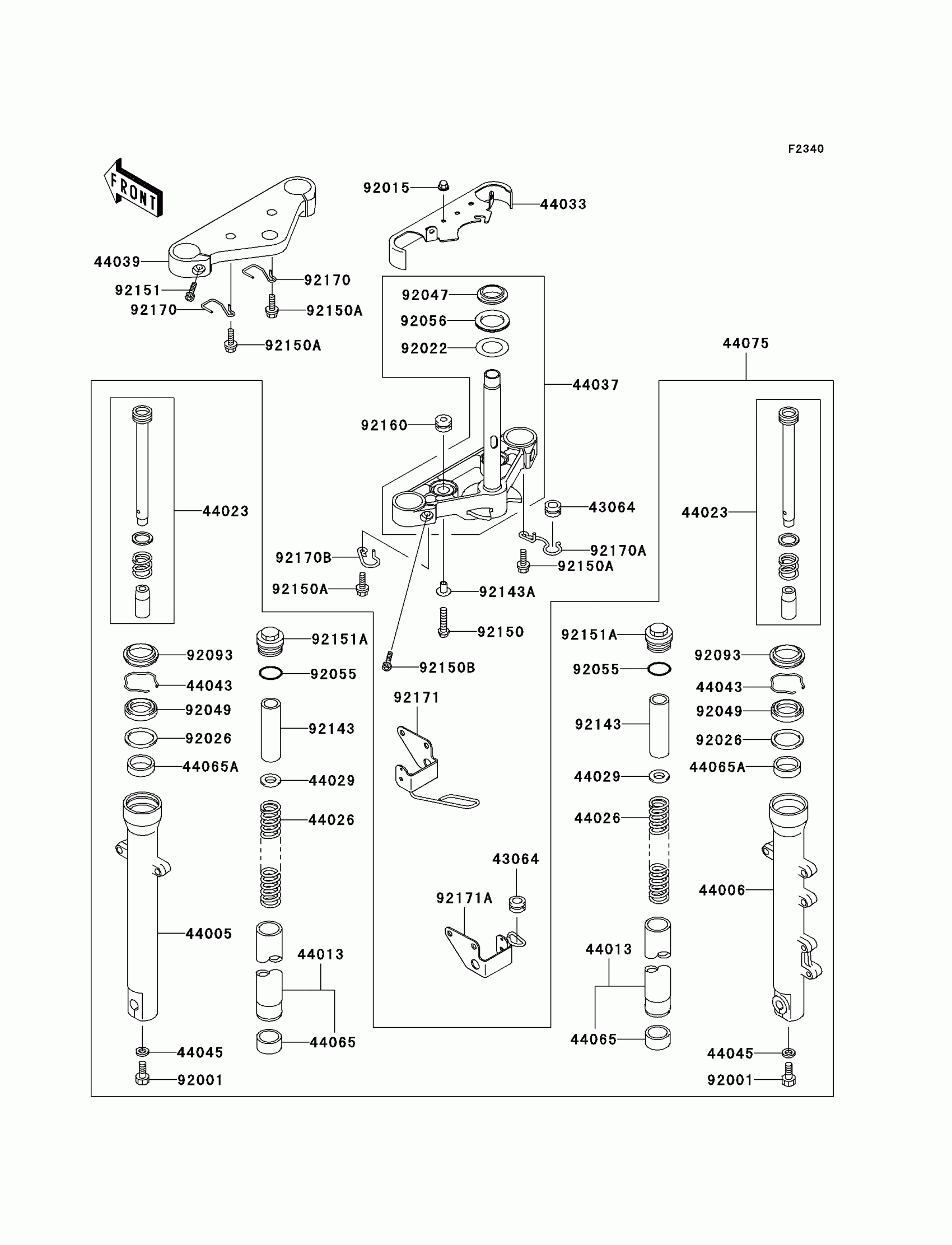

Kawasaki Eliminator 125 Front Fork Diagram

#

Description
Price

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

44005

PIPE-LEFT FORK OUTER

44005-1391

$287.90

44006

PIPE-RIGHT FORK OUTER

44006-1390

$287.90

44013

PIPE-FORK INNER

44013-1444

$188.03

44023

CYLINDER-SET-FORK

44023-1128

$45.58

44026

SPRING-FRONT FORK

44026-1680

$36.97

44029

SEAT-FORK SPRING

44029-1136

$17.92

44033A

COVER-FORK

44033-1270

$18.17

44037

HOLDER-FORK UNDER

44037-1361

$402.34

44039

HOLDER-FORK UPPER

44039-1275

$341.09

44043

RING,OIL SEAL STOPPER

44043-057

$4.88

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK,INNER PIPE

44065-1123

$13.06

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1124

$11.07

44075

DAMPER-SET-FORK

44075-1076

$1,164.32

92001

BOLT,FORK CYLINDER

92001-1464

$4.67

92015

NUT,CAP,6MM

92015-1385

$3.29

92022

WASHER,30.5X50X0.6

92022-231

$4.17

92026

SPACER

92026-1365

$9.42

92047

RACE,STEERING STEM BEARING

92047-012

$14.20

92049

SEAL-OIL,FORK OUTER TUBE

92049-1340

$16.80

92055

RING-O,FORK TOP

92055-1367

$4.33

92056

SEAL-OIL,STEERING STEM

92056-003

$6.75

92093

SEAL,FORK OUTER TUBE

92093-1280

$14.04

92143

COLLAR,FORK

92143-1311

$10.19

92143A

COLLAR,L=12

92143-1683

$7.47

92150

BOLT,FLANGED,6X27

92150-1124

$4.32

92150A

BOLT,6X14

92150-1340

$3.86

92150B

BOLT,SOCKET,10X25

92150-1387

$4.85

92151

BOLT

92151-1261

$4.68

92151A

BOLT,FORK TOP

92151-1262

$41.61

92160

DAMPER,10X20X12

92160-1167

$3.57

92170

CLAMP,CABLE

92170-1769

$8.31

92170A

CLAMP,HOSE

92170-1840

$13.63

92170B

CLAMP,CABLE

92170-1841

$8.69

92171

CLAMP,CABLE

92171-1294

$8.44

92171A

CLAMP,BRAKE HOSE

92171-1295

$8.44
