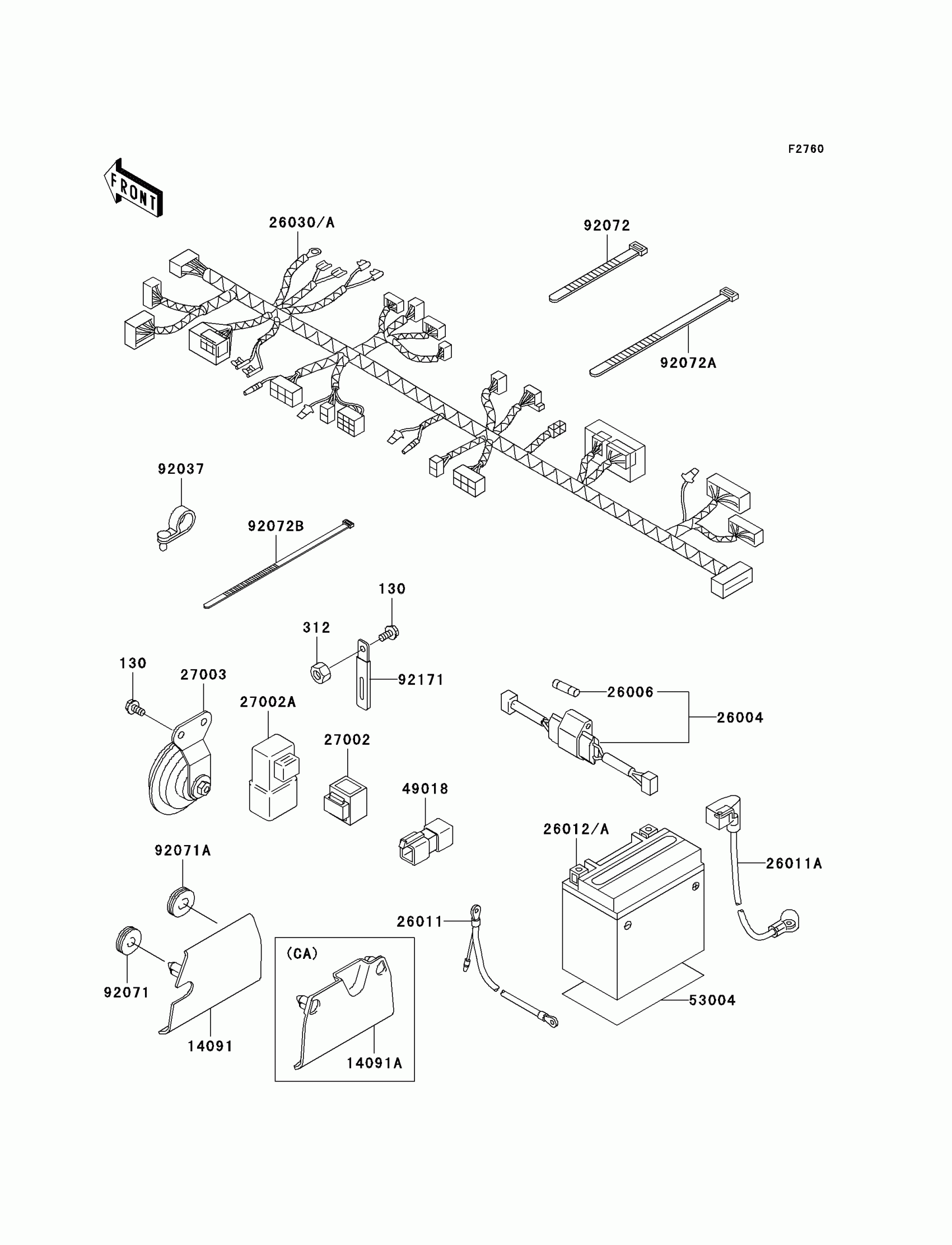

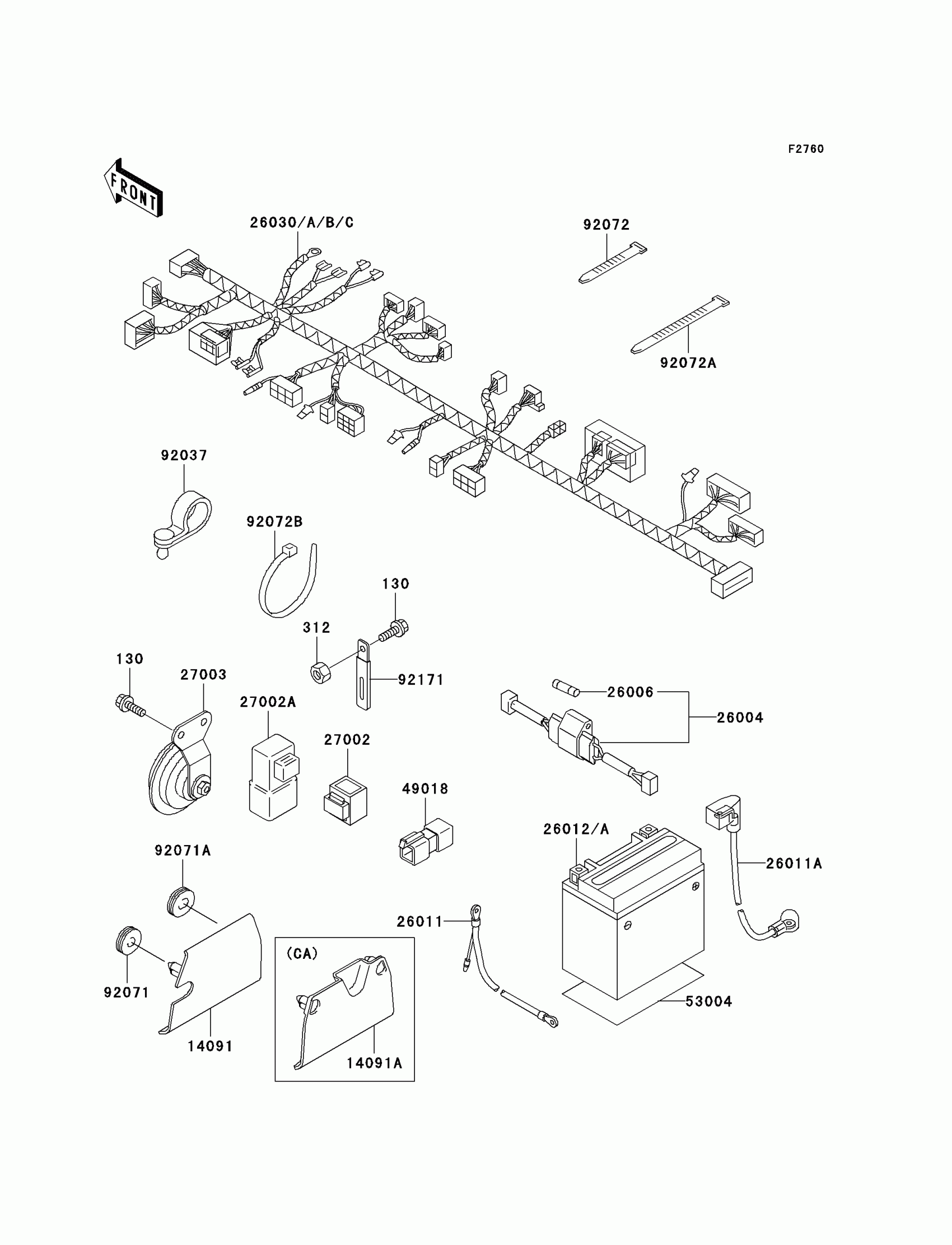

Kawasaki Eliminator 125 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

26004

FUSE-ASSY

26004-1113

$42.85

26006

FUSE,15A,L=30

26006-1003

$4.47

26011

WIRE-LEAD,BATTERY(-)

26011-1670

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1674

$41.72

26012

BATTERY,FB9-B,12V 9AH

26012-0051

$68.45

26012A

BATTERY,YB9-B,12V 9AH

26012-1361

$86.46

27002

RELAY-ASSY,TURN SIGNAL

27002-1053

$51.80

27002A

RELAY-ASSY

27002-1086

$32.97

27003

HORN

27003-1423

$77.75

49018

DIODE

49018-1052

Unavailable

53004

MAT,BATTERY

53004-1123

$4.41

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92071

GROMMET

92071-056

$3.25

92071A

GROMMET

92071-1043

$3.91

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=202

92072-1195

$1.16

92072B

BAND,L=365

92072-1197

$7.71

92171

CLAMP,WIRING HARNESS,L=60

92171-1425

$1.36

14091

COVER,HEAD GUSSET

14091-1123

$5.54

14091A

COVER,HEAD GUSSET

14091-1405

$2.44

26030B

HARNESS,MAIN

26030-1992

$127.02

26030C

HARNESS,MAIN

26030-1993

$104.30
