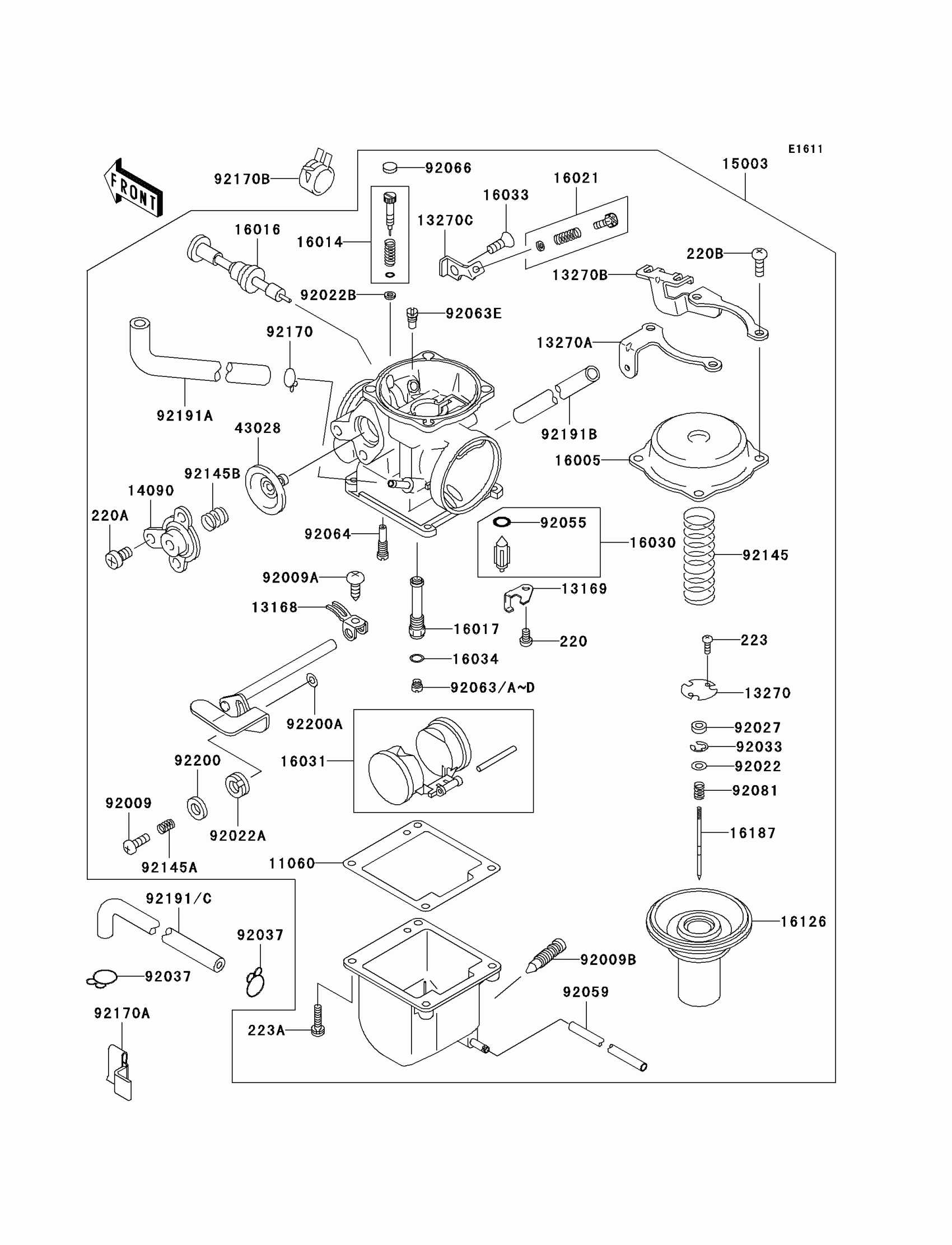

Kawasaki Eliminator 125 Carburetor(A6F/A7F) Diagram

#

Description
Price

11060

GASKET,FLOAT CHAMBER

11060-1849

$7.02

13168

LEVER,STARTER

13168-1642

Unavailable

13169

PLATE,FLOAT VALVE

13169-1482

$7.14

13270

PLATE,VACUUM VALVE

13270-1981

$7.14

13270A

PLATE,LH

13270-1982

$14.47

13270B

PLATE,RH

13270-1983

$14.47

13270C

PLATE,THROTTLE STOP SCREW

13270-1984

$12.37

14090

COVER,AIR CUT VALVE

14090-1931

$9.97

15003

CARBURETOR-ASSY,BS28

15003-0106

$433.10

16005

TOP-CHAMBER

16005-0004

$52.14

16014

SCREW-PILOT AIR

16014-1117

$24.95

16016

PLUNGER

16016-1106

$47.13

16017

JET-NEEDLE,O-8M

16017-1432

$51.53

16021

SCREW-THROTTLE STOP

16021-1217

$17.08

16030

VALVE-FLOAT

16030-1086

$59.26

16031

FLOAT

16031-1094

$59.26

16033

SCREW,5X8

16033-024

$7.37

16034

WASHER,MAIN JET

16034-001

$3.57

16126

VALVE,VACUUM

16126-1352

$146.09

16187

NEEDLE-JET,4C17

16187-1188

$39.06

43028

DIAPHRAGM,COASTING RICHER

43028-1026

$147.92

92009

SCREW,STARTER LEVER

92009-1823

$3.59

92009A

SCREW,STARTER

92009-1824

$2.76

92009B

SCREW,DRAIN

92009-1826

$8.07

92022

WASHER,JET NEEDLE

92022-1123

Unavailable

92022A

WASHER,PLAIN,DURACON

92022-1147

Unavailable

92022B

WASHER,ADJUST SCREW

92022-1187

$5.42

92027

COLLAR,THROTTLE VALVE

92027-1103

$7.53

92033

RING-SNAP

92033-1290

$4.24

92037

CLAMP

92037-1610

$1.64

92055

RING-O

92055-1105

$4.15

92059

TUBE,3X5X220,OVERFLOW

92059-1243

$7.94

92063

JET-MAIN,#A127.5

92063-1100

$13.73

92063A

JET-MAIN,#A122.5

92063-1101

$13.73

92063B

JET-MAIN,#A125

92063-1102

$13.73

92063C

JET-MAIN,#A130

92063-1103

$13.73

92063D

JET-MAIN,#A120

92063-1106

$17.31

220

SCREW-PAN-CROS,4X6

220AA0406

$1.46

220A

SCREW-PAN-CROS,4X10

220AA0410

$1.75

220B

SCREW-PAN-CROS,5X10

220AA0510

$0.75

223

SCREW-PAN-WS-CROS,3X7

223AA0307

$3.98

223A

SCREW-PAN-WS-CROS,4X14

223AA0414

$1.34

92063E

JET,#70

92063-2059

$11.63

92064

JET-PILOT,#32.5

92064-1230

$18.32

92066

PLUG,PILOT AIR SCREW

92066-1501

$3.24

92081

SPRING,JET NEEDLE

92081-1126

$8.19

92145

SPRING,VACUUM VALVE

92145-1124

$8.95

92145A

SPRING,STARTER LEVER

92145-1125

$4.08

92145B

SPRING,AIR CUT VALVE

92145-1127

$11.36

92170

CLAMP

92170-1818

$5.20

92170A

CLAMP

92170-1936

$4.42

92170B

CLAMP

92170-2043

$1.08

92191A

TUBE

92191-1244

$8.88

92191B

TUBE,5X8X300

92191-1245

$15.26

92200

WASHER,STARTER LEVER

92200-1397

$2.44

92200A

WASHER,STARTER LEVER

92200-1398

$2.44

92191

TUBE,L=115

92191-1210

$4.56

92191C

TUBE,L=66.8

92191-1623

Unavailable
