2005 Kawasaki Eliminator 125 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2005 Kawasaki Eliminator 125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

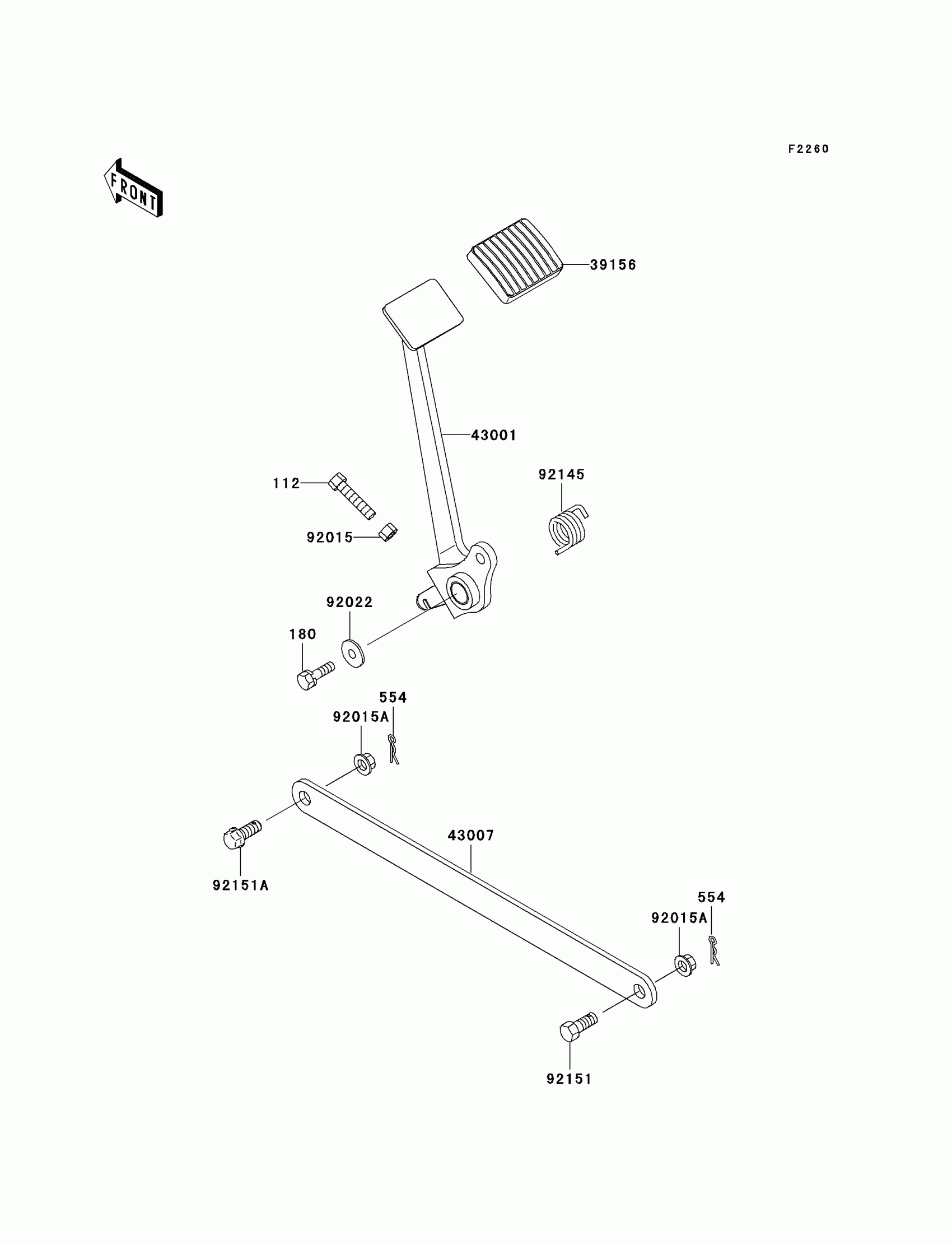

2005 Kawasaki Eliminator 125 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,6X30

112V0630

1
Out of stock

180

BOLT-UPSET-WS,6X16

180J0616

1
Out of stock

554

PIN-SNAP,8MM

554A0800

1
Out of stock

39156

PAD,BRAKE PEDAL

39156-1071

1

$9.35

In stock

43001

LEVER-BRAKE,PEDAL

43001-1390

1

$113.02

In stock

43007

ROD-TORQUE

43007-1037

1
Out of stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92015A

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

1

$0.53

In stock

92145

1

$7.15

In stock

92151

BOLT,10X27

92151-1203

1

$3.78

In stock

92151A

BOLT,FLANGED,10X25

92151-1337

1

$5.59

In stock
