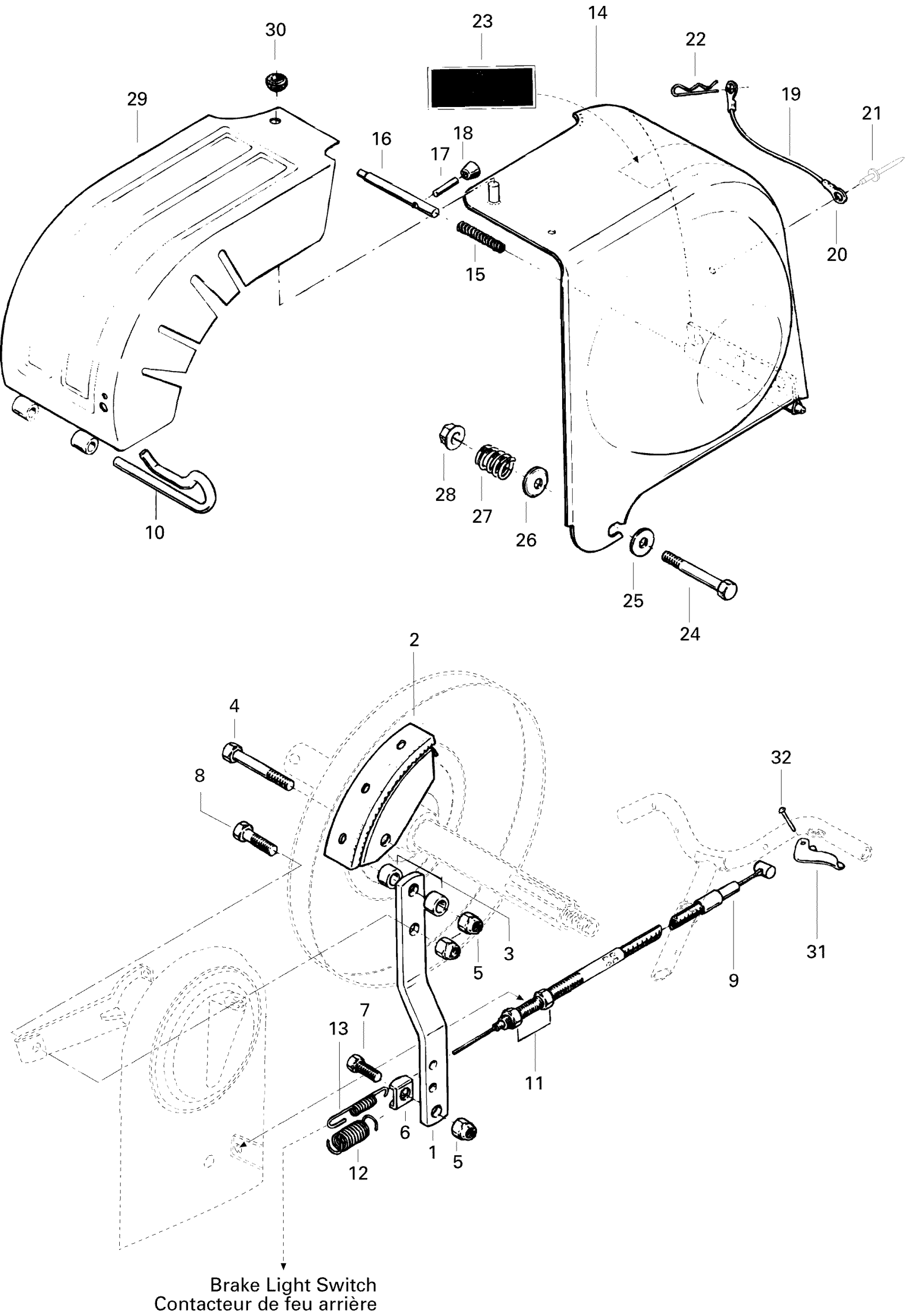

Ski-Doo Elan 247, 1996 Brake And Belt Guard Diagram
#
Description
Price
1
Brake Lever
507007500
Unavailable
2
Shoe
581046700
Unavailable
3
Spacer
507013100
Unavailable
4
Hex. Screw 1/4-20 x 1 1/4
305100400
Unavailable
5
Elastic Nut 1/4-20
398301900
Unavailable
6
Cable Bracket
507004700
Unavailable
7
Hex. Screw 1/4-20 x 3/4
305100100
Unavailable
8
Screw 1/4-20 x 7/8
309901000
Unavailable
9
Brake Cable
414921700
Unavailable
10
Hair Pin
414217600
Unavailable
11
Hex. Nut 5/16-24
396202200
Unavailable
12
Spring (Brake Lever)
414350600
Unavailable
13
Spring (Brake Light Switch)
414443500
Unavailable
14
Pulley Guard Ass’y | Includes 14 to 23
580598300
Unavailable
15
Spring
414098300
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Spirol Pin
372004100
Unavailable
18
Cap
572178300
Unavailable
19
Wire
414407400
Unavailable
20
Terminal Ring
561502800
Unavailable
21
Pop Rivet 3/16"
390402400
Unavailable
22
Hair Pin
414108300
Unavailable
23
Warning Decal
414108700
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
26
Retainer Washer | Formula 500. Formula 500 Deluxe.
517041700
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Belt Guard
517267400
Unavailable
31
BRAKE HANDLE - Call your local BRP dealership
506151225
Unavailable
32
Tubular Rivet
390502000
Unavailable
