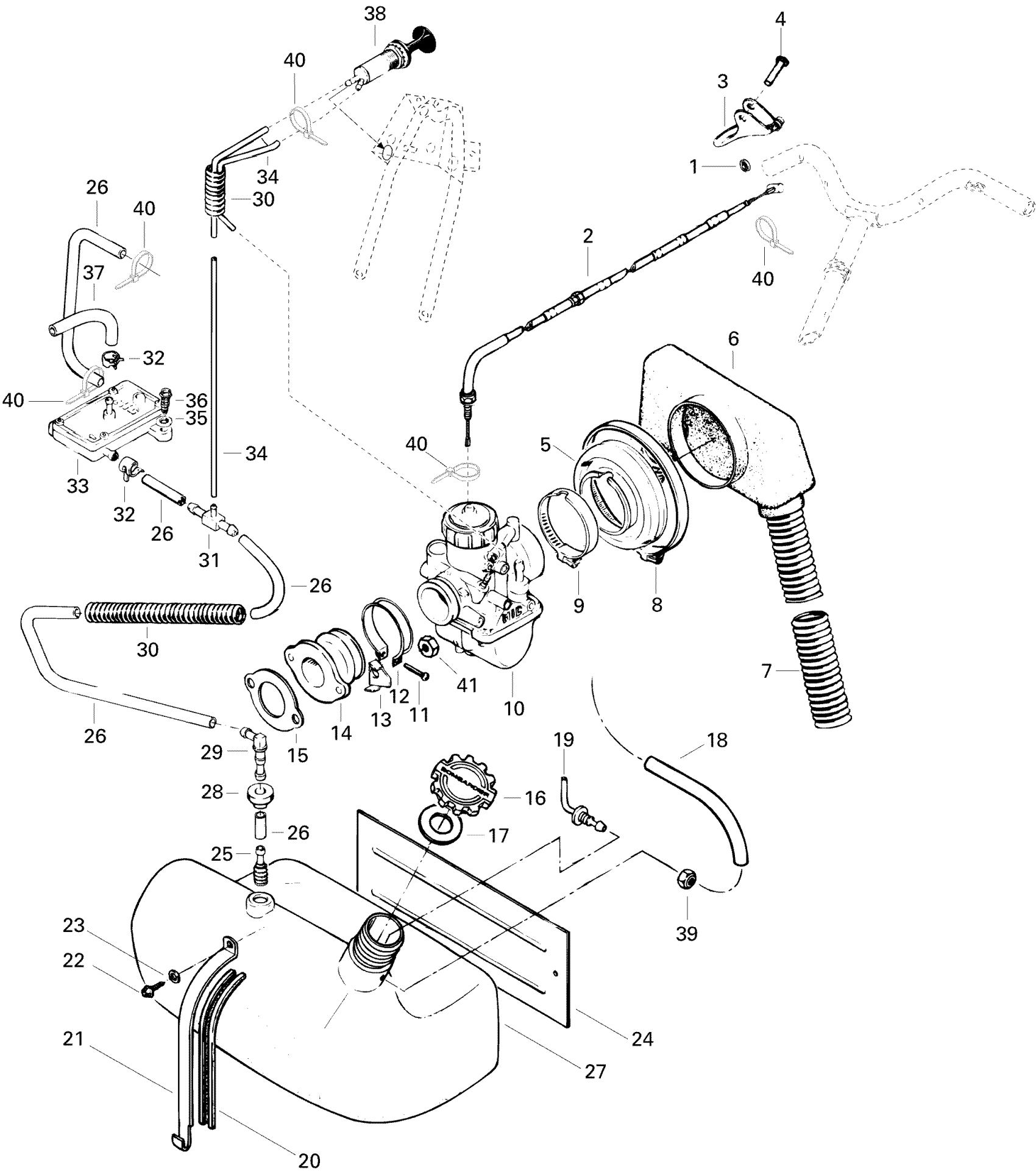

Ski-Doo Elan 247, 1996 Fuel System Diagram

#

Description
Price

1

Circlip

371901300

Unavailable

2

Throttle Cable & Housing

414755700

Unavailable

3

Throttle Handle

581045600

Unavailable

4

Tubular Rivet

390502000

Unavailable

5

Adaptor

570016700

Unavailable

6

Air Intake Box | Includes 6 to 7

580522700

Unavailable

7

Tube

414240500

Unavailable

8

Clamp

414676400

Unavailable

9

Hose Clamp

561203800

Unavailable

10

Carburetor VM 28-470A | Includes 1 to 26

403112500

Unavailable

11

Screw

404125100

Unavailable

12

Clamp

404125000

Unavailable

13

Lock Tab

513025400

Unavailable

14

Carburetor Adaptor

570016800

Unavailable

15

Gasket

414655300

Unavailable

16

Fuel Tank Cap

513033025

$22.36

17

Fuel Tank Cap

513033025

$22.36

18

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

19

Air Vent Fitting

513031700

Unavailable

20

Protector Strip

414106700

Unavailable

21

Retainer Strip

513009400

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Washer | DS 650 X

391301600

$0.46

24

Heat Shield

517082400

Unavailable

25

Fuel Filter

414865700

$9.63

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

27

Fuel Tank

571007500

Unavailable

28

Grommet

709200285

$8.13

29

Elbow Male Connector

414580600

$4.01

30

Was 409901800 Tubing (13 mm)

219704400

$10.79

31

T-fitting

414222500

$1.52

32

Spring Clamp

414554800

$0.81

33

Fuel Pump Ass’y | Includes 27 to 31

403800300

Unavailable

34

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

35

Internal Tooth Lock Washer 1/4

394601900

Unavailable

36

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

37

Polyurethane Hose 10000Mm Long

219704410

$52.96

38

Primer

415060500

$32.06

39

HEX. NUT 5/16-18 YIC - Call your local BRP dealership

396302200

Unavailable

40

Tie-Rap 180 mm

414115200

$0.10

41

Hex. Nut M8

420942674

$4.87
