1973 Yamaha EL433B SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1973 Yamaha EL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

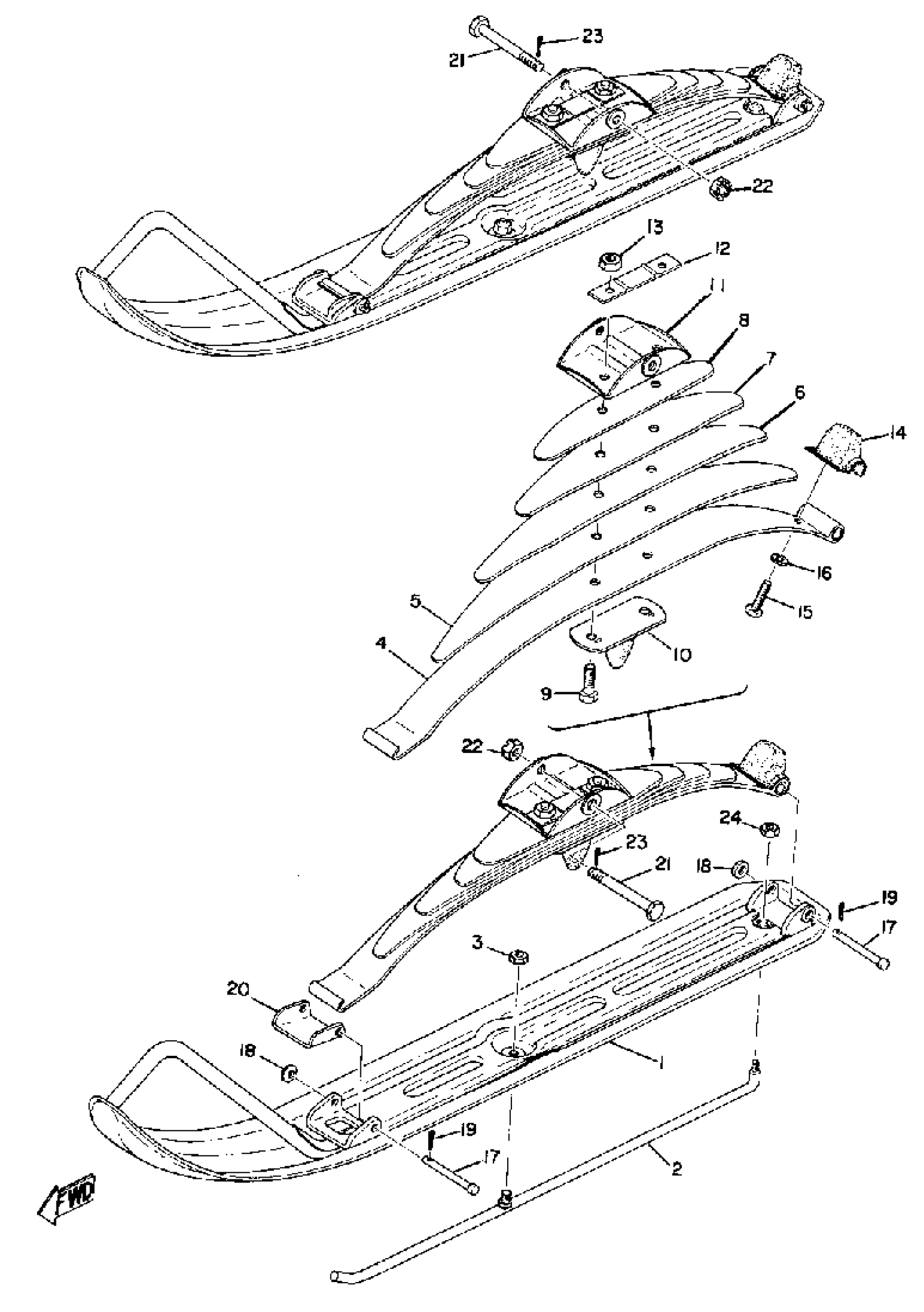

1973 Yamaha EL433B SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(838-23710-01-00)

1
Out of stock

1

SPRING ASSEMBLY 1

(841-23760-03-00)

1
Out of stock

2

RUNNER 1

838-23731-03-00

1
Out of stock

2

RUNNER 1

841-23731-02-00

1
Out of stock

2

SPRING ASSEMBLY 2

841-23770-03-00

1
Out of stock

3

NUT(6TA)

95337-08600-00

1

$6.17

In stock

4

. LEAF 1

841-23761-02-00

1
Out of stock

5

LEAF 2

(841-23762-02-00)

1
Out of stock

6

LEAF 3

(841-23763-01-00)

1
Out of stock

7

. LEAF 4

841-23764-01-00

1
Out of stock

8

. LEAF 5

841-23771-01-00

1
Out of stock

9

. BOLT

90101-10060-00

1
Out of stock

10

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

11

SADDLE 1

(841-23766-00-00)

1
Out of stock

12

. WASHER, SPEC''L SHAP

90209-10069-00

1
Out of stock

13

NUT(6TD)

95337-10600-00

—

$6.98

In stock

14

STOPPER 1

(841-23743-01-00)

1
Out of stock

15

BOLT (11T)

90101-06576-00

—

$6.46

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

PIN, CLEVIS (801-23733-00)

90240-08035-00

1
Out of stock

18

WASHER(6TC)

92907-08200-00

—
Out of stock

19

PIN COTTER

91490-30025-00

—
Out of stock

20

PLATE, WEAR 1

802-23735-00-00

1
Out of stock

21

BOLT, WITH HOLE

90102-10009-00

1
Out of stock

22

NUT, SLOTTED

95306-10900-00

1
Out of stock

23

PIN, COTTER

91490-20025-00

—

$1.31

In stock

24

NUT, HEXAGON SMALL

95317-08700-00

—

$7.05

In stock
