1983 Kawasaki Eddie Lawson Replica Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

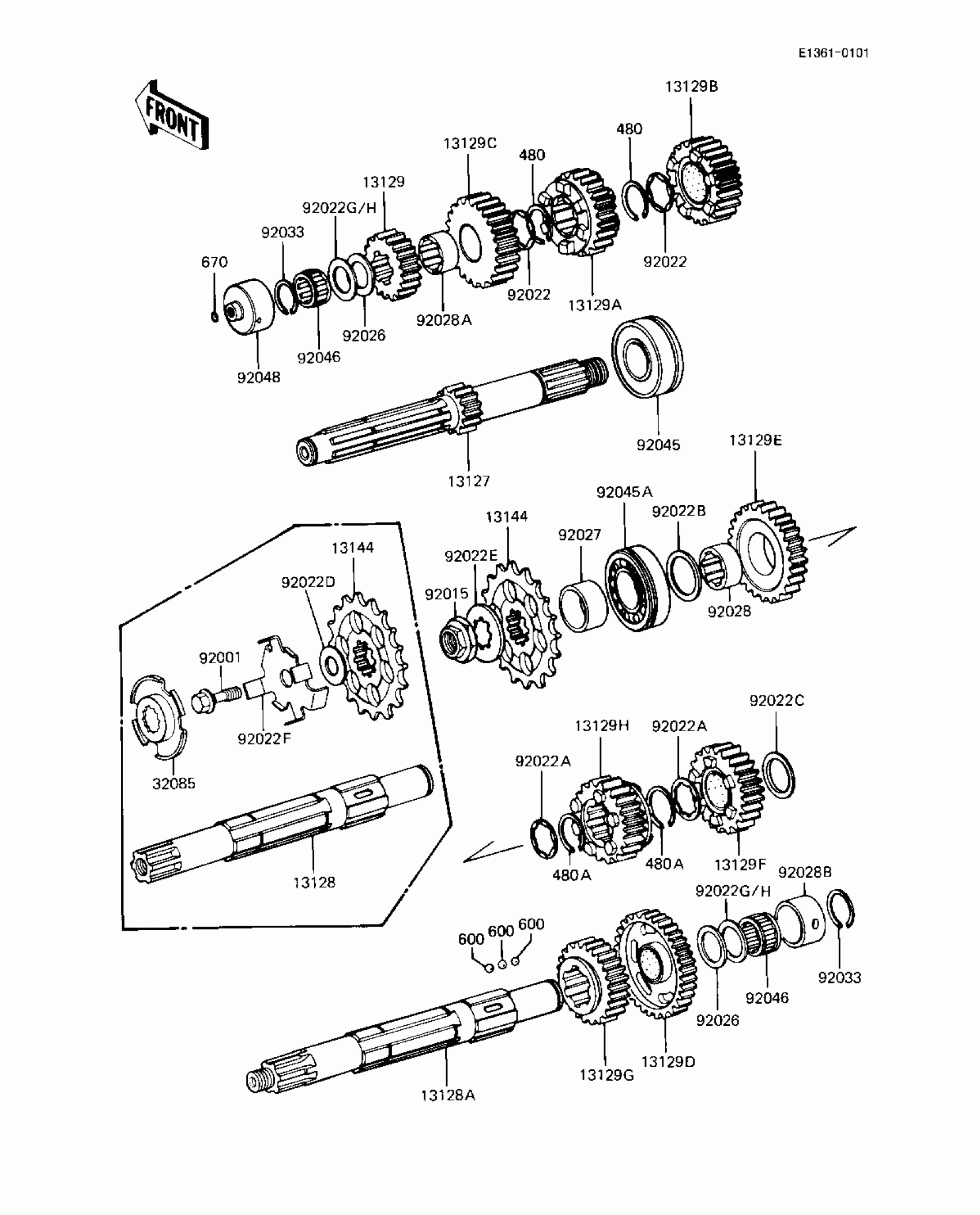

1983 Kawasaki Eddie Lawson Replica Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT,14T

13127-1034

1
Out of stock

13128A

SHAFT-TRANSMISSION OUTPUT

13128-1048

1
Out of stock

13129

UNAVAILABLE IN PRICE BOOK

13129-1035

1
Out of stock

13129A

GEAR,INPUT 3RD,21T

13129-1236

1
Out of stock

13129B

GEAR,INPUT 4TH,23T

13129-1237

1
Out of stock

13129C

GEAR,INPUT TOP,25T

13129-1238

1
Out of stock

13129D

GEAR,OUTPUT LOW,37T

13129-1239

1
Out of stock

13129E

GEAR,OUTPUT 2ND,33T

13129-1240

1
Out of stock

13129F

GEAR,OUTPUT 3RD,30T

13129-1241

1
Out of stock

13129G

GEAR,OUTPUT 4TH,27T

13129-1242

1
Out of stock

13129H

GEAR,OUTPUT TOP,26T

13129-1243

1
Out of stock

13144

SPROCKET-OUTPUT,15T

13144-1042

1
Out of stock

92015

NUT,20MM

92015-1210

1
Out of stock

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

1
Out of stock

92022A

WASHER,TOOTHED,30X42X1.4

92022-1218

1
Out of stock

92022B

WASHER,28.3X42X2.9

92022-1219

1
Out of stock

92022C

WASHER,32.3X42X3

92022-1220

1
Out of stock

92022E

WASHER

92200-1060

1
Out of stock

92022G

WASHER,22.3X35X1.6

92022-212

1
Out of stock

92022H

WASHER,22.3X35X1.2

92022-213

—
Out of stock

92026

SPACER,22X35.5X1.0

92026-1020

1
Out of stock

92027

COLLAR,28X40X20.5

92027-1339

1
Out of stock

92028

BUSHING,2ND GEAR

92028-1112

1
Out of stock

92028A

BUSHING,TOP GEAR

92028-1124

1
Out of stock

92028B

BUSHING,OUTPUT SHAFT

92028-123

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92045

BEARING-BALL,5305NSH2

92045-1028

1
Out of stock

92045A

BEARING-BALL,63/28NC3

92045-1034

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92048

RACE,DRIVE SHAFT BEARING

92048-1012

1
Out of stock

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

480A

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

600

BALL-STEEL,3/16

600A0600

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock
