1983 Kawasaki Eddie Lawson Replica Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

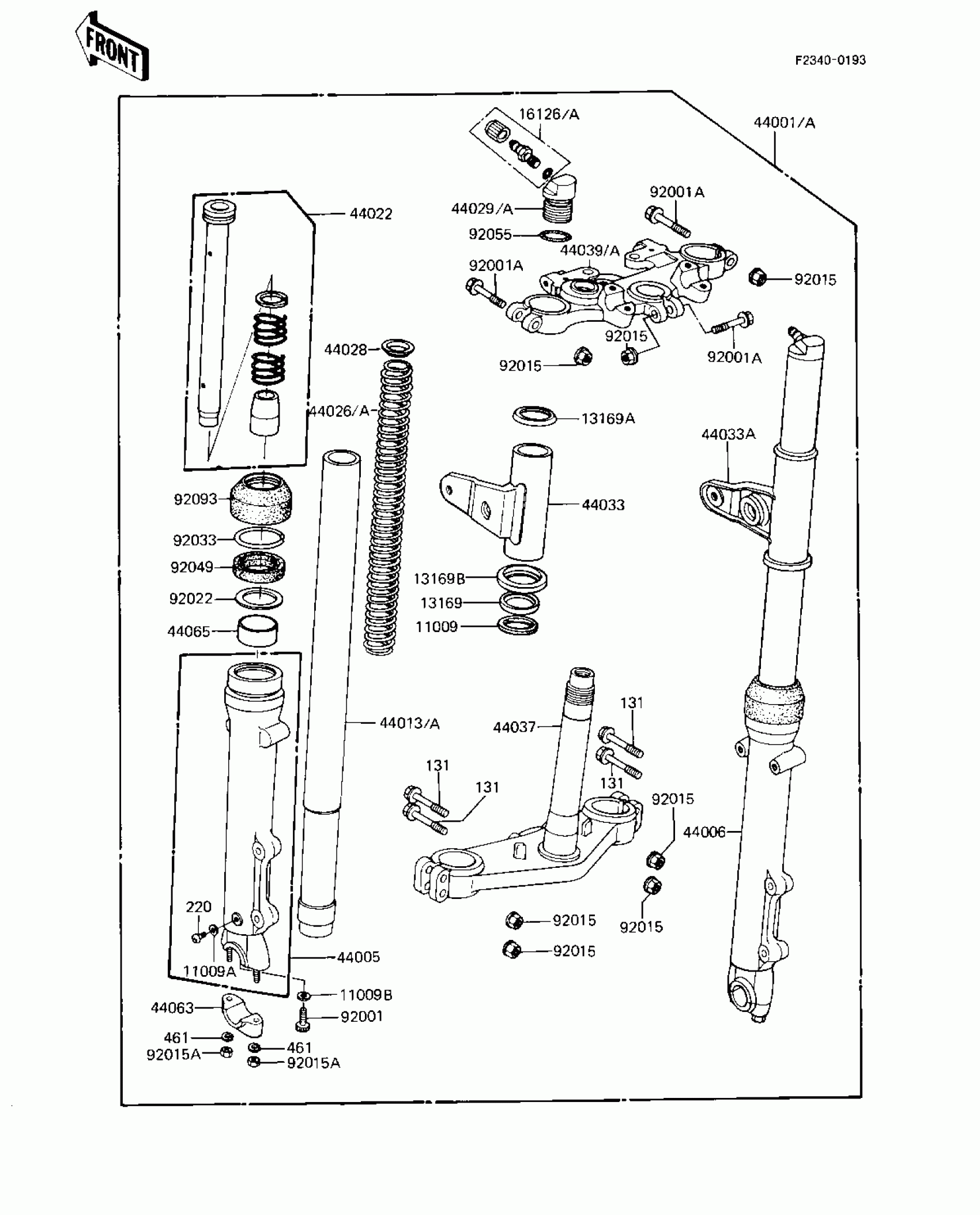

1983 Kawasaki Eddie Lawson Replica Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FORK COVER

11009-1015

1
Out of stock

11009A

GASKET,FORK DRAIN PLUG

44045-002

1
Out of stock

11009B

GASKET

44045-057

1
Out of stock

13169

WASHER,FRK COVER GIDE

13169-1020

1
Out of stock

13169A

PLATE,FORK COVER,UPP

13169-1498

1
Out of stock

13169B

PLATE,FORK COVER,LWR

13169-1499

1
Out of stock

16126A

VALVE,AIR

16126-1052

1
Out of stock

44001A

FORK-FRONT

44001-1468

1
Out of stock

44005

TUBE,LH,FORK OUTER

44005-1094

1
Out of stock

44006

TUBE,RH,FORK OUTER

44006-1094

1
Out of stock

44013A

PIPE-FORK INNER

44013-1123

1
Out of stock

44022

CYLINDER-FORK

44022-1055

1
Out of stock

44026A

SPRING-FRONT FORK

44026-1194

1
Out of stock

44029A

SEAT-FORK SPRING,LH

44029-1044

1
Out of stock

44033

COVER-FORK,LH,F.BLACK

44033-1104

1
Out of stock

44033A

COVER-FORK,RH,F.BLACK

44033-1105

1
Out of stock

44037

HOLDER-FORK UNDER

44037-1072

1
Out of stock

44039A

HOLDER-FORK UPPER

44039-1070

1
Out of stock

44063

HOLDER-FRONT AXLE

44063-1006

1
Out of stock

44065

BUSHING-FRONT FORK,OUTER TUBE

44065-1091

1
Out of stock

92001

BOLT,SOCKET,FORK CYLINDER

44041-040

1
Out of stock

92001A

BOLT,FLANGED,8X57,BLA

92001-1572

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015A

NUT,U,8MM,BLACK

92015-1205

1
Out of stock

92022

WASHER,FORK OUTER PIPE

92022-1262

1
Out of stock

92033

RING-SNAP,FORK

92033-1047

1
Out of stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1295

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1051

1
Out of stock

92093

SEAL

92093-1051

1
Out of stock

131

BOLT-FLANGED,8X55,BLA

131J0855

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

461

WASHER-SPRING,8MM,BLACK

461K0800

1
Out of stock
