1983 Kawasaki Eddie Lawson Replica Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1983 Kawasaki Eddie Lawson Replica, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

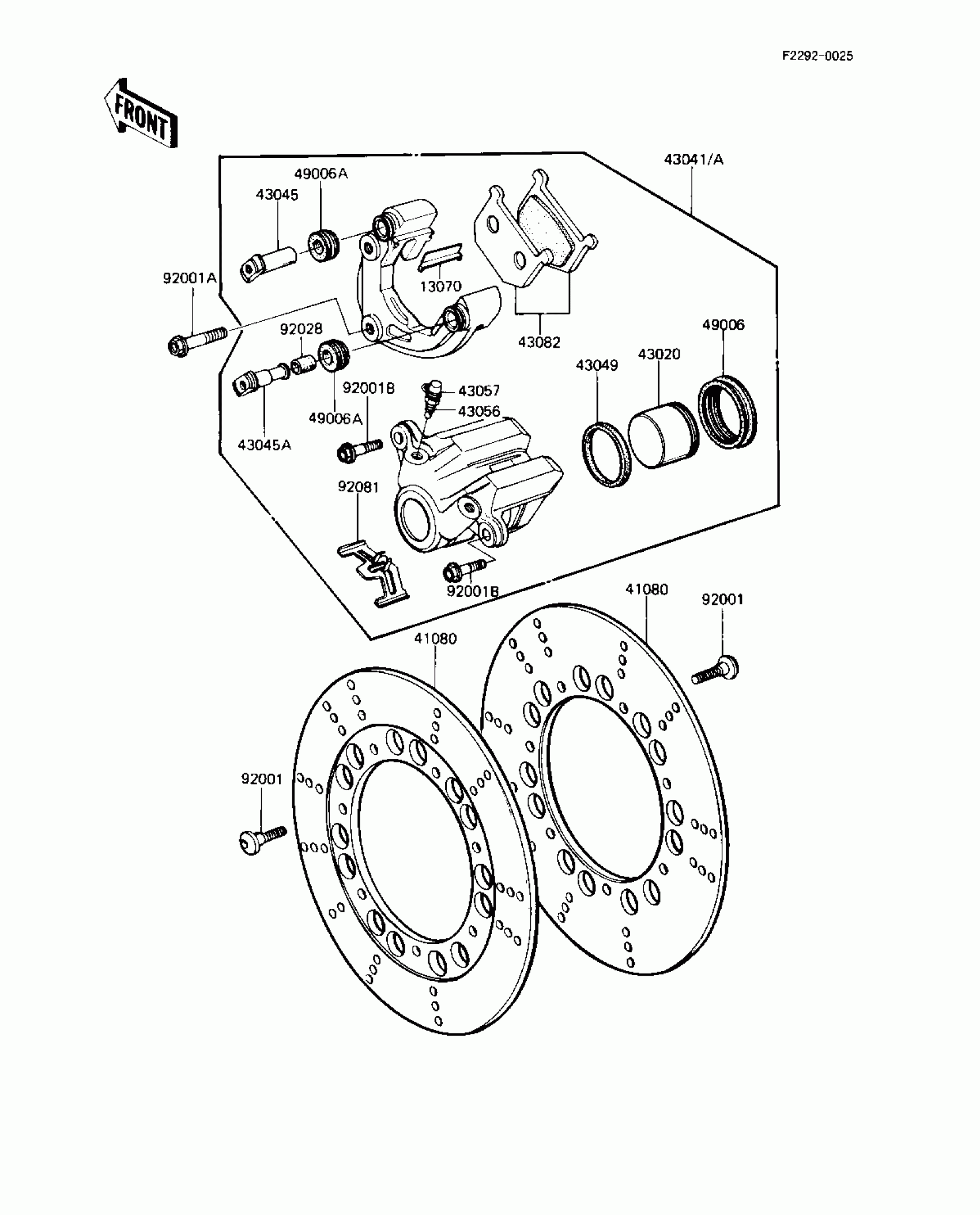

1983 Kawasaki Eddie Lawson Replica Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,PAD

13070-1026

1

$8.02

In stock

41080

DISK,FR

41080-1038

1

$565.13

In stock

43020

PISTON-COMP-BRAKE

43020-1096

1
Out of stock

43041

CALIPER-ASSY,FR,LH

43041-1053

1

$345.11

In stock

43041A

CALIPER-ASSY,FR,RH

43041-1054

1

$430.27

In stock

43045

SHAFT-CALIPER

43045-1007

1

$21.69

In stock

43045A

SHAFT-CALIPER

43045-1008

1

$21.69

In stock

43049

1

$11.01

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1026

1

$66.78

In stock

49006

BOOT,PISTON

49006-1043

1

$10.97

In stock

49006A

BOOT,SHAFT

49006-1044

1

$6.90

In stock

92001

1

$3.72

In stock

92001A

BOLT,FLANGED,10X41,B

92001-1507

1
Out of stock

92001B

1

$6.97

In stock

92028

BUSHING,7.8X11X15.7

92028-1090

1

$6.41

In stock

92081

SPRING,PAD

92081-1229

1

$19.43

In stock
