1988 Yamaha Excel III (EC340M) Steering Gate Diagram

← All diagrams

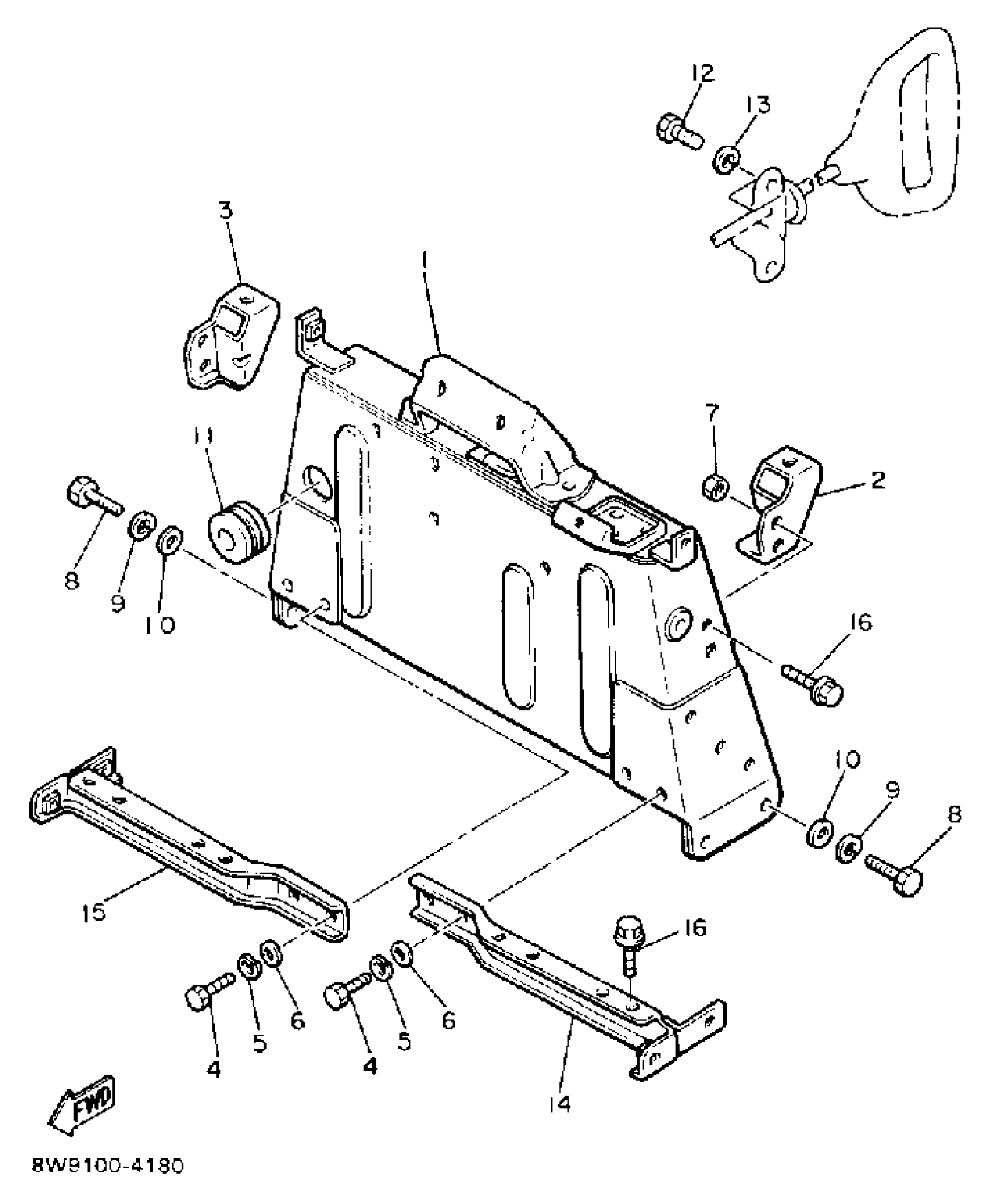

Find the part on the Steering Gate diagram for your 1988 Yamaha Excel III (EC340M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Excel III (EC340M) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8W6-23871-00-00

1
Out of stock

2

STAY, FUEL TANK 1

8W6-24115-00-00

1
Out of stock

3

STAY, FUEL TANK

8W6-24116-00-00

1
Out of stock

4

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

GROMMET (1H3)

90480-28191-00

1

$9.51

In stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BRACKET 13

82A-23898-00-00

1
Out of stock

15

BRACKET 14

82A-23899-00-00

1
Out of stock

16

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock
