1988 Yamaha Excel III (EC340M) Generator Diagram

← All diagrams

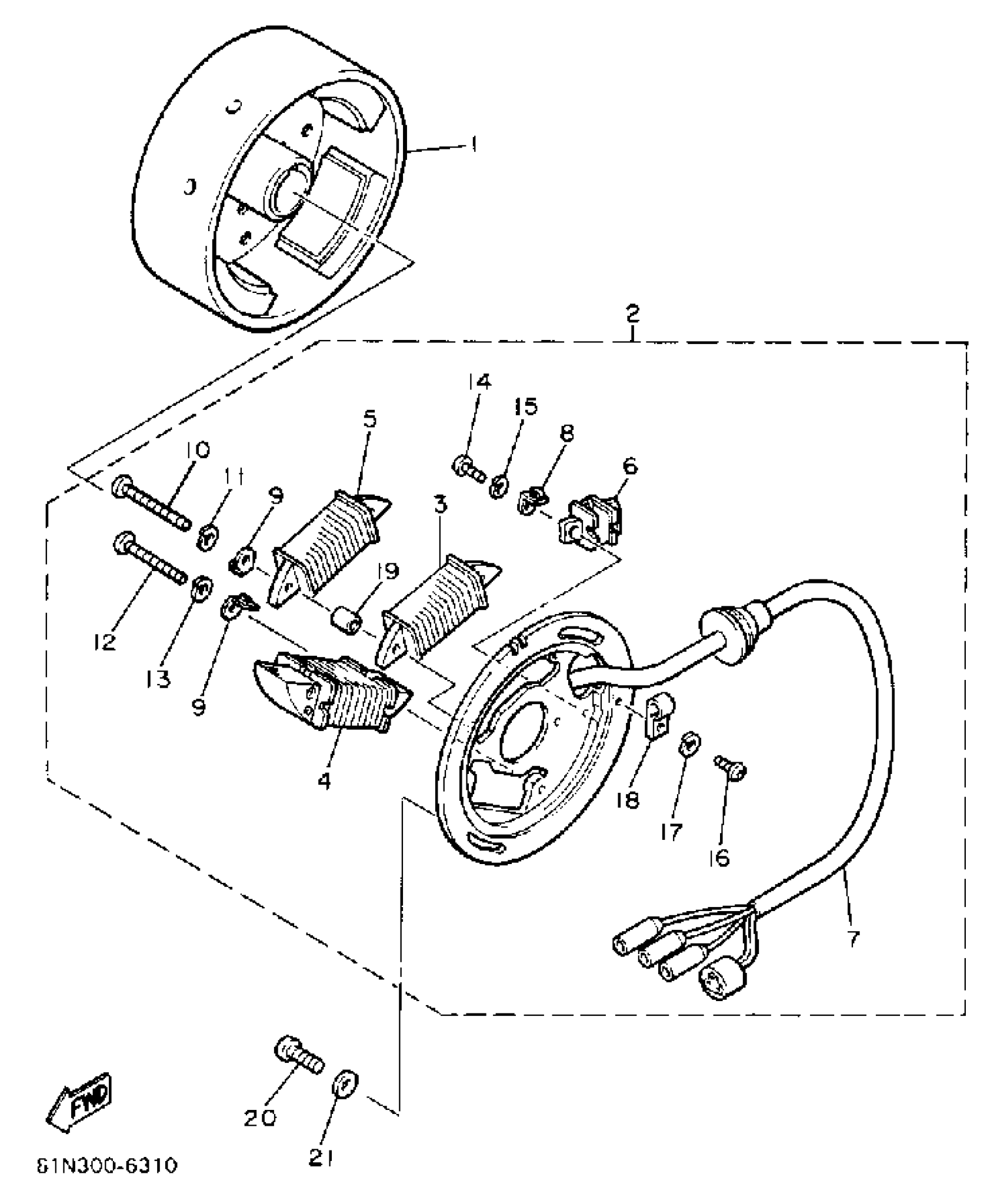

Find the part on the Generator diagram for your 1988 Yamaha Excel III (EC340M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Excel III (EC340M) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASY

85M-85550-00-00

1
Out of stock

2

BASE ASSY

83R-85560-M0-00

1

$269.29

In stock

3

COIL, CHARGE

81L-85520-M0-00

—

$94.88

In stock

4

COIL, LIGHTING 1

81L-81313-M0-00

1

$61.95

In stock

5

COIL, LIGHTING 2

81L-81314-M0-00

—

$95.42

In stock

6

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

7

. CORD ASSEMBLY

81L-8131X-M0-00

1
Out of stock

8

. TERMINAL, EARTH 1

8R4-85568-M0-00

1
Out of stock

9

. TERMINAL, EARTH 2

8R4-85569-M0-00

1
Out of stock

10

SCREW, PAN

98507-05040-00

1

$6.68

In stock

11

SCREW, PAN

98507-05035-00

1

$6.69

In stock

12

SCREW, PAN

98507-05035-00

1

$6.69

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

CLAMP (2T4)

90461-05036-00

—

$4.05

In stock

19

COLLAR (1M1)

90387-06553-00

—
Out of stock

20

SCREW, BIND (705)

98980-06016-00

—
Out of stock

21

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock
